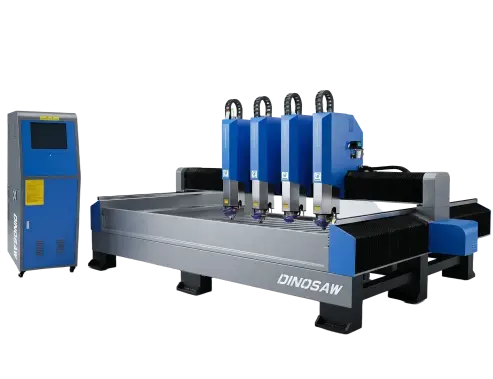

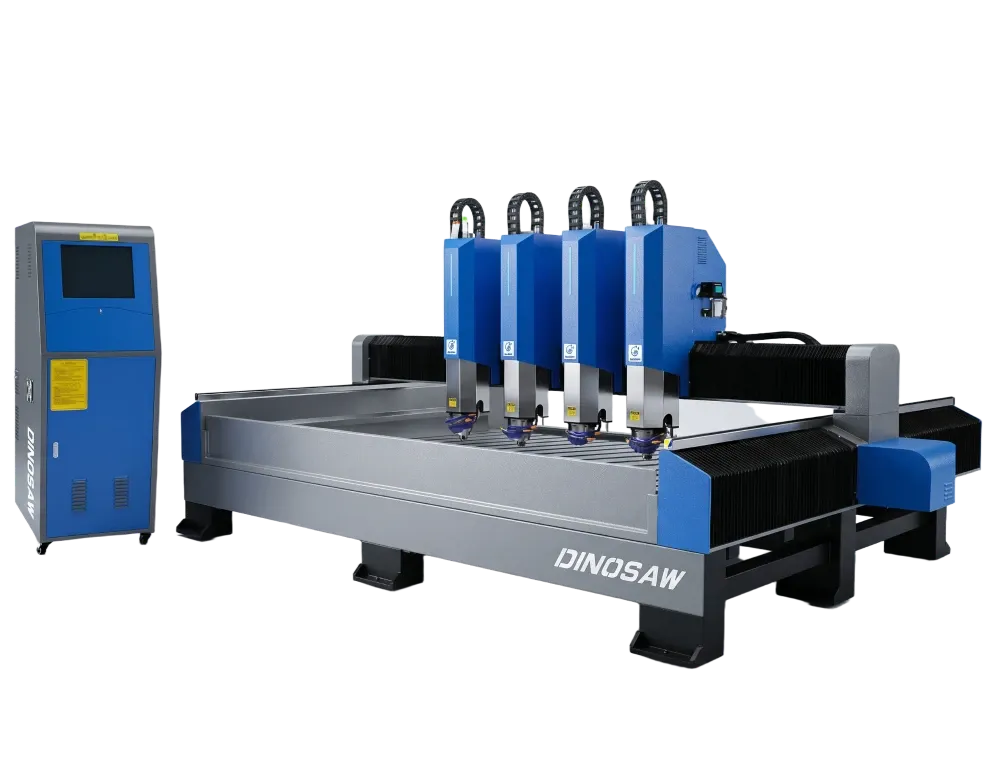

CNC Stone Engraving Machine for 3D Relief & Monuments
ZDDK-3015/1325
The Dinosaw CNC stone engraving machine utilizes a stress-relieved heavy-duty frame to deliver 10-year precision retention during 24/7 industrial production. This structural stability addresses the common challenges of frame deformation and complex file conversion often found in monument engraving equipment and 3D stone relief machines. By maintaining a repeatable positioning accuracy of ±0.03mm, the system produces sharp-edged results on granite and marble that eliminate the need for manual finishing and reduce specialized labor requirements by 20%.
Thermal Stress Relief: Ten-Year Structural Reliability
The Dinosaw engraving machine bed is constructed from thick-walled steel and subjected to high-temperature annealing followed by natural aging to eliminate internal atomic-level stress. This process prevents the mechanical frame from warping or losing alignment under the constant load of a cnc carving machine. You maintain precise tolerances for high-relief panels and multi-tile projects throughout the decade-long service life of the equipment.
High-Rigidity Spindle: High-Quality Edge Definition
The Dinosaw engraving system features a high-torque, water-cooled spindle with a verified runout of less than 0.005mm. This rigidity suppresses the micro-vibrations that typically cause edge-chipping in brittle materials. You achieve sharp vertical walls and flat bottoms directly from the tool bit, significantly increasing the output quality of 3D stone relief machines while removing the labor hours spent on secondary touch-ups.
Direct CAD/CAM Integration: Efficient Production Workflow
The industrial controller of Dinosaw stone router provides native support for AutoCAD (DXF), Artcam, and Type3 vector files, utilizing look-ahead algorithms to optimize toolpaths for stone-specific densities. This digital workflow allows designers to send files directly to the factory floor, where a general operator can manage the setup and start-up sequence. You reduce the production bottleneck caused by the scarcity of specialized CNC programmers.
Full-Sealed Protection: Triple-Component Lifespan
All linear rails and ball screws in the Dinosaw marble CNC router are protected by nano-grade flexible bellows for 360° physical isolation from abrasive stone dust and water spray. Combined with a programmable automated lubrication system, this configuration triples the lifespan of high-precision transmission components compared to unprotected machines. You minimize unplanned downtime and lower long-term maintenance expenditures.
Compatible Materials & Products
Granite to Sandstone: Memorial, Art & Architectural Applications
Granite Headstone Engraving with Zero-Chipping Performance
 |
 |
 |
In the monument workshops of the USA, fabricators often struggle with hard quartz veins in black granite that cause standard diamond bits to "chatter" or bounce. This vibration leads to jagged lettering and micro-fractures that require hours of manual correction to reach a professional finish. The DINOSAW CNC stone engraving machine resolves this through an annealed, heavy-duty frame that acts as a vibration anchor, suppressing the mechanical resonance that typically causes edge-chipping in hard materials. This monument engraving equipment utilizes a high-torque spindle with a verified runout of less than 0.005mm. When executing deep-relief lettering at a feed rate of 2,500 mm/min, the system maintains its path without "climbing" or edge-fracturing, even at a carving depth of 15mm. This hardware-software synergy is also applicable to the high-density granite headstones commonly processed in Poland. By delivering sharp, clean edges directly from the machine, our clients have reduced their manual "cleanup" labor by over 80%. This consistency allows shops to standardize their production timelines for premium orders, ensuring that every headstone meets the highest aesthetic standards without the need for secondary manual repairs. |
High-Detail 3D Marble Relief Panels for Interior Decor
 |
 |
 |
High-end interior projects in Italy frequently utilize $12mm$ thin marble slabs, which are notoriously difficult to process due to their extreme brittleness at the edges. When using a standard marble CNC router, the Z-axis often lacks the sensitivity to handle rapid depth transitions, resulting in "blowouts" or visible stepping marks on complex floral patterns. To overcome this, DINOSAW integrates an industrial controller with advanced look-ahead algorithms that smooth out motion to keep cutting pressure constant on fragile materials. Functioning as a precision 3D stone relief machine, the system executes 3D-dynamic interpolation at a surfacing speed of 4,000 mm/min. The ±0.03mm positioning accuracy ensures that even the most delicate $12mm$ floral tips remain intact without surface scarring. This technical precision is equally effective for the detailed marble sculptures produced in Turkey. The immediate commercial impact is a 70\% reduction in manual sanding and polishing time. By eliminating the risk of edge-blowouts, fabricators can confidently produce thinner, more intricate panels that command higher market prices, while one operator can easily manage multiple units to increase total factory output. |
Seamless Architectural Limestone Wall Panels with Precise Alignment
 |
 |
 |
For large-scale architectural features in France, the primary technical hurdle is "drift" during the production of 50-tile feature walls. Limestone is porous and easy to cut, but if the machine’s bed has even a hint of structural warping, a 0.5mm error on one tile will make the entire pattern misaligned. Our solution is a bed that has undergone a rigorous high-temperature annealing process to remove all internal physical stress, ensuring 10-year precision retention. While running a large decorative panel project at 5,000 mm/min, the machine maintains a perfectly uniform carving depth across every slab. This structural stability ensures that whether you are cutting the first tile or the hundredth, the alignment remains pixel-perfect. This degree of accuracy is also essential for limestone cladding projects in the UK. By ensuring a seamless "puzzle fit" directly from the machine, our clients have successfully eliminated the typical 15% rejection rate caused by misaligned architectural tiles. This allows for a much faster installation process on-site and enables factories to bid on complex commercial contracts that require zero room for error. |
Durable Sandstone Railing Production with Dust-Protected Precision
 |
 |
 |
Factories in Australia that specialize in sandstone railings must manage a constant "sandpaper effect," where fine, abrasive grit destroys standard machine bearings. Furthermore, sandstone’s layered structure can lead to delamination if the cutting pressure is not strictly controlled. The DINOSAW stone carving machine is engineered as a "fortress" against this grit, using 360° nano-grade flexible bellows to isolate the linear rails and ball screws from abrasive dust. The system mills intricate railing spindles and balustrades at a stable speed of 3,000 mm/min with an automated lubrication system that flushes the transmission parts in real-time. This protects the ±0.03mm accuracy from dust-induced wear, a technical requirement that is also vital for the sandstone carving industry in India. By tripling the lifespan of critical transmission components compared to unprotected equipment, we have significantly lowered the long-term maintenance costs for our clients. This durability enables high-volume "lights-out" shifts, where the machine continues to produce high-precision ornamental work without the risk of precision drift or unplanned downtime. |
▶ DINOSAW DK-Series CNC Stone Engraving Machine: High-Efficiency Relief Production
▶
The DINOSAW DK-Series CNC Stone Engraving Machine is featured here at the facility of a Top-3 regional architectural stone supplier. This client currently operates a fleet of 3 DINOSAW units, achieving a stabilized daily output of 1.2 to 1.5 m² of high-detail 3D relief per 8-hour shift. The deployment of multiple DINOSAW machines has allowed this industry leader to standardize their production quality while meeting the high-volume demands of global commercial projects.
In this video, the cnc engraving equipment is processing 12mm marble to produce custom high-relief wall panels for luxury hospitality interiors. To maintain precision on fragile materials, the machine operates at a consistent feed rate of 3,500 mm/min. According to real-time system monitoring, the spindle runout is strictly kept under 0.005 mm, with a repeatable positioning accuracy of ±0.03 mm. These hardcore technical parameters ensure that even at high speeds, the depth of the 12mm relief remains uniform without compromising the structural integrity of the stone.
By combining a stress-relieved heavy-duty frame with an anti-vibration spindle algorithm, DINOSAW has effectively eliminated the edge-chipping and vibration issues typically associated with high-speed marble CNC routers. This causal logic—superior hardware rigidity leading to precision execution—results in sharp-edged carving that requires zero manual secondary finishing. As a result, the client has successfully reduced their expenditure on specialized artisanal labor by 20%, shifting their factory focus toward high-precision automated production.
Memorial Manufacturing
Eliminating 92% Defects in Granite Monument Production
Italian manufacturer faced 45% scrap rates from manual carving inconsistencies. DINOSAW CNC with 6mm diamond tools achieved 0.1mm font consistency across multilingual epitaphs, increasing daily output from 3 to 15 pieces while eliminating customer rejections.
Architectural Projects
Precision Facade Carving for 8,000m² Limestone Project
Dubai firm needed arabesque patterns on limestone facades. 2000×3000mm worktable with automatic tool changer maintained 0.05mm variance throughout 4-month production, ensuring geometric consistency across the entire building exterior.
Specs and options
Specifications customizable upon request.
| Product Model | ZDDK-1318 | ZDDK-1325 | ZDDK-1825 | ZDDK-2025 | ZDDK-2030 |
|---|---|---|---|---|---|
| Platform Size /mm | 1300×1800 | 1300×2500 | 1800×2500 | 2000×2500 | 2000×3000 |
| Feeding Height /mm | 380/430/450/530/600 | ||||
| Idle Speed /(m/min) | 40 | ||||
| Processing Speed /(m/min) | 35 | ||||
| Spindle Power | 7.5kW Variable - frequency Water - cooled Motor | ||||
| Spindle Speed /(rpm/min) | 6000 or 24000 | ||||
| Working Voltage | AC380V / 50Hz | ||||
| Engraving Tools /mm | 3.175/4/6/12.7 | ||||
| File Format | G - code / HPGL | ||||
| Positioning Accuracy /mm | 0.05 | ||||
| Repeat Positioning Accuracy /mm | 0.01 | ||||
| Control System | Nc Studio System | ||||
Advanced engineering meets practical design excellence.
Precision. Power. Performance.
Resume Carving After Power Outage
Brake motor system prevents tool dropping during power failures.
Enhanced Structural Stability
Triple-reinforced beam and galvanized components
Reduced Maintenance Requirements
Oil-immersed guide rails and stainless steel water tank minimize maintenance needs
FAQs
Common Questions About CNC Stone Engraving Machine
What types of stone can this CNC engraving machine carving?
This CNC stone engraving machine is used for engraving and carving a wide range of stone materials commonly used in decorative and architectural projects.
Materials you would typically process
Marble
Granite
Limestone
Travertine
Artificial stone
Quartz-based stone
These materials are usually processed at the finishing stage, where surface detail matters more than bulk material removal.
What to consider before deciding
Confirm that your work focuses on engraving or carving finished stone surfaces rather than primary cutting.
What kinds of finished stone products is this machine commonly used to make?
This machine is commonly used to produce finished stone products where visual detail and shape definition are important.
Typical finished products
Stone signs and lettering panels
Engraved logos and decorative patterns
Relief-carved wall panels
Memorial stones and inscriptions
Decorative architectural elements
These products rely on controlled tool paths and consistent carving depth.
What to consider before deciding
Check whether your products are decorative or presentation-facing, rather than purely structural.
What engraving and carving work can this machine handle, and how do 3-axis, 4-axis, and 5-axis configurations differ?
This machine can handle a wide range of engraving and carving work, with capability depending on the axis configuration you choose.
How different axis setups are typically used
3-axis
Used for flat surface engraving, text carving, and basic relief work on stone panels.4-axis
Adds rotational capability, useful for engraving cylindrical or side surfaces, such as columns or rounded stone parts.5-axis
Allows the tool to tilt and approach the stone from multiple angles, suitable for complex shapes, curved surfaces, and multi-face carving without repositioning.
More axes expand the range of shapes you can engrave and reduce the need to re-clamp the workpiece.
What to consider before deciding
Choose the axis configuration based on the geometry of your finished products, not just on maximum machine capability.
Can this machine handle fine details and small engraving features?
Yes. This machine is commonly used for engraving work where details and line clarity matter.
Typical detailed work
Fine text and lettering
Logos with thin lines
Decorative patterns with layered depth
These details are usually required on finished stone surfaces that will be viewed up close, such as signs, panels, or memorial products.
What to consider before deciding
Think about whether your products require controlled, repeatable detail rather than rough surface carving.
What type of workshop usually uses this CNC stone engraving machine?
This type of machine is commonly found in small to medium stone fabrication workshops focused on decorative or finishing work.
You often see it in
Stone engraving and signage workshops
Memorial and monument factories
Architectural decoration studios
Fabricators producing customized stone elements
These workshops typically combine engraving with other stone processing steps.
What to consider before deciding
Match the machine to your workshop’s role—finishing and detailing rather than primary stone cutting.
What kinds of engraving work is this machine not suitable for?
This machine is not designed for heavy material removal or rough shaping.
It is not suitable for
Large-scale rough sculpting
Freehand artistic carving without digital files
Primary cutting or slab sizing
Very deep, high-volume material removal
Those tasks are usually handled by different types of stone machinery.
What to consider before deciding
Be clear about whether engraving is a finishing process or a primary shaping step in your workflow.
Who should consider this CNC stone engraving machine, and who should not?
This machine is a good fit if your work involves digital designs, repeatable engraving, and decorative stone products.
You should consider it if
You engrave text, patterns, or reliefs on stone
Your products require consistent results across batches
You already work with CAD/CAM design files
It may not be a good fit if
Your work is mainly rough cutting or shaping
You rely on manual artistic carving
You do not use digital design workflows
What to consider before deciding
Choose the machine based on how engraving fits into your overall production process.
How is this CNC stone engraving machine different from a laser engraving machine?
This CNC stone engraving machine and a laser engraving machine are used for very different types of engraving work, even though they are often mentioned together.
How the engraving method is different
A CNC stone engraving machine uses physical cutting tools to carve into the stone surface.
A laser engraving machine uses a laser beam to mark or etch the surface.
Because CNC engraving removes material mechanically, it can create real depth and relief. Laser engraving mainly affects the surface layer.
What this means for finished stone products
CNC engraving is used for deep lettering, relief carving, and three-dimensional patterns on stone.
Laser engraving is typically used for surface marking, fine text, or shallow decorative effects.
For products like stone signs, memorial inscriptions, relief panels, and architectural elements, CNC engraving is the common choice because the engraving remains visible and durable over time.
Material suitability is also different
Laser engraving works best on materials designed for surface marking. CNC engraving is used on natural stone and engineered stone where physical carving is required.
What to consider before deciding
If your finished products require depth, texture, or long-term durability on stone surfaces, a CNC stone engraving machine is the more suitable option. If your work only requires surface marking or light decoration, a laser machine may be sufficient.
Certifications & Standards
Precision. Power. Performance.
CE Certification
100+ Tech Patents
ISO 9001:2015
DINOSAW product lines fully comply with international engineering standards, passing rigorous third-party quality certifications to ensure exceptional performance and durability for all industrial equipment operating in high-load environments.
Expertise & Applications
75+
Countries Served Worldwide
20+
Industry machinery expertise
DINOSAW delivers lifecycle quality traceability and technical support for machinery equipment and diamond tools, covering cutting, drilling, engraving, polishing, and processing requirements for precision machining across industries.
Our products serve traditional industries (mining, stone processing, building materials), high-precision manufacturing (quartz glass, semiconductor), advanced materials (graphite, carbon fiber composites), and specialized applications (nuclear decommissioning, railway construction machinery).
Complete Production Solutions & Equipments
Choose equipment combinations for your product needs to establish efficient automated production lines and maximize profitability.
Ready to revolutionize your stone carving?
Transform precision, speed and quality with DINOSAW CNC stone engraving technology
Contact DINOSAW
Connect with DINOSAW experts to find the perfect processing solution for your specific material and production needs.
DINOSAW: Trustworthy CNC Engraving Machine Manufacturer
Discover how DINOSAW can accelerate your projects. Our tailored product line, cutting-edge R&D, robust manufacturing, end-to-end service, global support, and industry certifications are at your service.
