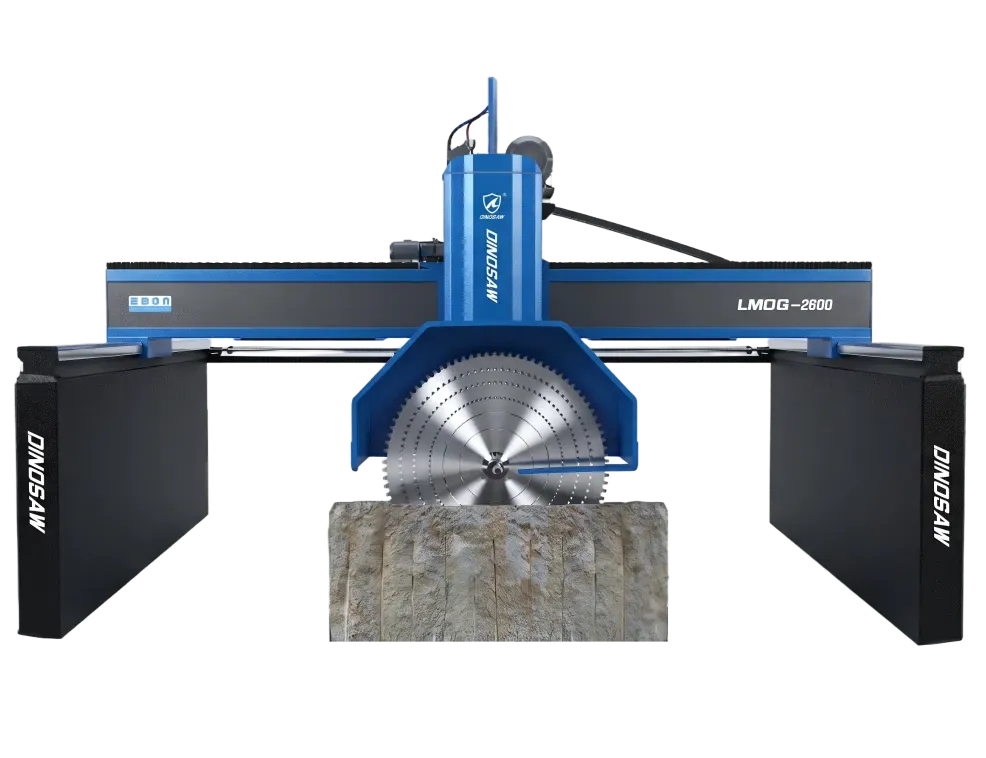

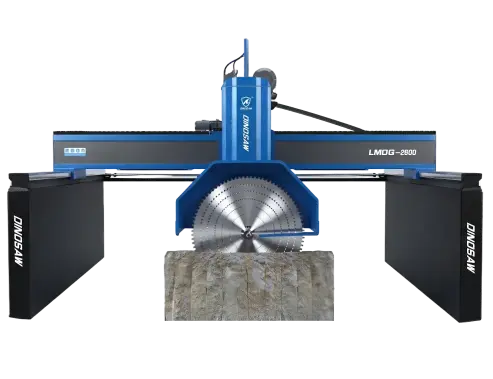

Heavy-Duty Stone Block Cutting Machine: Multi-Blade for Maximum Slab Yield
LMDQ-2200/2500/2800/3000
The DINOSAW Heavy Duty Stone Block Cutting Machine is a high-capacity multi-blade circular saw designed for the primary slicing of natural stone blocks. Engineered with a reinforced bridge-type structure, this stone block cutter utilizes synchronized diamond blades to transform granite, limestone, and sandstone blocks into precise slabs or strips with industrial speed. It is the definitive solution for high-volume production lines requiring continuous heavy-duty processing in demanding 24/7 environments.
Maximizing Throughput with Precision Slicing
32-Blade Synchronized Cutting: The integrated multi-slice system supports up to 32 parallel blades, delivering a 30% increase in productivity compared to standard single-blade machinery.
±0.5mm Slicing Accuracy: Utilizing a high-precision beam movement system and automated PLC current monitoring, the machine locks thickness tolerance to within ±0.5mm, effectively slashing secondary polishing costs by 20%.
15% Energy Optimization: Flexible 45kW, 55kW, and 75kW motor configurations allow you to match power output to specific material hardness, reducing energy consumption per square meter by over 15% compared to traditional setups.
Dinosaw Technical Dominance in Block Slicing Engineering
As an established leader in stone machinery engineering, Dinosaw integrates proprietary oil-immersed guide rail technology into every bridge block cutter. This fully-sealed lubrication system extends the precision lifespan by 3x in high-dust environments, eliminating the risk of "wavy cuts" common in dry-rail systems. Our hardware features a 42CrMo alloy steel spindle and a reinforced monoblock gantry with 25% higher structural rigidity than competitors. This stability allows for the use of thinner blade cores, significantly increasing total slab yield and turning raw material waste into pure bottom-line profit.
Compatible Materials & Products
▶ High-Volume Block Slicing: Dinosaw Heavy-Duty Block Cutter Delivers Sub-millimeter Precision
▶
This footage features the Dinosaw Heavy-Duty Stone Block Cutting Machine (LMDQ-2500) mastering a massive granite block with industrial-grade efficiency. Engineered with a reinforced monoblock gantry, the machine maintains exceptional stability even under the heavy load of synchronized multiblade cutting.
The video highlights the Advanced PLC Control Panel, showcasing real-time parameter management for cutting depths (up to 600mm) and feed rates. Powered by Dinosaw’s Flexible 45-75kW Motor Options, the system utilizes intelligent current feedback to optimize energy consumption per square meter while locking slab thickness tolerance to within ±0.5mm. This blend of raw mechanical power and smart automation makes the Dinosaw Heavy-Duty Block Cutter the ultimate choice for fabricators looking to maximize yield and minimize operational overhead.
Granite High-Efficiency Slicing: 75kW Power Output for 15% Faster Production
 |
 |
 |
| Raw granite blocks from quarries require efficient subdivision into manageable sizes for downstream processing. |
- In the granite business, weak power and idle time directly drain your profits.
- Heavy-Duty Stone Block Cutting Machine: Our equipment offers a flexible 75kW brand motor configuration, ensuring that even with 30 blades synchronized, your cutting speed remains 15% faster than standard industry models.
- The Result: By utilizing intelligent current feedback to maintain peak torque, this Multiblade Cutting Machine protects your blades while maximizing the square-meter output per shift.
Marble Profit Maximization: ±0.5mm Accuracy Yielding 2 Extra Slabs Per Block
 |
 |
 |
| Large marble blocks require efficient conversion into multiple slabs of predetermined thickness for various applications. |
Every millimeter of kerf waste on high-value marble is a significant financial loss.
Multiblade Cutting Machine: Engineered for extreme stability, this machine locks thickness tolerance to within ±0.5mm, delivering mirror-flat slabs every time.
The Result: The rigid architecture of our Heavy-Duty Stone Block Cutting Machine allows the use of thinner blade cores, enabling you to yield 1-2 extra slabs per block while slashing secondary grinding costs by 20%.
High-Volume Limestone Processing: 3x Precision Lifespan for Non-Stop Operation
 |
 |
 |
| Limestone blocks from quarries need systematic cutting to create uniform pieces for construction and architectural use. |
Abrasive dust in limestone processing often leads to rapid machine wear and "tilted" cuts within months of operation.
Stone Block Cutting Machine: Dinosaw ensures that your machine maintains its peak accuracy 3 times longer than standard competitors.
The Result: By utilizing a hermetically protected internal drive system, our Heavy-Duty Stone Block Cutting Machine eliminates "belly-shaped" slab errors, ensuring consistent, export-grade quality for years.
Sandstone Quality Control: 20% Enhanced Rigidity for Zero Surface Ripples
 |
 |
 |
| Sandstone quarry blocks require efficient processing into standardized slabs for commercial construction projects. |
Vibrations during sandstone cutting cause unsightly "waves," forcing expensive and time-consuming manual rework.
Heavy-Duty Stone Block Cutting Machine: Our machine is engineered with a chassis 20% heavier than industry averages, effectively absorbing all high-frequency resonance.
The Result: This Multiblade Cutting Machine produces slabs with perfectly crisp textures and zero surface ripples, making them ready for immediate high-end installation without additional calibration.
Hard Quartzite Slicing: Flexible 45-75kW Power Options Reducing Energy Bills by 15%
 |
 |
 |
| Dense quartzite blocks demand robust cutting systems for efficient subdivision into workable sizes. |
Processing the world's hardest stones shouldn't force you to pay the world's highest electricity bills.
Multiblade Cutting Machine: Dinosaw allows you to match power to material hardness with 45kW, 55kW, and 75kW motor options.
The Result: Paired with our adaptive feed logic, this Heavy-Duty Stone Block Cutting Machine reduces energy consumption per square meter by over 15%, significantly lowering your long-term operational costs.
Commercial Kitchen Projects
Precision Cutting for Flawless Installations
High-end restaurant chain reduced installation delays by 40% using our precision cutting technology. Consistent 2cm thickness eliminated field modifications while servo drive efficiency reduced operating costs by 30% during peak periods.
Project completion accelerated from 6 weeks to 4 weeks while maintaining premium quality standards.
Architectural Stone Supply
Scaling Production for Major Construction
Construction material supplier met aggressive deadlines by processing up to 450㎡ daily with our multi-blade system for 1.5cm slabs. Cast bridge stability maintained quality standards across extended continuous operation for luxury hotel facade installation.
Specs and options
Specifications customizable upon request.
| Model | Unit | LMDQ-2200 | LMDQ-2500 | LMDQ-2800 | LMDQ-3000 |
|---|---|---|---|---|---|
| Max. diameter of blade | mm | Φ2200 | Φ2500 | Φ2800 | Φ3000 |
| Max. No. of blades | pc | 9 | 9 | 1(5) | 1(5) |
| Recommended Blade Combination | mm | Φ2200 Φ2000 Φ1800 Φ1600 Φ1400 Φ1200 Φ1000 Φ800 Φ600 | Φ2500 Φ2200 Φ2000 Φ1800 Φ1600 Φ1400 Φ1200 Φ1000 Φ800 | Φ2800 (Φ2800 Φ2500 Φ2000 Φ1500 Φ1000) | Φ3000 (Φ3000 Φ2500 Φ2000 Φ1500 Φ1000) |
| Main motor power | KW | 45 | 45/55 | 55 | 75 |
| Max. Cutting size (L x W x H) | mm | 4000 x 2200 x 950 | 3700 x 2200 x 1100 | 3500 x 2200 x 1300 | 3500 x 2200 x 1350 |
| Overall dimensions (L x W x H) | mm | 7500 x 4000 x 7000 | 7500 x 4000 x 7000 | 7500 x 4000 x 7000 | 8000 x 4000 x 7000 |
| Water consumption | m³/h | 15 | 15 | 15 | 15 |
| Approximate Weight | t | 11 | 11 | 12 | 13 |
Professional stone block cutting equipment delivering consistent processing with multi-blade efficiency.
Block Processing Ready. Precision Cutting. Proven Results.
High-Speed Multi-Blade Cutting
55kW main motor, heavy-duty spindle and multi-blade system achieve 120㎡/h cutting with high efficiency.
±0.2mm Cutting Precision
Hydraulic lift provides ±0.2mm precision, gear rack and PLC system ensures consistent slabs.
40% Longer Equipment Lifespan
Cast bridge structure with large-diameter guide columns and reinforced beams ensures durability.
20% Energy Savings
Permanent magnet motor technology optimizes power consumption while maintaining cutting performance.
Front & Rear Loading Convenience
Front and rear loading options with conveyor cart configuration streamline material handling.
Motor Overload Protection
Flexible coupling with belt protection prevents motor damage from excessive cutting loads.
Maintenance Reduction
Automatic lubrication system reduces manual maintenance and equipment failures significantly.
FAQs
Common Questions About Heavy-Duty Stone Block Cutting Machines
What is this machine used to cut?
This machine is used to cut large natural stone blocks before they are processed into slabs or further cut by downstream machines.
Typical materials you cut on this machine
Granite blocks
Marble blocks
Bluestone and limestone blocks
Other large natural stone blocks
It is mainly used for straight cutting and block sizing, preparing stone blocks for frame saws, multi-blade saws, or polishing lines.
What to confirm before deciding
Confirm your block material types and whether you handle large, heavy blocks rather than small finished products.
What kind of block cutting machine is this?
This is a bridge-type stone block cutting machine.
What that means in practice
A full bridge spans over the stone block
Cutting force is supported on both sides
The block stays fixed while the machine cuts
Compared with single-column or compact block cutters, a bridge-type structure is built for larger blocks, heavier loads, and long continuous cutting.
What to confirm before deciding
Confirm whether your current block cutter struggles with block size, stability, or long cutting cycles.
How is this bridge-type block cutter different from other block cutting machines?
The difference comes mainly from structure and capacity, not small feature details.
Compared with other common block cutters
Versus single-column block cutters: more stable on large blocks
Versus compact or trolley-type machines: much larger cutting range
Versus horizontal blade block cutters: better suited for tall and wide blocks
Bridge-type machines are chosen when block size and long-term stability matter more than compact footprint.
What to confirm before deciding
Look at the type of block cutter you are currently using and where its limits appear in daily production.
What cutting size can this machine handle?
A bridge-type structure allows much larger cutting dimensions than compact block cutting machines.
What this means for your production
You can cut wider and taller stone blocks
Heavy blocks can be processed without frequent repositioning
Long straight cuts remain stable across the full block width
The open bridge span is the key reason this type of machine is used for large-format stone blocks.
What to confirm before deciding
Check your maximum block width, height, and weight against the machine’s cutting dimensions.
Why do factories choose a bridge-type block cutter?
Factories choose bridge-type block cutters because they are more stable, handle larger blocks, and support higher-throughput block cutting.
What you gain in real production
Fewer interruptions during long cuts
Less block handling and repositioning
A more reliable front-end cutting stage for slab production
This makes bridge-type machines suitable when block cutting is a core production step, not an occasional task.
What to confirm before deciding
Confirm whether your current block cutting stage limits overall factory output.
How does this bridge-type block cutter compare with a frame gangsaw?
This bridge-type block cutter and a frame saw serve different roles in block processing.
How the roles differ
A bridge-type block cutter is used for initial block cutting and sizing
A frame saw is used for high-yield slab slicing
With a bridge-type block cutter, you focus on cutting large blocks into manageable sizes or preparing them for downstream slab cutting. A frame saw comes later, when the goal is maximizing slab output from already-sized blocks.
What to confirm before deciding
Confirm whether you need faster block preparation or high-density slab slicing, or whether both machines play different roles in your line.
Can this block cutter run with single or multiple blades?
Yes. This bridge-type block cutter can be configured with a single blade or multiple blades, depending on your production needs.
How different blade setups are used
Single-blade setup
Used for flexible block sizing
Suitable when block dimensions vary
Easier setup and adjustment
Multi-blade setup
Used for higher-throughput block cutting
Allows multiple parallel cuts in one pass
Suitable for standardized block sizes and stable production runs
Because of the bridge-type structure, the machine can support heavier blade loads and maintain stability even with multiple blades installed.
What to confirm before deciding
Confirm whether your blocks are standardized enough to benefit from multi-blade cutting, or whether you need the flexibility of single-blade operation.
What type of factory is this machine best suited for?
This machine is best suited for factories where block cutting is a continuous, high-load operation.
You are a good fit if
You process large natural stone blocks daily
Block cutting is a bottleneck in your production line
You need stable cutting on heavy blocks
It is commonly used in medium-to-large stone factories that handle significant block volumes.
What to confirm before deciding
Assess whether block cutting is a core operation or an occasional task in your factory.
What should you consider for installation and daily operation?
A bridge-type block cutter requires proper planning for space, power, and material handling.
Key points to plan for
Sufficient floor space for large blocks
Stable power supply for heavy-duty cutting
Lifting equipment for block loading
Daily operation focuses on straight cutting and monitoring the cutting process rather than complex setup.
What to confirm before deciding
Confirm available space, power capacity, and block handling equipment in your workshop.
When is this bridge-type block cutter not the right choice?
This machine may not be the right choice if your block cutting needs are limited or highly specialized.
It may not fit your needs if
You only cut small blocks occasionally
Your main goal is maximum slab yield rather than block sizing
A compact or multi-blade solution already meets your requirements
In these cases, other block cutting machines may be more cost-effective.
What to confirm before deciding
Be clear about your actual block cutting workload and where this machine fits in your production flow.
