Quarry Diamond Wire Saw Machine for Marble and Granite Block Extraction

Name: Quarry Diamond Wire Saw Machine for Marble and Granite Block Extraction
Brand: DINOSAW
SKU: KSSJ-M37–M90 / KSSJ-G37–G110
Availability: InStock

KSSJ-M37–M90 / KSSJ-G37–G110

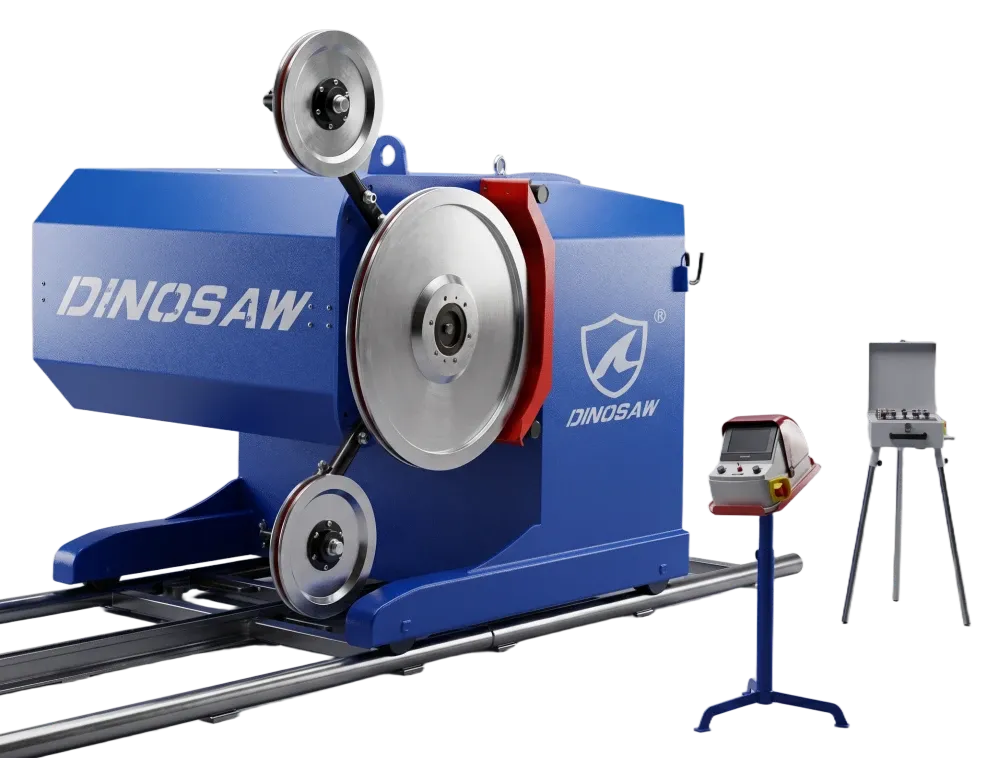

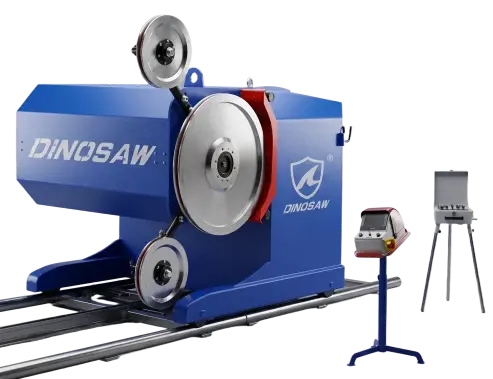

The DINOSAW KSSJ-M/G quarry wire saw machine extracts dimensional blocks from marble and granite quarries with a permanent magnet drive, three-inverter constant-tension control and quarry-proven automatic cutting software. Stand-type configurations cover 37 to 90 kW for marble and 37 to 110 kW for granite on rails; the crawler family KSSJ-37M-E / 55M-E / 75M-E moves, turns and cuts without rail infrastructure under PLC walking control with IoT remote monitoring.

Quarry Wire Saw Applications & Materials

Quarry wire saws extract dimensional blocks from the bench — the cutting stage that decides block value, yield and the economics of everything downstream.

Specs and options

Specifications customizable upon request.

Stand type (rail)	Main motor (kW)	Wire length (m)	Line speed (m/s)	Max cut spacing (mm)
KSSJ-M37 / G37	37	20–80	0–40 / 0–30	—
KSSJ-M45	45	20–100	0–40	—
KSSJ-M55 / G55	55	20–120	0–40 / 0–30	—
KSSJ-M75 / G75	75	20–150	0–50 / 0–30	—
KSSJ-M90 / G90	90	30–160	0–50 / 0–30	—
KSSJ-G110	110	40–180	0–30	—
Crawler	Main/total power (kW)	Max cut spacing (mm)	Head flip	Mobility
KSSJ-37M-E	37 / 40	1750	360°	Rail-free, PLC walking
KSSJ-55M-E	55 / 58	1950	360°	Rail-free, PLC walking
KSSJ-75M-E	75 / 79	2100	360°	Rail-free, PLC walking

The KSSJ-M/G quarry wire saw machine combines a permanent magnet drive, three-inverter constant-tension control and quarry-proven automatic software in stand-type or crawler configurations — cutting marble and granite blocks at the power class the bench demands.

Real Cutting Performance & Key Metrics

Power Range

Marble models run 37–90 kW and granite models 37–110 kW: the power class follows the stone, not the other way around.

Wire Tension Control

Three brand inverters with PLC and real-time current tracking hold wire tension constant through the cut — more efficient cutting and longer wire life.

Permanent Magnet Drive

The permanent magnet motor starts with high pulling torque at low current, wastes less energy, runs cooler, and doubles motor life at the lower working temperature.

Permanent Magnet Drive

The permanent magnet motor delivers high pulling torque from standstill at near-zero rotor current: less energy wasted as heat, a cooler-running motor, and doubled motor life from the lower working temperature — a real advantage on benches where the drive starts and stops under load all shift.

Constant-Torque Frequency Range

Torque stays constant across the whole frequency range, especially at low frequencies where conventional drives sag: the wire keeps pulling hard at low speed, startup under load is easier, and energy draw stays efficient across the cut.

Three-Inverter Tension Control

Three brand inverters with PLC, digital communication and real-time current tracking hold diamond wire tension constant through changing stone resistance: the wire cuts efficiently instead of wandering or overloading, and wire life extends as a direct result.
