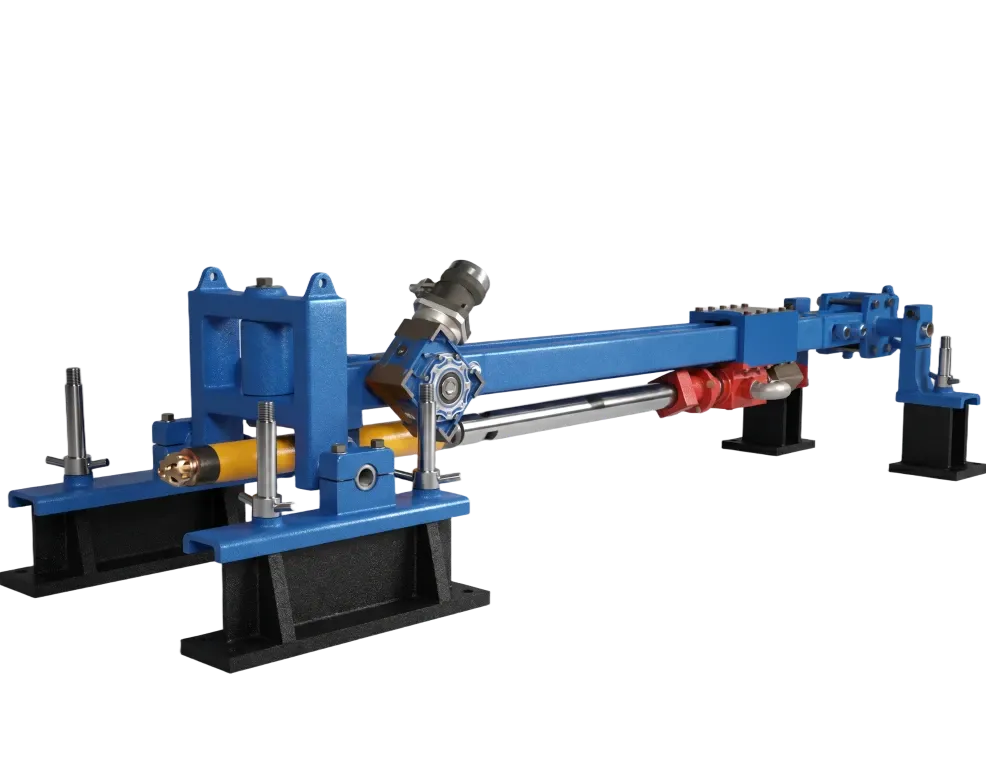

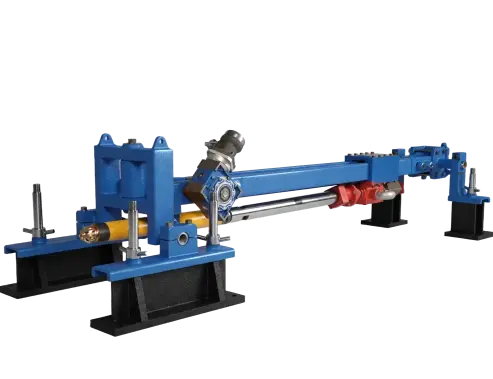

DINOSAW DTH Drilling Machines for Stone Quarrying & Rock Mining

Name: DINOSAW DTH Drilling Machines for Stone Quarrying & Rock Mining
Brand: DINOSAW
SKU: QKZ165-H
Availability: InStock

QKZ165-H

DINOSAW DTH drilling machines deliver 6-8m/h speeds, with hole diameters ranging from 65-165mm and depths up to 40m for stone extraction. Available in pneumatic, electric, or hydraulic power options, these machines excel in quarrying operations across diverse environments with minimal setup requirements. These DTH drillers efficiently extract granite, marble, limestone, sandstone, quartzite, basalt, and slate. Their precision ensures clean separation while reducing material waste in challenging terrains.

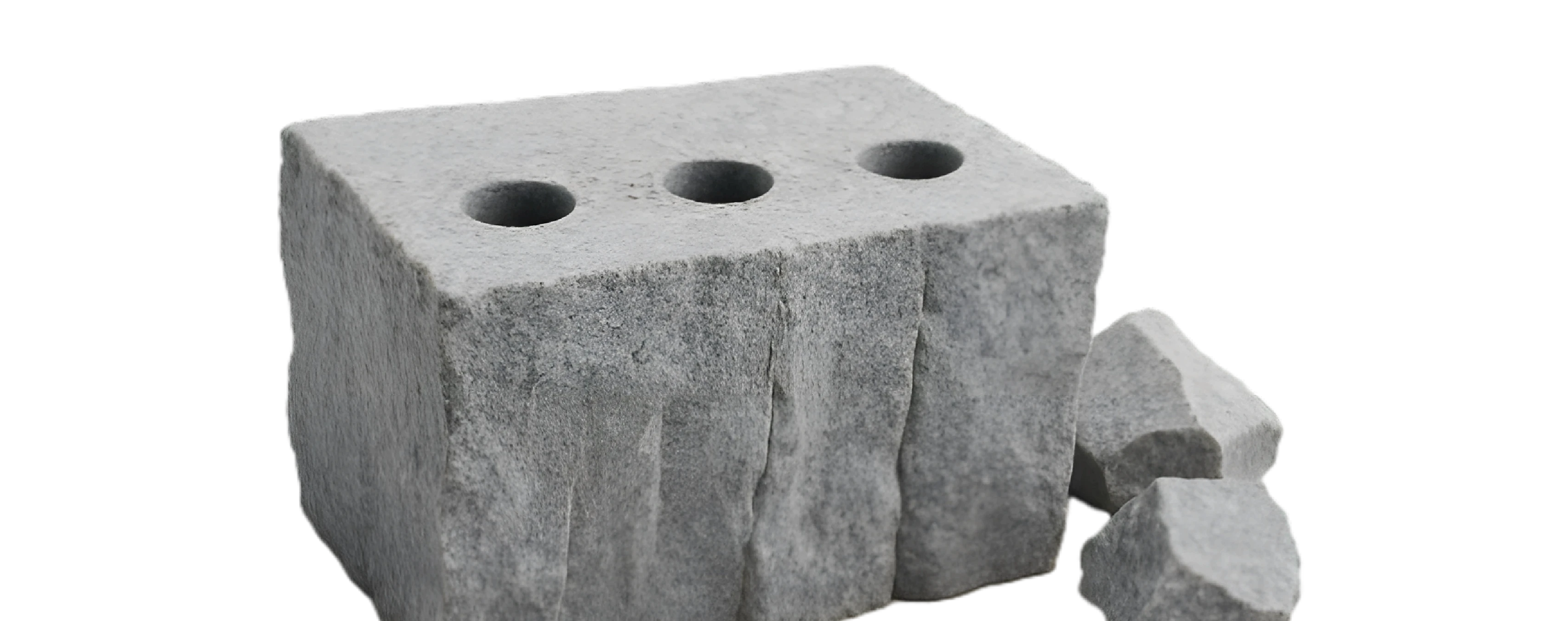

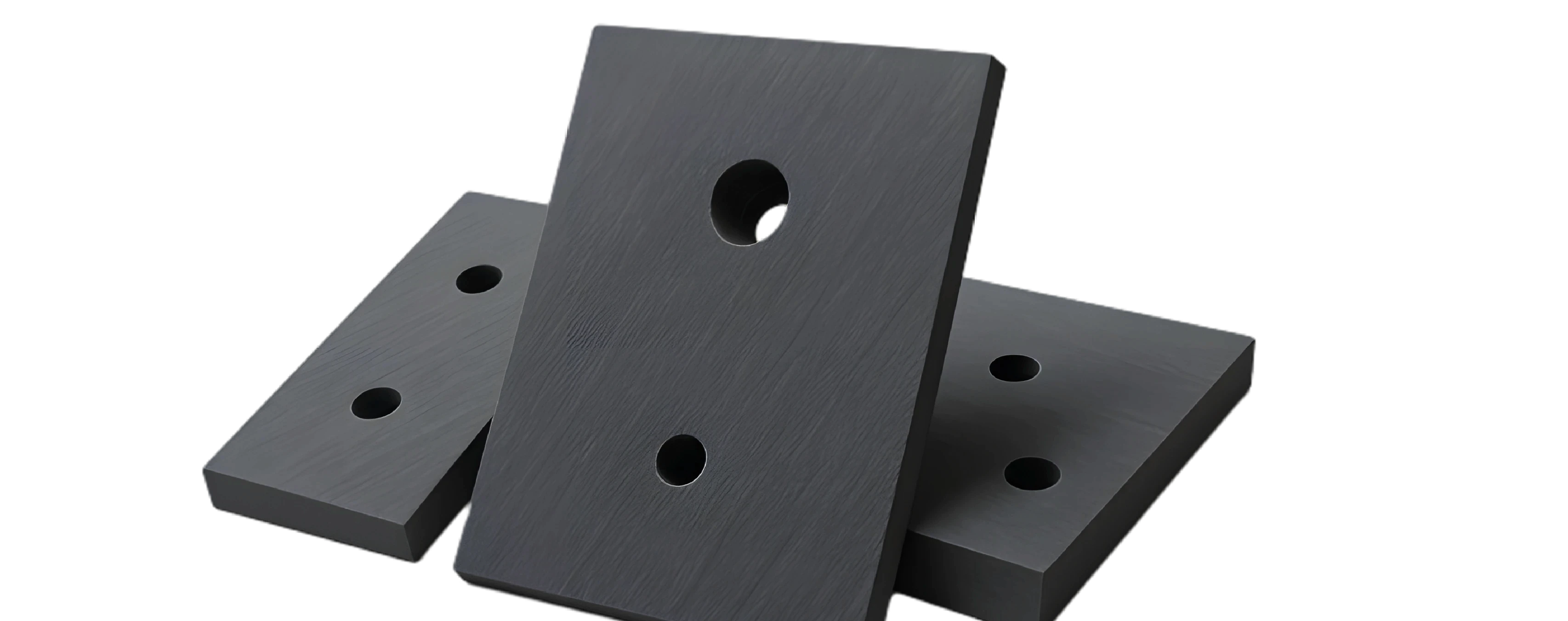

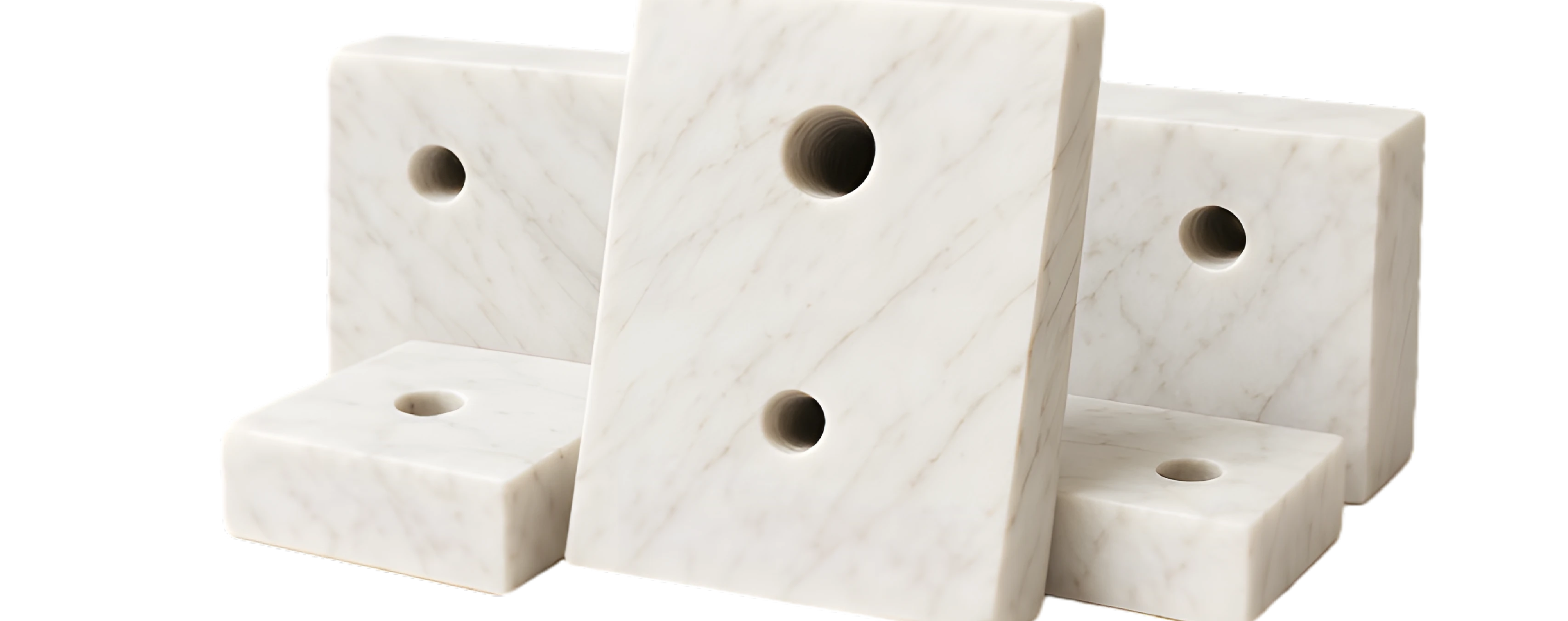

Compatible Materials & Products

DTH Drilling Performance for Multiple Stone Types

Specs and options

Specifications customizable upon request.

Product model	QKZ90 - P	QKZ90 - E	QKZ165 - H
Hole diameter (mm)	Φ65 - 90	Φ65 - 90	Φ90 - 165
Drilling depth (m)	Max.35	Max.40	Max.30
Feed rate (m/h)	6 - 8	6 - 8	6 - 8 / 2 - 4
Stroke (m)	1	1	1.5
Air consumption (m³/min)	12 - 14	7 - 9	7 - 12
Working air pressure (Mpa)	0.5 - 0.7	0.5 - 0.7	0.5 - 0.7
Rotary power source	Pneumatic	Electric	Hydraulic
Feed power source	Pneumatic	Pneumatic	Hydraulic
Equipped drill rod (mm)	Φ73*1000	Φ73*1000	Φ76*1500
Adjustable height of base (mm)	220	220	400
Total weight (kg)	500	520	700

The DINOSAW DTH drilling range covers quarry hole preparation from Φ65 to Φ165 mm and depths to 40 m — with pneumatic, electric and hydraulic power options matched to hole diameter, rock hardness and site infrastructure.

Real Drilling Performance & Key Metrics

Hole Range

Three models cover the full quarry drilling range: the QKZ90-P and QKZ90-E drill Φ65–90 mm, the QKZ165-H drills Φ90–165 mm for larger breaking holes.

Drilling Depth

Maximum depths of 35–40 m (30 m on the large-hole model) cover bench drilling, pre-splitting and blasting hole patterns in dimensional stone quarries.

Feed Range by Hole Class

Reference feed rates of 6–8 m/h on Φ65–90 mm holes and 2–4 m/h on the QKZ165-H large holes — the hole class sets the pace, not one headline number.

DTH Impact at the Bit

The hammer works directly behind the bit at the bottom of the hole, delivering impact energy to the rock face instead of transmitting it through a long drill string — penetration in hard granite and broken formations stays high where top-hammer drills lose energy to rod vibration.

Three Drive Configurations

Pneumatic suits compressor-rich quarries with simple site infrastructure; electric suits sites with stable power lines and lower air capacity; hydraulic serves the largest holes and hardest rock with controlled feed. The drive choice follows the site, not a catalog default.

Hydraulic Large-Hole Feed

The QKZ165-H adds hydraulic feed to hydraulic rotation: controlled thrust on Φ90–165 mm holes protects drilling stability in hard or fractured rock, where uncontrolled pneumatic feed stalls or deviates.
