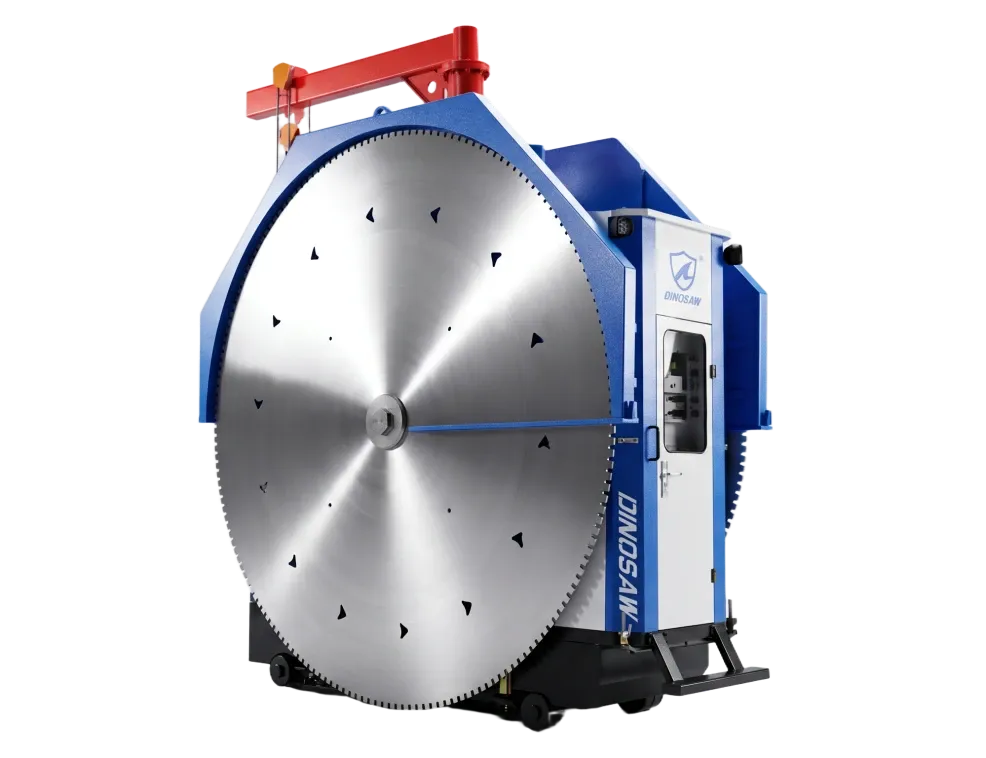

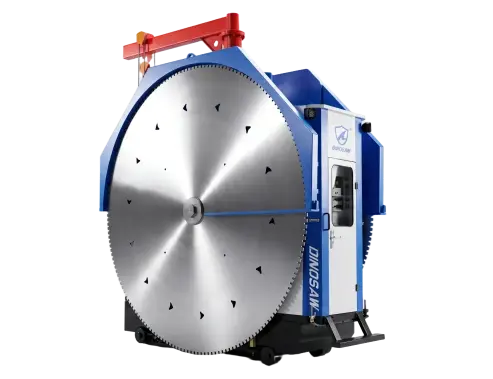

Double Blade Quarrying Machine for Granite Block Extraction

Name: Double Blade Quarrying Machine for Granite Block Extraction
Brand: DINOSAW
SKU: DBM1360-1900/GV / DBM1500-2100/GV / DBM1950-2450/GV / DBM2600-3100/GV
Availability: InStock

DBM1360-1900/GV / DBM1500-2100/GV / DBM1950-2450/GV / DBM2600-3100/GV

The DBM series is a rail-mounted double-blade quarrying machine for mechanized vertical face cutting in granite, marble, limestone and other dimension stone. Two large circular blades cut parallel faces in the same production cycle, with four standard cutting-width ranges from 1,360 to 3,100 mm and a maximum cutting depth up to 2,150 mm. The quarry frame combines belt-driven main transmission, four enclosed chrome-plated guide pillars and double-chain travel for stable operation in dusty, humid quarry environments. Model selection is based on target block width, bench geometry, required cutting depth, blade diameter and track spacing. DINOSAW can configure the machine, diamond blade specification, electrical standard and site setup around the quarry project, and can combine the DBM with quarry wire saws, DTH drilling and diamond tools for a coordinated dimension-stone extraction workflow.

Double Blade Quarrying Machine Applications in Granite & Marble Quarries

The DBM series is built for repeated straight vertical cuts in fixed dimension-stone quarries where stable rails, defined block widths and production continuity matter.

Specs and options

Specifications customizable upon request.

Specification	DBM1360-1900/GV	DBM1500-2100/GV	DBM1950-2450/GV	DBM2600-3100/GV
Saw blade diameter (mm)	Φ2400 ×2 + Φ3600 ×2	Φ2400 ×2 + Φ3600 ×2	Φ2400 ×2 + Φ4800 ×2	Φ2400 ×2 + Φ4800 ×2
Cutting width (mm)	1360–1900	1500–2100	1950–2450	2600–3100
Maximum depth of cut (mm)	1550	1550	2150	2150
Main motor power (kW)	55 ×2	55 ×2	65 ×2	65 ×2
Total power (kW)	118	118	138	138
Water consumption (m³/h)	5	5	5	5
Track center distance (mm)	1140	1290	1670	2200
Dimensions L×W×H (mm)	4150×1540×3100	4150×1540×3100	4150×2140×3100 (3.6) 5200×2140×3600 (4.8)	4150×2800×3100 (3.6) 5200×2800×3600 (4.8)
Weight (t)	8.5	8.8	10 / 11	11 / 12

The DBM series is a rail-mounted twin-blade quarry cutter for high-volume straight vertical face cutting in granite, marble, limestone and other dimension stone. Four frame sizes let quarry operators match machine width and cutting depth to the commercial block program instead of forcing one configuration across every bench.

DBM Quarry Cutting Capacity & Key Performance

Cutting Width Range

Four standard frame classes cover small-to-wide quarry block programs, allowing model selection around the target block width and track layout.

Maximum Cut Depth

The DBM1950-2450/GV and DBM2600-3100/GV configurations extend vertical cutting depth to 2,150 mm for deeper benches and larger dimension-stone blocks.

Twin Main Motors

Smaller frames use 55 kW ×2 while the two larger models use 65 kW ×2, matching drive power to blade size and cutting envelope.

Twin-Blade Parallel Cutting System

Two large circular blades create parallel vertical cuts in the same quarrying cycle. For repeated block-width programs, the twin-blade layout reduces separate face-cut passes and keeps the extraction geometry tied to the selected DBM width class.

Enclosed Four-Guide-Pillar Structure

Four guide pillars are enclosed and protected, with chrome plating and precision grinding specified for the quarry frame. This protects the lifting guidance from dust and slurry while supporting stable blade alignment during repeated vertical movement.

Belt-Driven Main Transmission

The main cutting drive uses a belt transmission between the motor and blade drive system. The layout reduces direct shock transfer to the motor and gearbox when cutting conditions change, while keeping routine drive inspection and service straightforward.
