Super Thin Multi Wire Saw Machines for Natural Stone Block

Multi-wire saw machines offer six significant advantages over traditional gang saws.

1. Higher material yield (10%-25% increase) - when cutting 1.75cm thick slabs, gang saws produce 47m² per cubic meter while multi-wire saws yield 55m².

2. Environmental performance with 80% reduction in wastewater and residue.

3. Lower energy and material consumption, with 50% noise reduction.

4. Smaller footprint - 30% less floor space and 80% lower foundation costs.

5. Ultra-thin processing capability, directly cutting 3mm slabs without secondary splitting.

6. Excellent operational stability with minimal vibration, eliminating breakage risk and producing highly flat surfaces.

These advantages make multi-wire saws an efficient, eco-friendly, and economical choice for the stone processing industry.

DINOSAW multi-wire saw machines can effectively process five major categories of stone materials:

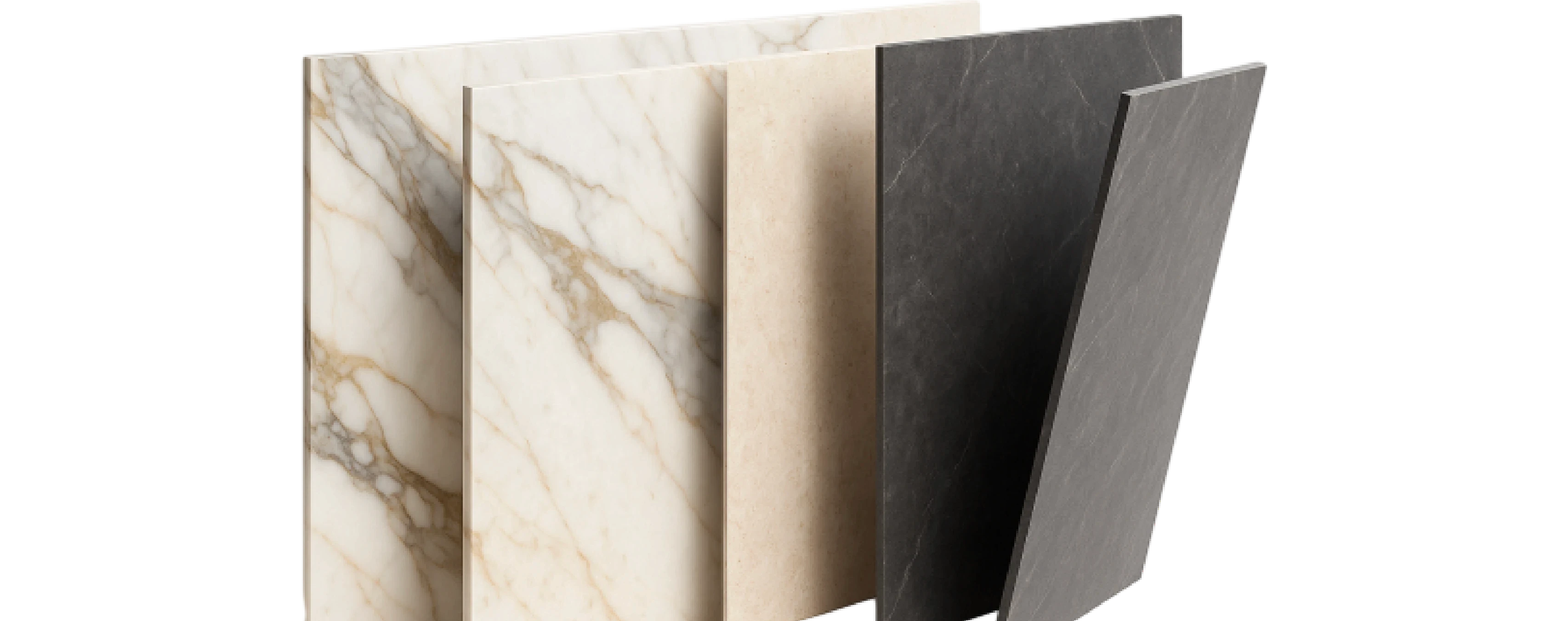

1. Luxury Marble: Calacatta Gold, Statuario Venato, Carrara White, Emperador Dark, Thassos White

2. Premium Onyx: Blue Onyx, Green Onyx, Honey Onyx, White Onyx, Red Onyx

3. Rare Quartzite: Azul Macaubas, Super White, Sea Pearl, Arctic White, Silver Cloud

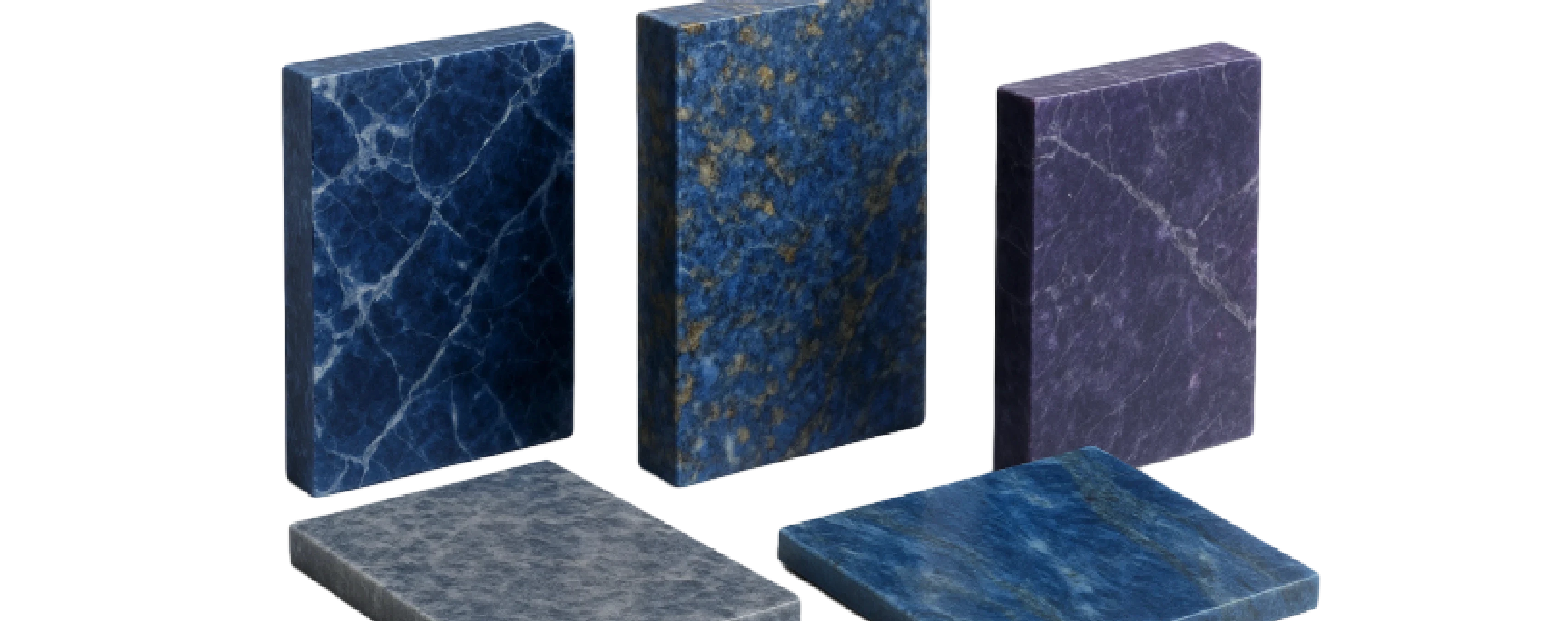

4. High-grade Granite: Blue Bahia, Sodalite Blue, Kashmir White, Black Galaxy, Imperial Red

5. Industrial Hard Materials: Single Crystal Silicon, Silicon Carbide Ceramics, Graphite Blocks,Industrial Ceramics, Engineered Quartz

Each stone category requires specific cutting parameters that our machines automatically optimize through the CNC control system. From the softest marble to the hardest industrial materials, DINOSAW multi-wire technology delivers superior cutting precision with minimal waste across all stone types.

This thin multi-wire saw machine is mainly used to cut stone blocks directly into ultra-thin slabs.

In real production, it is applied at the block-cutting stage, not for trimming slabs or secondary processing.
Factories use it to slice stone blocks into very thin slabs in one continuous cutting process, instead of producing standard-thickness slabs first.

This application is especially common when:

• The stone material is expensive

• Slab thickness needs to be minimized

• Material yield is a key concern

In short, this machine is designed for maximum material efficiency when turning blocks into ultra-thin slabs.

Down-Feed Configuration (DSY-XY Series):

• Mechanism: Wire system presses downward through the stone block
• Advantages: Superior stability for large blocks, reduced wire vibration
• Ideal For: Large granite blocks, dense quartzites, maximum stability requirements

Up-Feed Configuration (DSY-JS Series):

• Mechanism: Stone block is lifted upward into the cutting wire system
• Advantages: Better cooling efficiency, easier slab removal, reduced power consumption
• Ideal For: Marble, onyx, and softer materials where precise cooling is critical

Our diamond wire saw stone cutting systems incorporate multiple technologies:

Precision Control Systems:

• Siemens Servo Motors with ±1N accuracy
• Real-time tension feedback and automatic adjustment
• Variable cutting speed based on material resistance

AI-Powered Optimization:

• Smart Recipe System for optimal cutting parameters
• Material-specific profiles with learning capability
• Historical data analysis for continuous improvement

Advanced Cooling and Quality Assurance:

• Precision cooling system with temperature monitoring
• Continuous self-diagnostics and wire wear monitoring
• Production data logging for quality tracking

Common Causes:

• Excessive tension beyond recommended limits
• Improper feed rate through hard materials
• Inadequate cooling causing overheating
• Pulley misalignment and material inclusions

DINOSAW Technical Solutions:

• Real-time tension feedback system
• Adaptive cutting speed based on material resistance
• AI-based Smart Recipe parameter optimization
• 3S Quick Start-Stop system reducing wire stress

Best Practices:

• Material assessment before cutting
• Progressive engagement with gradual parameter increase
• Consistent cooling throughout process
• Regular wire inspection and parameter logging

Diamond Wire Break-In Procedure:

• Install according to manufacturer guidelines
• Begin with 50% of normal operating tension
• Use 60% of standard feed rate for first 0.5m²
• Gradually increase to normal parameters over next 1m²
• Monitor and adjust as needed

The key difference lies in wire diameter, kerf width, and material yield.

A conventional multi-wire saw:

• Uses diamond wire around 8 mm in diameter

• Is optimized for cutting standard granite slabs

• Produces wider kerf and higher material loss

A thin multi-wire saw:

• Uses ultra-thin diamond wire down to 0.35 mm

• Cuts much thinner slabs

• Creates a much smaller kerf

• Achieves significantly higher material yield, especially on expensive stone

For high-value materials like luxury marble or jade, this difference directly translates into more sellable slabs from the same block, which is why factories choose this machine.

The core reason is kerf reduction.

A conventional multi-wire saw typically uses:

• Diamond wire around 8 mm in diameter

A thin multi-wire saw uses:

• Ultra-thin diamond wire down to 0.35 mm

This means:

• Each cut removes far less material

• The total kerf loss across dozens of cuts is dramatically reduced

• More slabs can be produced from the same block height

On expensive stone blocks, this difference accumulates into a measurable increase in usable output.

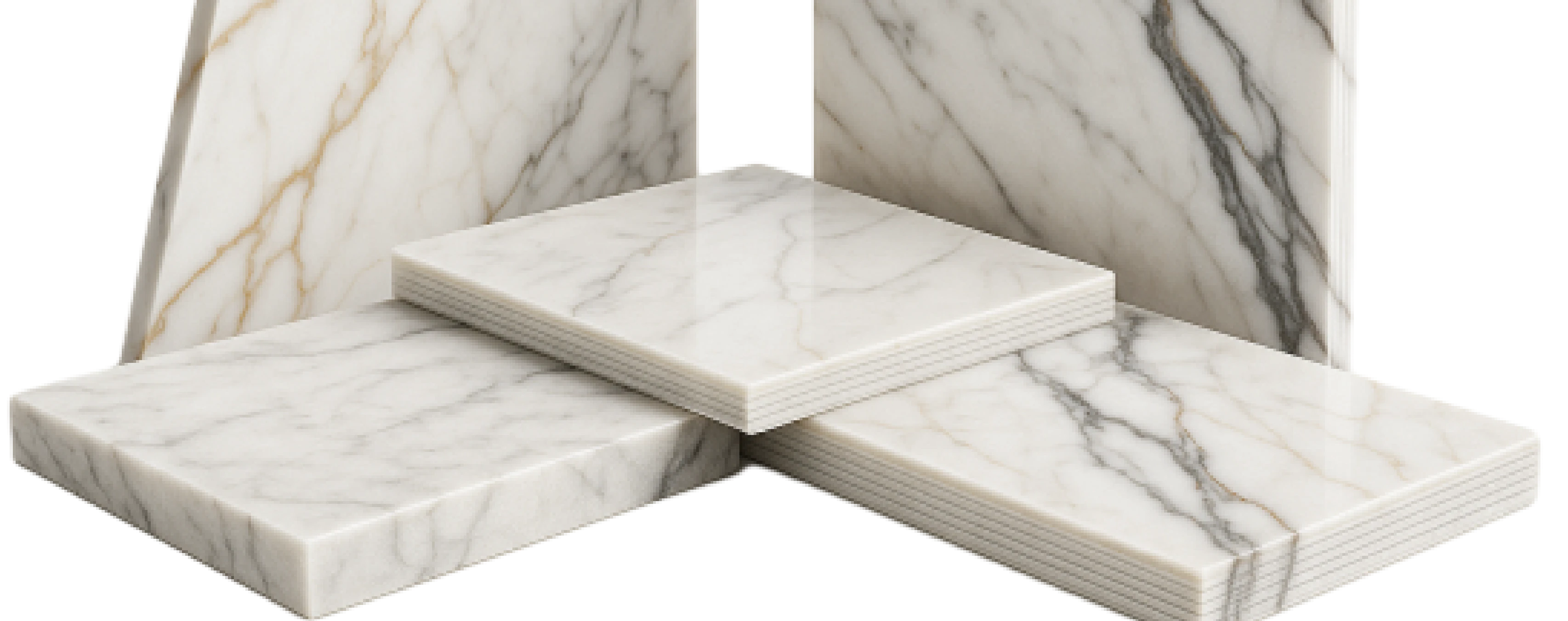

This machine is designed to cut ultra-thin slabs, including slabs as thin as 3 mm on suitable materials such as marble and onyx.

For harder stones:

• The minimum practical slab thickness is typically higher

• Thickness selection depends on stone structure and stability

The key advantage is not a single thickness number, but the ability to:

• Cut thinner than conventional systems

• Maintain stability and flatness

• Avoid secondary splitting or reprocessing
