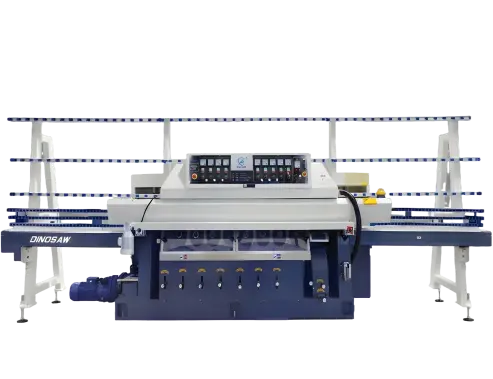

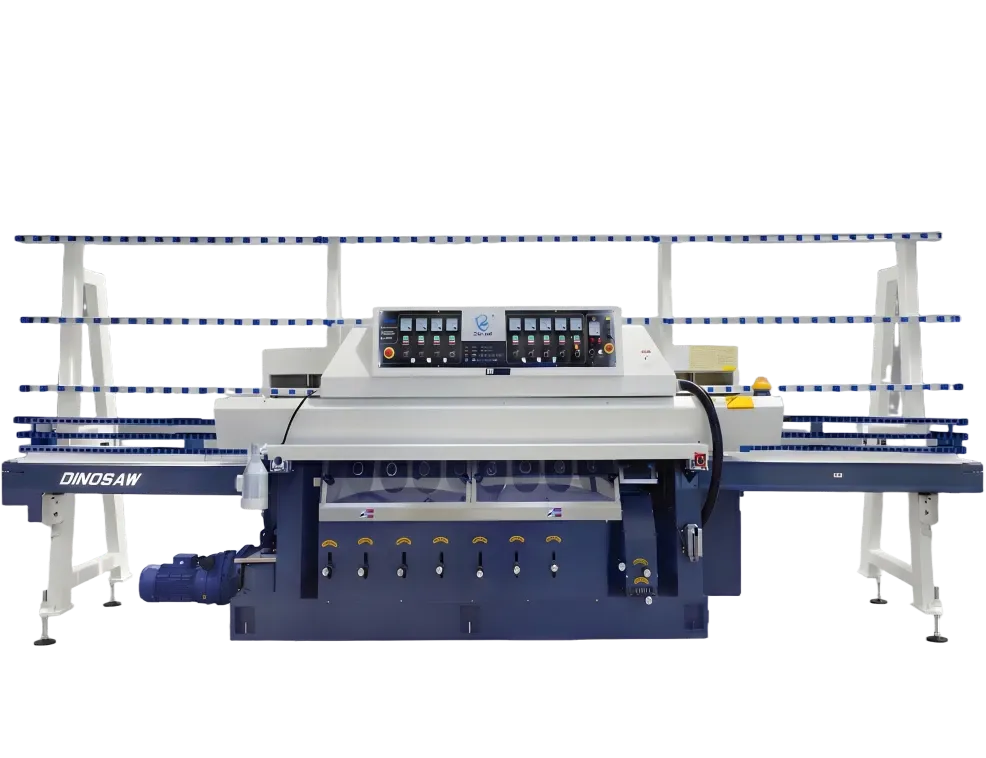

Multi-Purpose Glass Edging Machine for Glass & Stone
LSMB-314/80
Glass edging machine uses diamond tools: grinding wheels, polishing discs, cutting blades.
Performs edge polishing, chamfering, grooving for 10-80mm thickness with ±0.1mm precision. CNC system ensures simple operation and consistent results.
Processes glass, marble, granite, quartz. Creates architectural glass, countertops, shower doors, decorative panels. Automation reduces processing time 40% while maintaining superior edge quality.

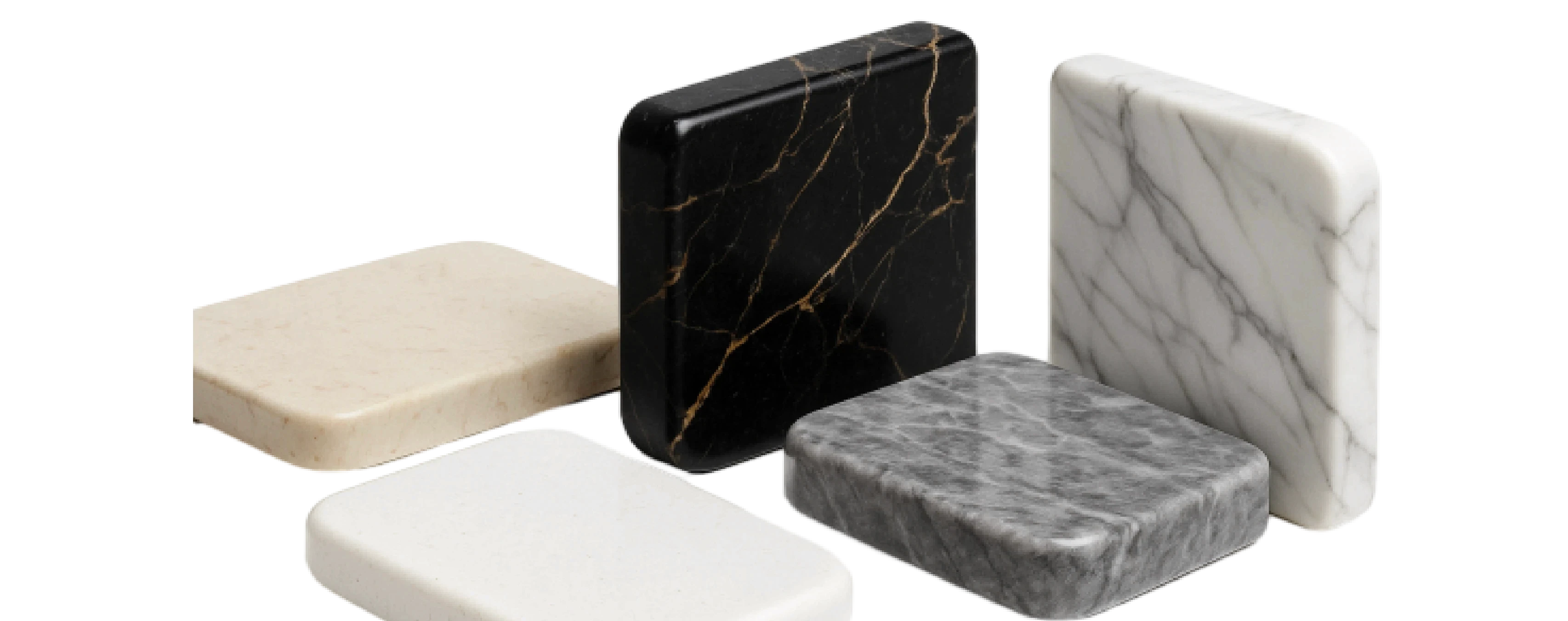

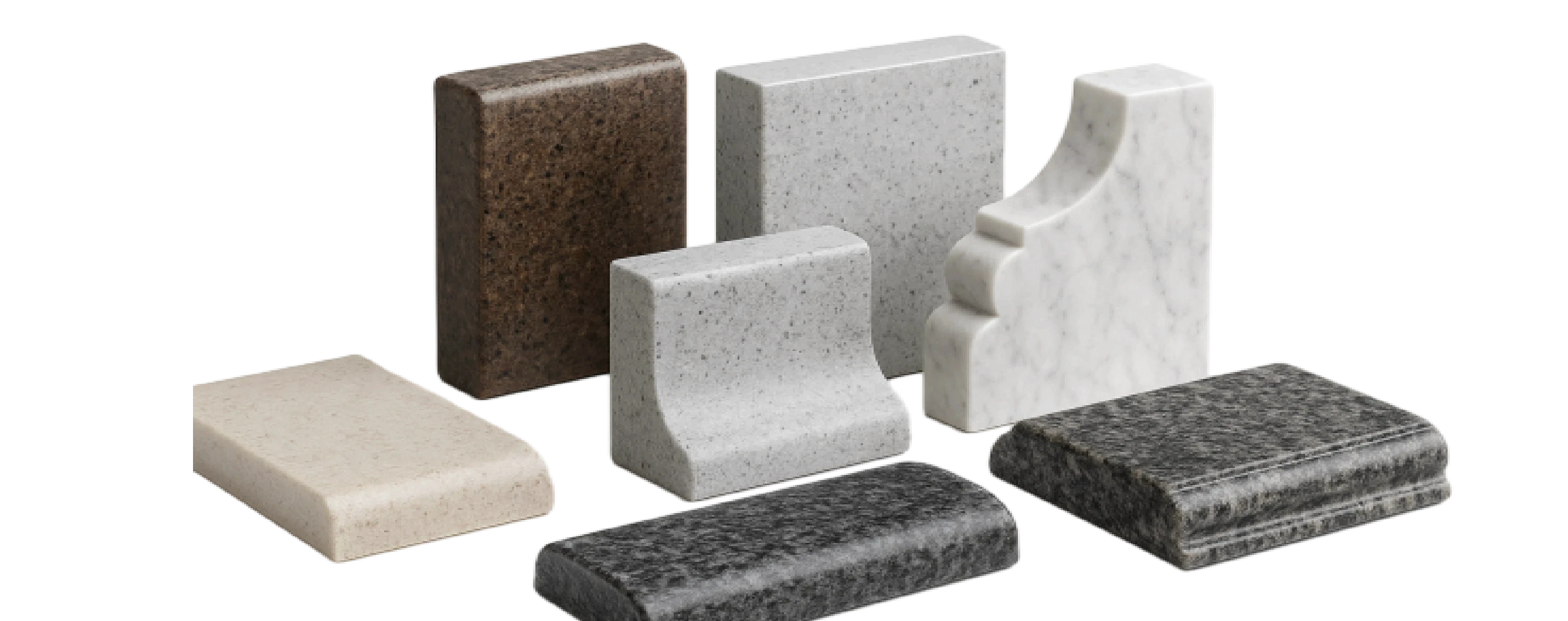

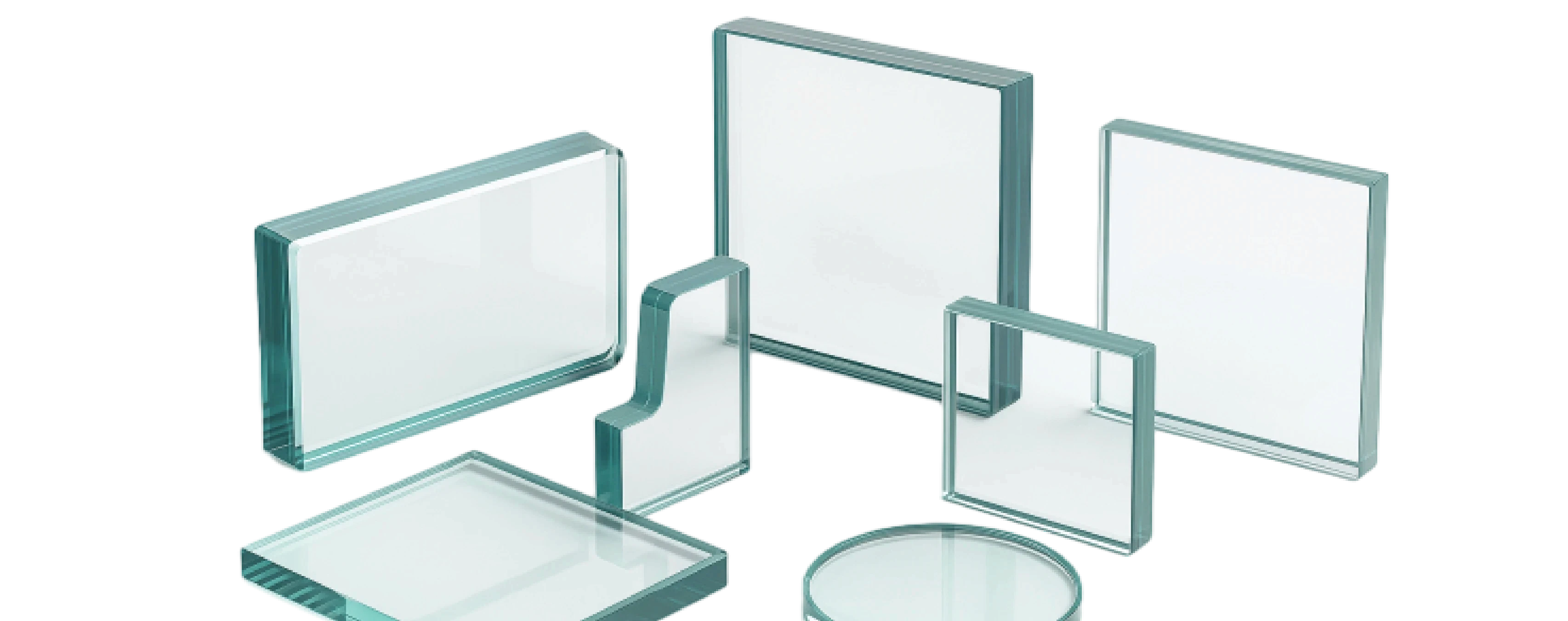

Compatible Materials & Products
Edge shaping and polishing for glass panels, stone countertops and architectural workpieces on one conveyor platform.
Specs and options
Specifications customizable upon request.
| Model | Unit | LSMB-314/80 |
|---|---|---|
| Working thickness | mm | ≤120 |
| Speed (mm/min) | mm/min | 10 - 80 |
| Conveying belt speed (mm/min) | mm/min | 1500 - 4000 |
| Number of pulleys | pc | 2 |
| Number of shaping wheels | pc | 1 |
| Number of polishing wheels | pc | 3 |
| Number of pulley - related (size - indicating) elements | pc | 4 |
| Diameter of shaping wheel | mm | 150 |
| Diameter range of shaping wheel | mm | 150 - 180 |
| Diameter range of polishing wheel | mm | 150 - 180 |
| Total power | kw | 45 |
| Water consumption | L/min | 1000 |
| Overall dimension (Length×Width×Height) | mm | 7500x1200x2200 |
| Weight | t | 4 |
The LSMB-314/80 is a continuous edge-finishing platform: one shaping wheel forms the edge profile and three polishing wheels refine it as the workpiece travels the conveyor — one pass from raw edge to finished polish on glass, marble, granite and quartz.
Real Edging Performance & Key Metrics
Single-Pass Sequence
The first station forms the edge profile and three polishing stations refine it progressively before the workpiece exits — no secondary polishing station, no re-handling between shape and finish.
Thickness Range
The machine edges workpieces up to 120 mm thick — thin glass panels and thick stone slabs share one platform with parameter changes.
Dual-Material Platform
Change wheel specification and process parameters to run glass, marble, granite or quartz on the same mechanical platform — one edging cell instead of two single-material machines.
Single-Pass Shape & Polish
The shaping station forms the edge profile and three polishing stations refine it as the workpiece travels: one pass delivers a finished edge — the edge leaves the machine complete instead of queueing for a second operation.
Dual-Material Capability
The stations accept wheel sets specified for glass or for stone; edge speed, water flow and contact pressure then adapt per material. A shop edging glass tops and granite countertops buys one cell, stocks two wheel sets, and switches production by changing wheels and recalling the stored parameter set.
Four-Point Workpiece Guidance
Multiple guide and support elements hold the workpiece position through shaping and polishing: edge angle and profile stay consistent along the full pass — the difference between a uniform edge and visible waviness.
