5 Axis CNC Waterjet Cutting Machine for Sale

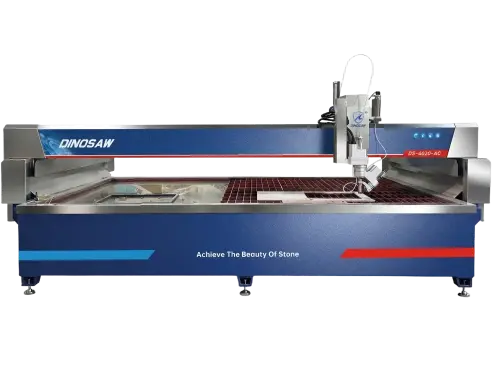

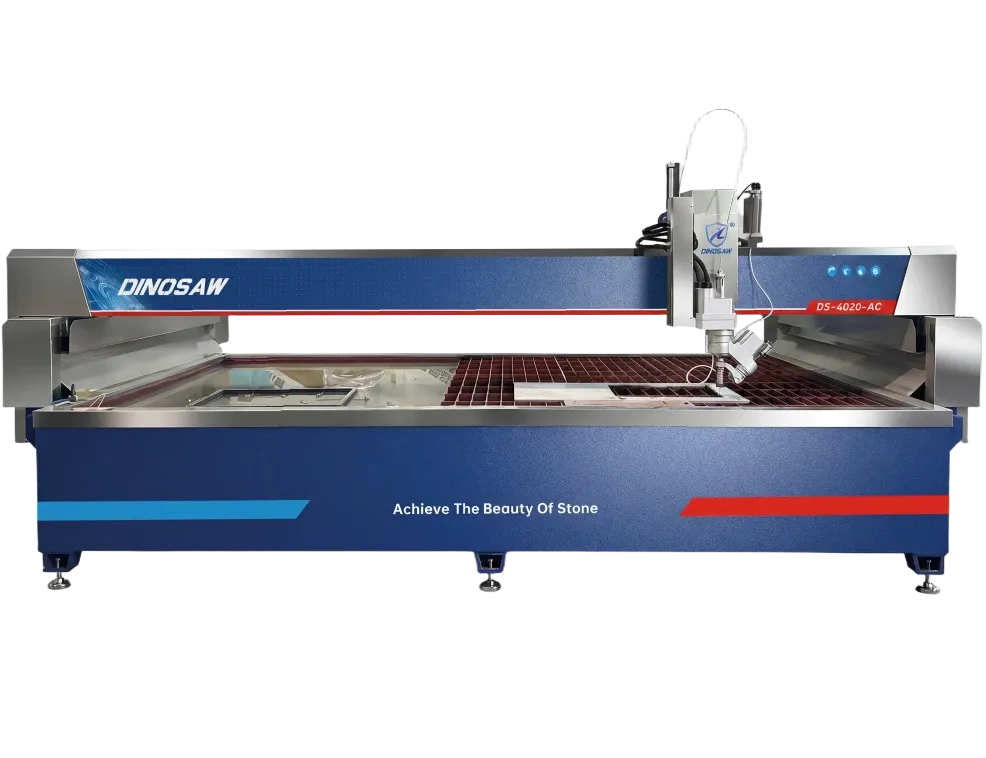

Name: 5 Axis CNC Waterjet Cutting Machine for Sale
Brand: DINOSAW
SKU: WZSD-4020-AC
Availability: InStock

WZSD-4020-AC

DINOSAW 5-axis CNC waterjet mixes water with abrasives for cutting. No heat effects during cutting process. System delivers ±0.1mm accuracy through servo-driven controls and handles complex 3D shapes with five-axis movement. Operators learn the CNC interface in 5 minutes with one-click operation. The machine cuts granite, marble, steel, aluminum, glass, ceramics, rubber, and composites. It creates stone countertops, tombstones, decorative panels, industrial parts, architectural elements, sculptures, and aerospace components with clean edges that need minimal finishing.

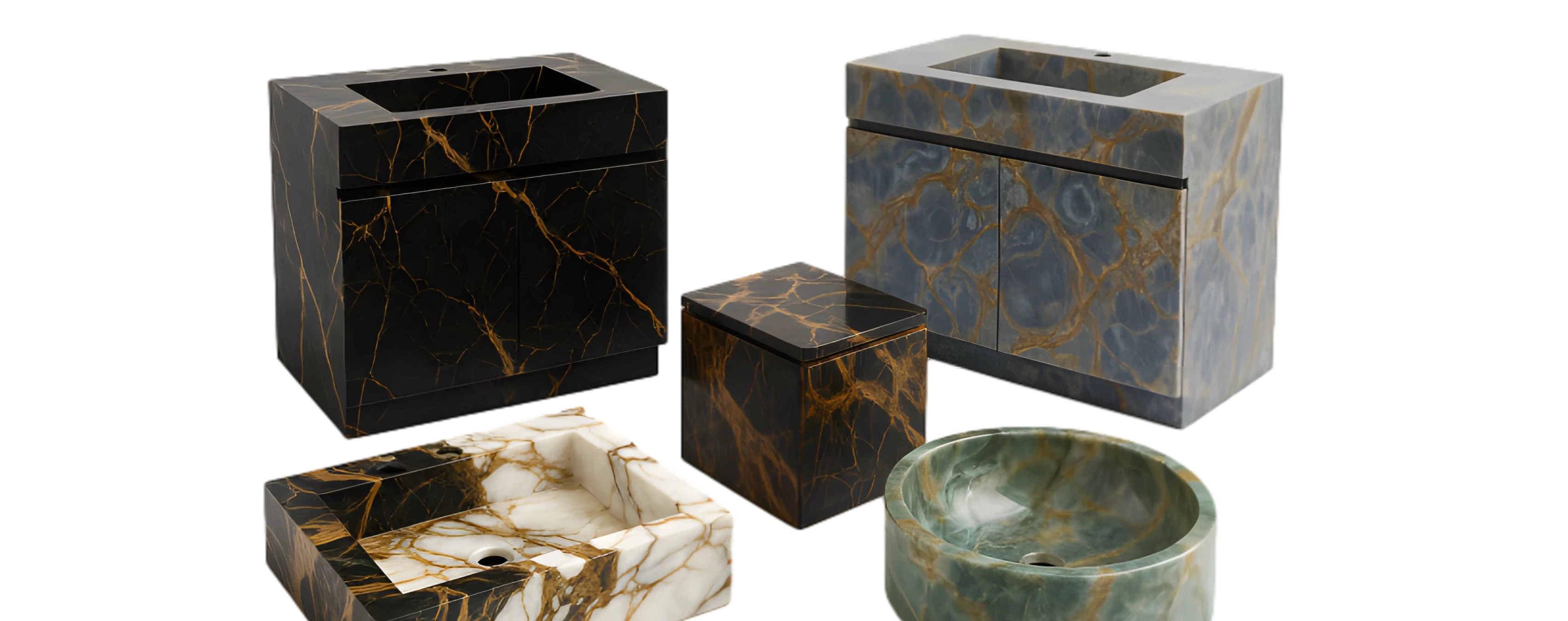

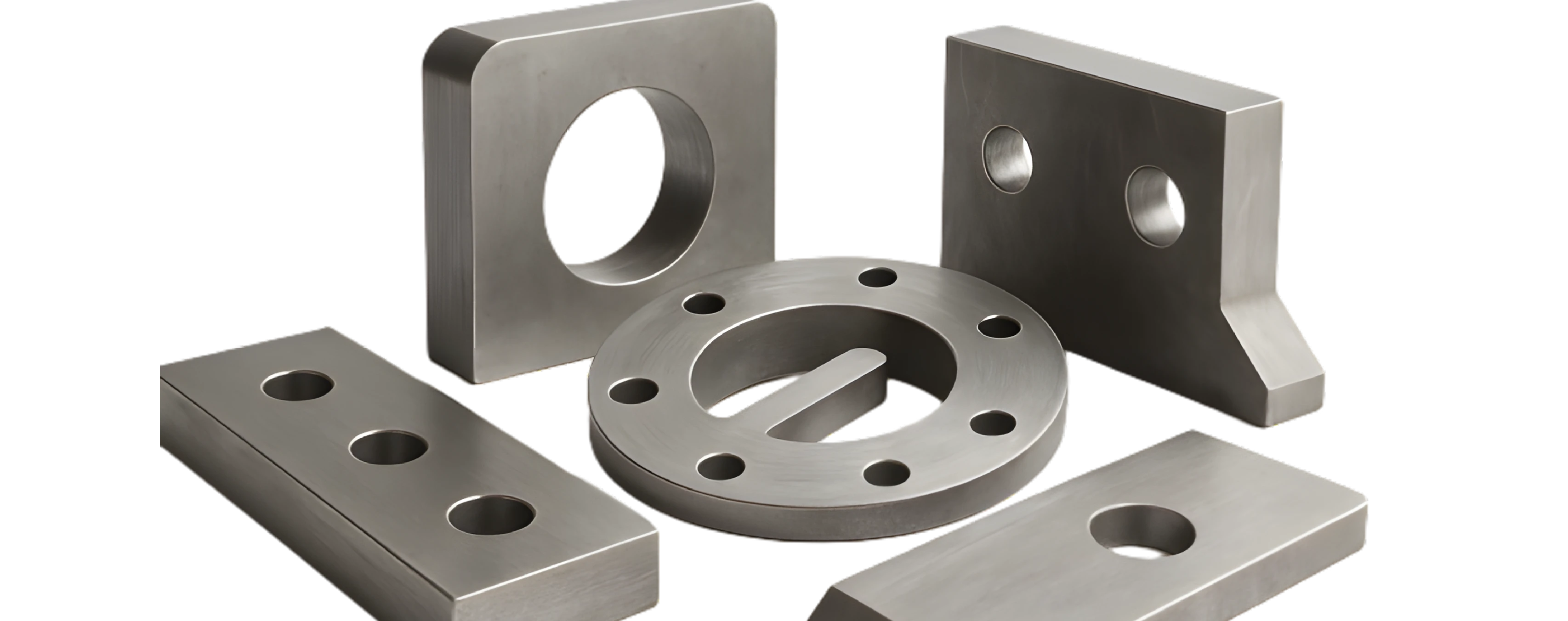

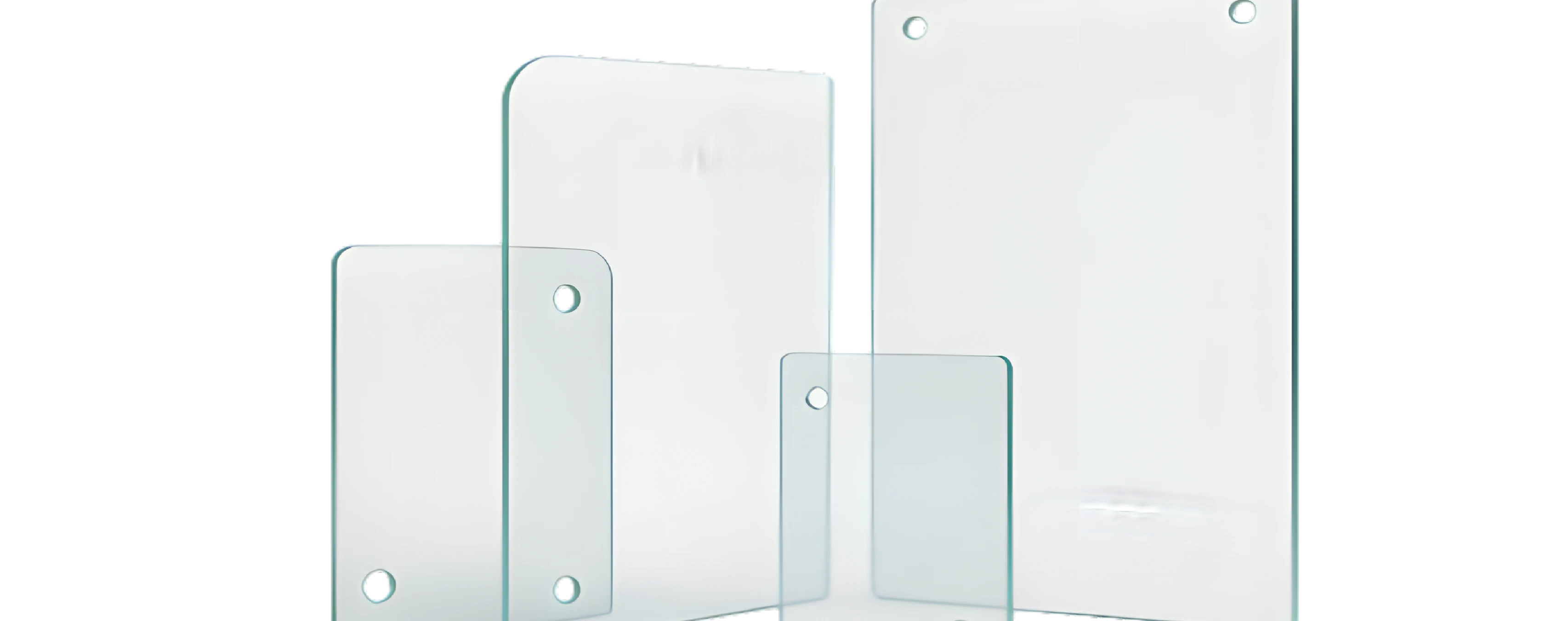

Compatible Materials & Products

Five-axis waterjet cutting of complex shapes in stone, glass, metal and composite materials where cold cutting preserves material structure.

Specs and options

Specifications customizable upon request.

Model	WZSD - 4020 - AC
Control Cabinet	AC shaft CNC system
Automatic sand supply system	100L
Processing range	4000mm×2000mm
Cutting accuracy	±0.1mm
Cooling tower capacity	3 m³
X axis running speed（Drive parts）	0 - 6000mm/min
Y axis running speed（Drive parts）	0 - 6000mm/min
Z axis running speed（Drive parts）	0 - 200mm/min
A axis（Drive parts）	±106°
C axis（Drive parts）	±540°

Customized Waterjet Solutions for Every Industry

DINOSAW offers tailored 5-axis CNC waterjet solutions for stone, glass, metal, and composite materials processing, with specific systems designed for each industry's unique requirements.

We customize solutions based on your production volume and provide technical consultation

The WZSD-4020-AC cuts with water and abrasive at 4000 × 2000 mm working range and ±0.1 mm accuracy — cold, burr-free edges on stone, metal, glass and composites with minimal finishing.

Real Cutting Performance & Key Metrics

Cutting Accuracy

Servo-driven five-axis control holds ±0.1 mm accuracy across the full processing range.

Processing Range

Covers full slab formats for countertops, panels and large industrial parts.

Intensifier Pressure

The ultra-high-pressure intensifier pump delivers working pressure up to 460 MPa for fast cutting on hard materials.

Cold Cutting / No HAZ

Thermal cutting can create heat-affected zones that change material properties at the cut line, while blade cutting introduces mechanical force that chips brittle materials. The waterjet removes material through a high-pressure abrasive stream — without thermal input and without blade contact.

Five-Axis Tilting Head

The A/C tilting head (±106° / ±540°) cuts bevels and complex 3D shapes in a single fixture, expanding the machine beyond flat sheet work.

460 MPa Intensifier

The 460 MPa intensifier pump drives the cutting stream; the 100 L automatic abrasive supply system keeps long cuts running without manual refills.

FAQs

Common Questions About DINOSAW 5-axis CNC Waterjet Cutting Machines

Global Leader in CNC Machinery & Diamond Tools Manufacturing

Real Cutting Performance & Key Metrics

CE Certification

100+ Tech Patents

ISO 9001:2015

DINOSAW goes beyond merely complying with international engineering standards—we actively lead their formulation. As the principal drafter of key industry benchmarks for Stone Multi-Wire Saw Machines, CNC Wire Saw Machines, and Bridge Saws, we define the rules of precision manufacturing. Backed by ISO 9001, CE certification, and 100+ technology patents, our products guarantee exceptional durability and safety in the most demanding high-load environments.

Proven Expertise & Global Applications

75+

Countries Served Worldwide

20+

Industry machinery expertise

Trusted by clients in over 75 countries, DINOSAW delivers lifecycle quality traceability and specialized technical support across 20+ machinery sectors. From traditional mining and stone processing to high-precision manufacturing (semiconductors, quartz glass) and specialized fields like nuclear decommissioning, our comprehensive solutions consistently meet the world's most rigorous operational requirements.

Complete Production Solutions & Equipments

Choose equipment combinations for your product needs to establish efficient automated production lines and maximize profitability.

Add surface details to waterjet-cut pieces. Creates patterns and textures on stone and metal surfaces. Features automatic tool changing for continuous operation. Enhances product value through decorative surface designs.

Finish flat surfaces of waterjet-cut pieces. Camera recognition system processes materials of different heights and shapes with one click. Automatic disc/pad changing eliminates manual adjustments between materials. Ensures consistent results across various surfaces.

Finish edges of waterjet-cut glass and stone. Provides multiple edge options including flat, beveled, and chamfered. Ideal for bathroom doors and tabletops. Features automatic thickness compensation for consistent quality across different pieces.

Factory Direct Sales & Competitive Pricing

Buy directly from our factory to eliminate middleman markups. We provide processing plants with heavy-duty machines at factory-direct prices, helping you lower equipment costs and shorten your payback period.

We offer profitable wholesale programs for global distributors. For specialized applications, our engineering team provides OEM/ODM customization—adjusting machine dimensions, motor power, and CNC parameters to fit your exact material workflow.
