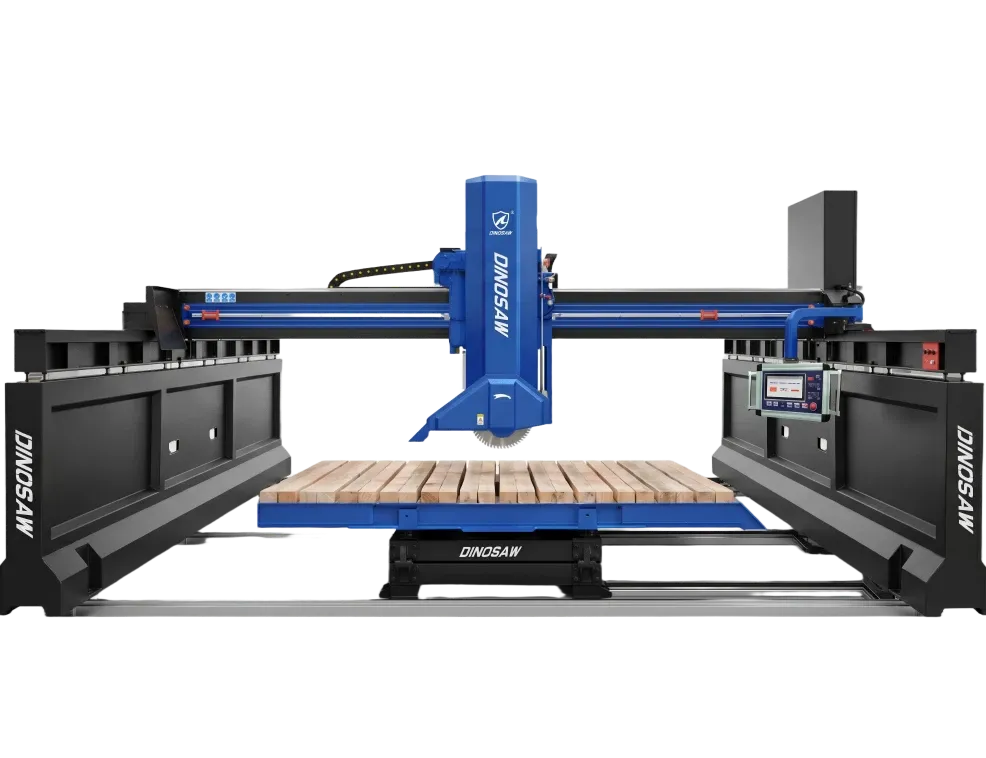

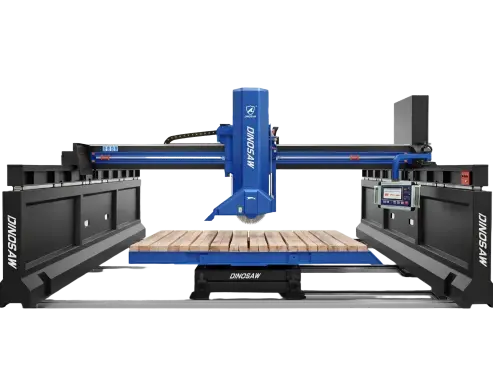

CNC Stone Bridge Saw for Precision Cutting

Name: CNC Stone Bridge Saw for Precision Cutting
Brand: DINOSAW
SKU: QSQJ-400/600/800
Availability: InStock

QSQJ-400/600/800

DINOSAW bridge saws deliver exceptional ±0.05mm precision and 25㎡/h efficiency through DDX CNC control systems, enabling high-volume stone fabrication with automated cutting, drilling, and edges operations. Perfect for processing granite, marble, engineered stone into countertops, monuments, and architectural elements. Multi-axis configurations handle straight cuts to complex curved surfaces, dramatically reducing production time while maximizing material utilization.

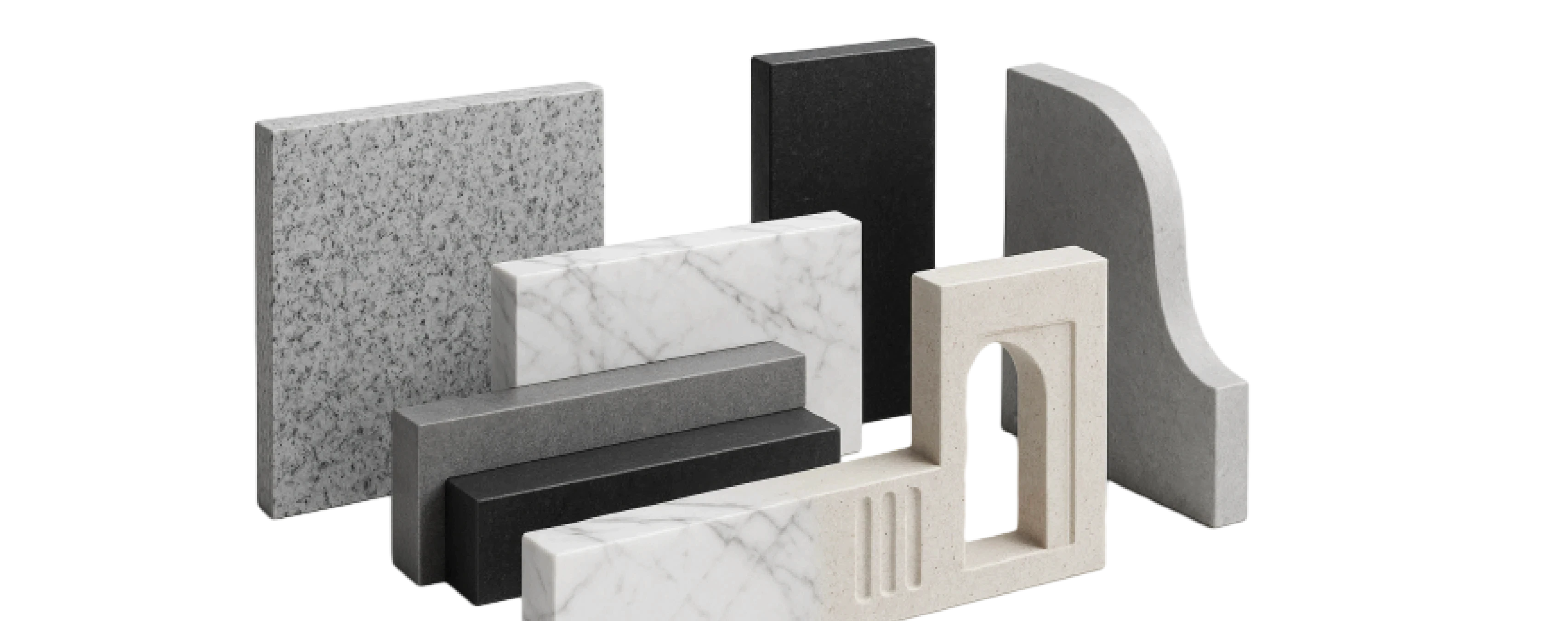

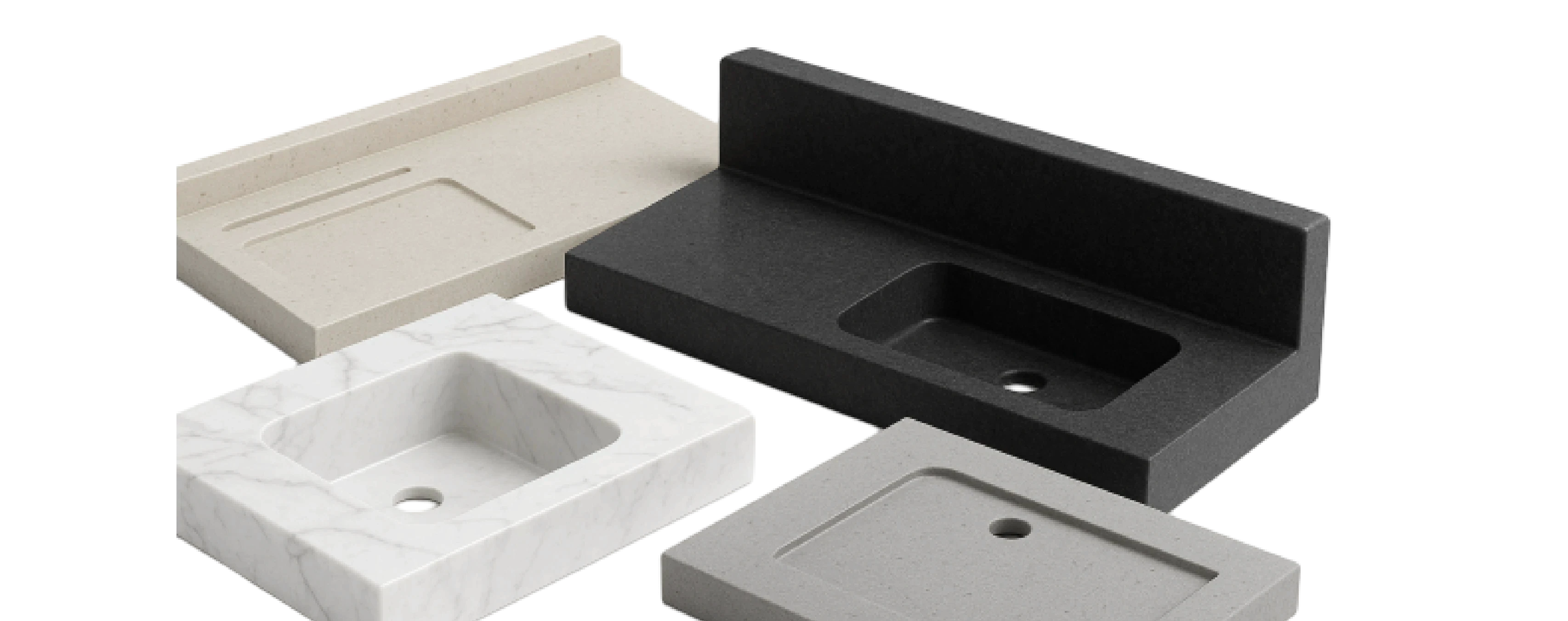

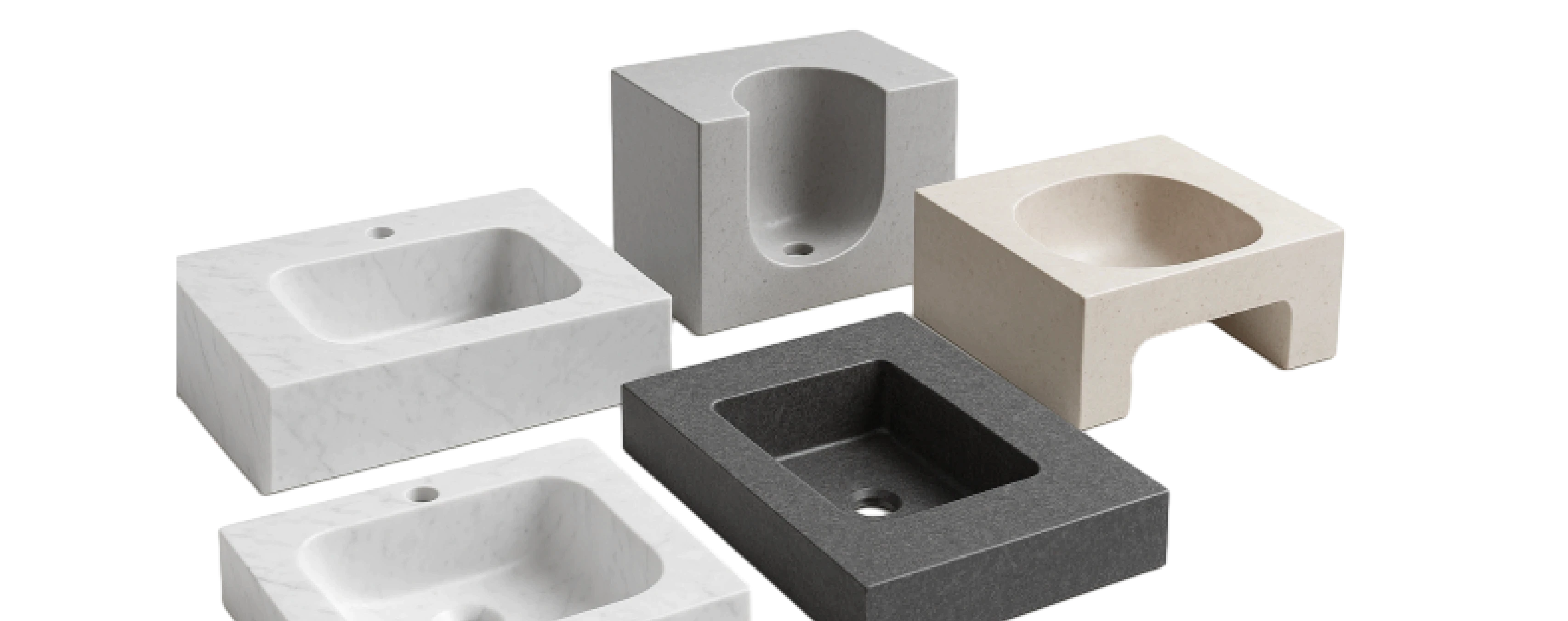

Compatible Materials & Products

Versatile CNC Bridge Saw Processing for Premium Stone Materials

Specs and options

Specifications customizable upon request.

Model	Unit	QSQJ-400	QSQJ-600	QSQJ-800
Max.diameter of blade	mm	400	600	800
Main motor power	KW	15	18.5	22
Table dimensions (LxW)	mm	3200x2000	3200x2000	3200x2000
Table tilting degree	n°	0 - 85°	0 - 85°	0 - 85°
Table rotating degree	n°	90° / 360°	90° / 360°	90° / 360°
Max. cutting size (LxWxH)	mm	3200x2000x80	3200x2000x180	3200x2000x280
Overall dimensions (LxWxH)	mm	6000x5000x3000	6000x5000x3200	6000x5000x3400
Water consumption	m³/h	3	3	3
Approximate Weight	t	5	5.3	5.5

The QSQJ series delivers 25 m²/h cutting efficiency with DDX CNC control — three blade sizes (400/600/800 mm) and matching cutting depths (80/180/280 mm) let one platform scale from countertops to thick architectural elements.

Real Cutting Performance & Key Metrics

Cutting Efficiency

An 18.5 kW high-performance main motor and optimized cutting paths sustain 25 m²/h in production conditions.

Positioning Accuracy

Precision motors, bearings and the DDX CNC system hold positioning accuracy across long cutting days.

Blade Range

Three blade classes configure the same platform around real order depth — 15 kW, 18.5 kW and 22 kW main motors respectively.

High-Throughput Cutting Platform

An 18.5 kW high-performance main motor with optimized cutting paths delivers 25 m²/h efficiency, so slab-to-countertop turnaround stays short in peak season.

Three Blade Classes

Three blade classes let factories configure the same platform around real order depth: 400 mm for countertop programs, 600 mm for thicker slabs and 800 mm for monuments and architectural elements up to 280 mm.

DDX CNC Automation

The DDX CNC system with CAD import and one-click processing runs automated cutting, drilling and edge operations — repeat jobs become load-and-start routines.
