Column Cap & Base Profiling Machine

Name: Column Cap & Base Profiling Machine
Brand: DINOSAW
SKU: ZMFX-1500/2000
Availability: InStock

ZMFX-1500/2000

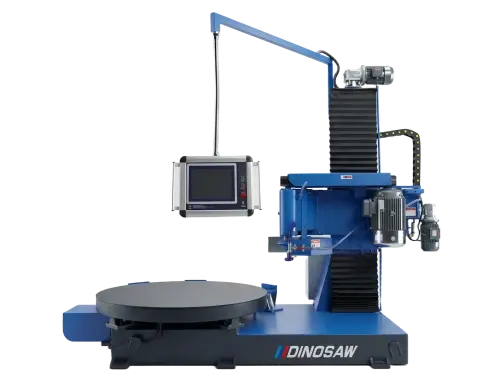

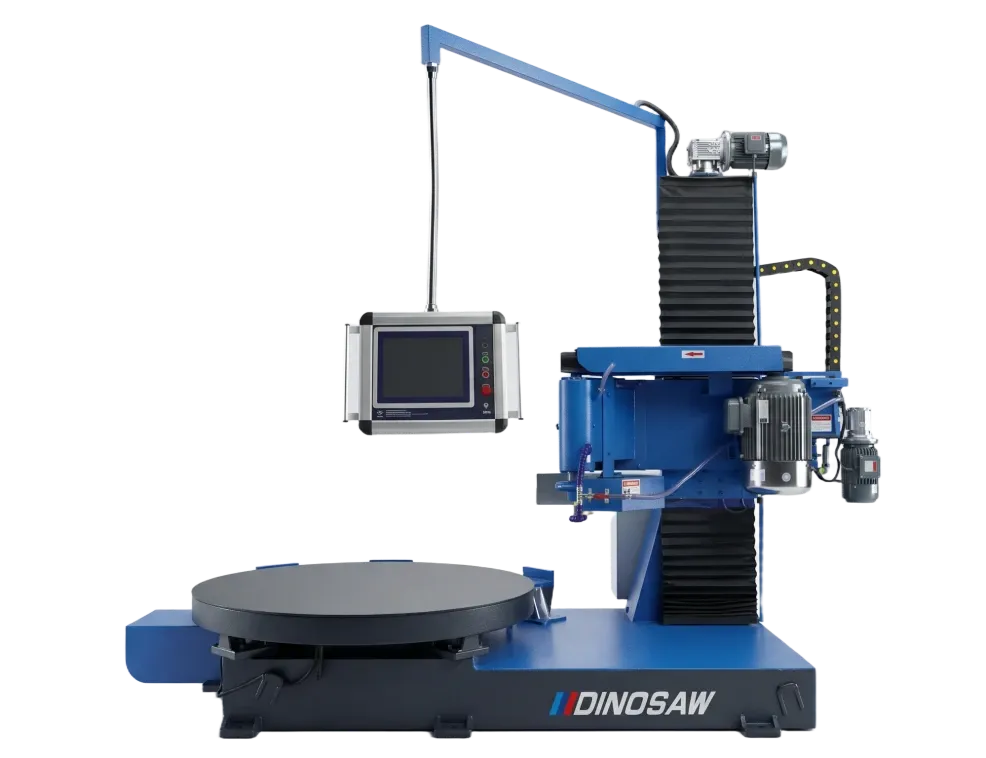

The Column Cap & Base Profiling Machine adopts the structure principle of a vertical lathe, featuring automatic computer-controlled profile raising and lowering. This ensures precise cutting, reducing manual processing inaccuracies and costs. Ideal for high-precision production of architectural columns, decorative stone caps, and bases in construction projects. The machine is also suitable for restoring historical columns or creating custom designs for luxury residential and commercial buildings.

Compatible Materials & Products

Column cap, base and disc profiling for architectural columns, fountains and monumental round elements.

Specs and options

Specifications customizable upon request.

Specification	ZMFX-1500	ZMFX-2000
Max. cutting diameter (mm)	1500	2000
Max. cutting height (mm)	1200	1500
Vertical lifting stroke (mm)	1500	1800
Blade diameter (mm)	600	600
Work table diameter (mm)	1500	2000
Main motor power (kW)	11	15
Dimensions L×W×H (mm)	3500×2000×2500	4000×2200×3100
Approx. weight (t)	4	6.5

The ZMFX column cap & base profiling machine applies vertical-lathe structure to stone: the workpiece rotates flat on a horizontal table while a diamond blade descends vertically — producing the perfectly square seating faces and true disc profiles that column caps, pedestal bases and fountain basin rings require.

Real Cutting Performance & Key Metrics

Disc Diameter Range

The ZMFX-2000 profiles discs up to 2 meters in diameter; the ZMFX-1500 covers the 1500 mm class for standard caps and bases.

Cutting Height

A 1500 mm max. cutting height handles tall pedestal bases, multi-tier caps and deep basin rings in one setup.

Vertical Cutting Power

15 kW main motor drives the vertical blade through full-depth disc sections without feed-rate compromise.

Vertical Lathe Geometry

Large discs lie flat on the rotating table while the blade cuts vertically from above — the geometry of a metal vertical lathe adapted to stone. Heavy circular workpieces stay supported by gravity throughout the cycle instead of being suspended between horizontal chucks.

Automatic Profile Elevation

Computer-controlled blade elevation traces the programmed cap or base profile automatically, replacing manual depth adjustment through each rotational pass — the operator sets the program, the machine manages depth.

Horizontal Rotary Table

The horizontal rotary table rotates the entire disc under the blade, maintaining a common center through the full circumference and keeping large rings and capitals round across repeated passes.

FAQs

Selection answers for column cap and base production: disc size, vertical lathe versus stone lathe, and the data needed before ordering.

Global Leader in CNC Machinery & Diamond Tools Manufacturing

Real Cutting Performance & Key Metrics

CE Certification

100+ Tech Patents

ISO 9001:2015

DINOSAW goes beyond merely complying with international engineering standards—we actively lead their formulation. As the principal drafter of key industry benchmarks for Stone Multi-Wire Saw Machines, CNC Wire Saw Machines, and Bridge Saws, we define the rules of precision manufacturing. Backed by ISO 9001, CE certification, and 100+ technology patents, our products guarantee exceptional durability and safety in the most demanding high-load environments.

Proven Expertise & Global Applications

75+

Countries Served Worldwide

20+

Industry machinery expertise

Trusted by clients in over 75 countries, DINOSAW delivers lifecycle quality traceability and specialized technical support across 20+ machinery sectors. From traditional mining and stone processing to high-precision manufacturing (semiconductors, quartz glass) and specialized fields like nuclear decommissioning, our comprehensive solutions consistently meet the world's most rigorous operational requirements.

Complete Production Solutions & Equipments

Choose equipment combinations for your product needs to establish efficient automated production lines and maximize profitability.

Column shafts are turned on the LGFX CNC stone lathe while caps and bases are disc-profiled on the ZMFX — the two machines form a complete column production cell with shared file-based profiles.

Capital detail, inscriptions and decorative relief on column elements finish on the ZDDK engraving machine after the ZMFX machines the disc geometry.

ZMFX disc cutting performance depends on blade and segment specification matched to the marble or granite class — the blade program completes the machine quotation.
