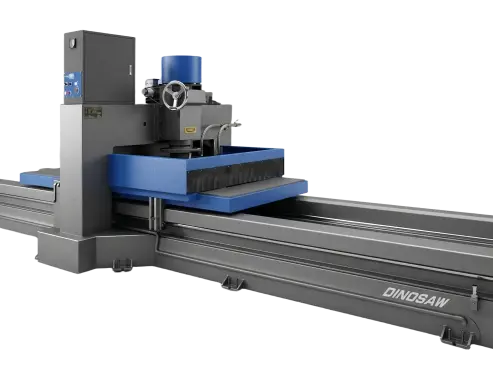

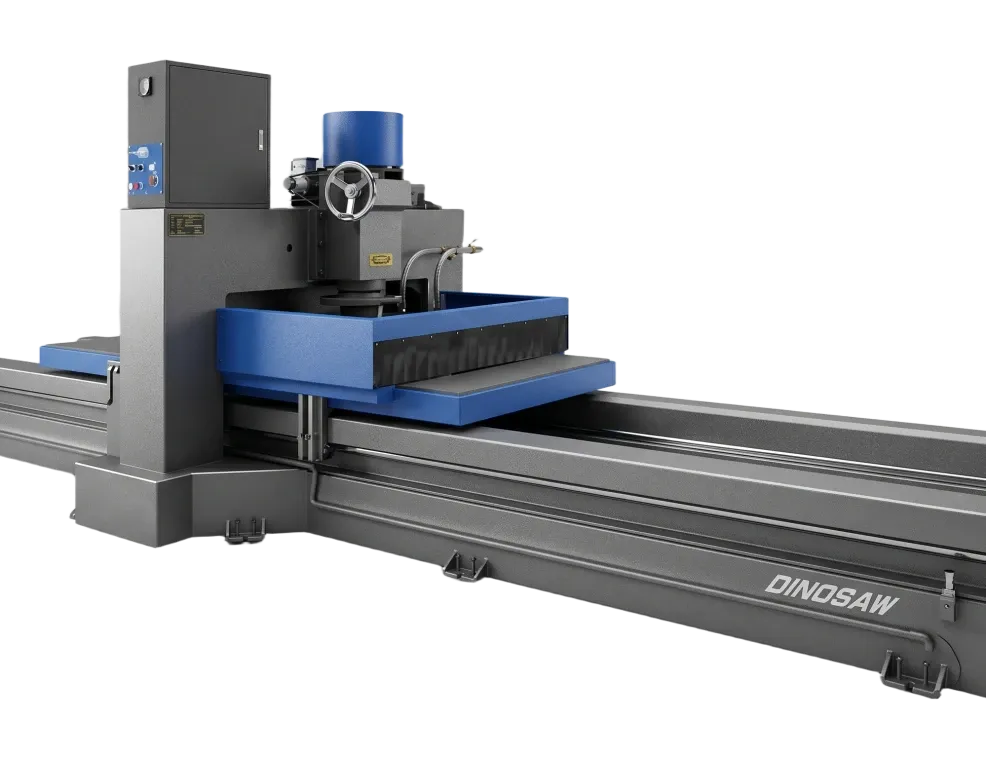

Continuous Calibrating Machine for Stone Slab Thickness Leveling

Name: Continuous Calibrating Machine for Stone Slab Thickness Leveling
Brand: DINOSAW
SKU: ZDDH-800/1000/1200
Availability: InStock

ZDDH-800/1000/1200

The DINOSAW ZDDH-800/1000/1200 continuous calibrating machine levels stone slab thickness in a continuous pass, preparing slabs for polishing lines where a uniform base thickness decides final quality. Three grinding head diameters cover workshop to production-line duty, with optional worktable lengths to match the slab sizes being processed.

Stone Calibrating Applications & Materials

Calibration is the thickness-leveling step between cutting and polishing: slabs that enter the polishing line at uniform thickness leave it at uniform gloss.

Specs and options

Specifications customizable upon request.

Model	ZDDH-800	ZDDH-1000	ZDDH-1200
Grinding head diameter (mm)	880	1080	1350
Grinding head lifting stroke (mm)	100	100	100
Worktable size (optional, mm)	2500/3000×970	2500/3000×1100	2500/3000×1250
Water consumption (m³/h)	7.2	7.2	7.2
Main motor power (kW)	15	18.5	22
Total power (kW)	16.8	20.3	23.8
Dimensions L×W×H (mm)	5800×1700×1800 / 6400×1700×1800	6000×2200×2050 / 6700×2200×2050	6800×2350×2150 / 7400×2350×2150
Weight (t)	2.7	3.4	4.1

The ZDDH continuous calibrating machine levels slab thickness in a single pass before polishing — three grinding head diameters, optional table lengths, and the rigidity to hold depth constant across the whole slab.

Real Grinding Performance & Key Metrics

Grinding Head Range

Three head diameters scale removal capacity: ZDDH-800 for compact shops, ZDDH-1200 for production-line duty on hard granite.

Lifting Stroke

A 100 mm head lifting stroke covers normal slab thickness variation with controlled, repeatable depth setting.

Main Motor Power

Main power scales 15 / 18.5 / 22 kW across the series, holding cutting speed through hard granite at the rated removal rate.

Diameter-Scaled Grinding Head

Grinding head diameter sets removal capacity: larger heads carry more abrasive and cut a wider path, so the three diameters match the series to shop size and stone hardness instead of forcing one geometry on every line.

Depth-Rigid Machine Frame

Calibration only works if depth holds: the 2.7–4.1 t frame and guided head travel keep the set depth constant across the full slab width, which is what 'calibrated' means on the specification sheet.

Continuous Pass Design

Slabs feed through the station in one pass: the line keeps moving, thickness variation leaves the slab progressively, and the polishing line downstream receives material it can finish at uniform gloss.

FAQs

How to choose the ZDDH model, where calibration sits in the polishing line, and what to prepare before ordering.
