Manual Stone Cutter: The Indestructible Solution for High-Precision Edge Cutting

Name: Manual Stone Cutter: The Indestructible Solution for High-Precision Edge Cutting
Brand: DINOSAW
SKU: SYQJ-600
Availability: InStock

SYQJ-600

The DINOSAW metal bond diamond fickert is a cost-engineered grinding bar for automatic stone polishing lines. A particular structural design allows higher quality at lower cost, and strict diamond selection technology keeps the grit stable from bar to bar, so every piece on the head grinds the same way. The metal program covers grits 36#, 46#, 60#, 80#, 120#, 180# and 220# on the standard L140 x H15 mm bar format for line heads. Polishing fine grits such as 320# and 400# perform well enough to replace resin and magnesite products in the mid stages of the line. DINOSAW supplies the matching program around the metal bar — magnesite fickerts L140 x H50 mm in 36#-220# and synthetic fickerts L140 x H50 mm in 400#-1000# — so a complete grit schedule can be planned from one source.

Compatible Materials & Products

Workshop cutting and 45-degree chamfering for countertop edges, kerbstones, splash guards and daily trimming jobs.

Specs and options

Specifications customizable upon request.

Model	Unit	SYQJ-600WB	SYQJ-600ZB
Diameter of blade	mm	Φ350 - Φ600	Φ350 - Φ600
Main motor power	kw	7.5 - 11	15/18.5
Worktable size (L x W )	mm	2700x800	3000x800
Max. cutting size (L x W x H)	mm	2500x1200x180	3000x1200x180
Water consumption	m³/h	2 - 3	3
Overall dimensions	mm	4300x2300x1600	4900x2300x2200
Approximate Weight	t	1.8	2.5

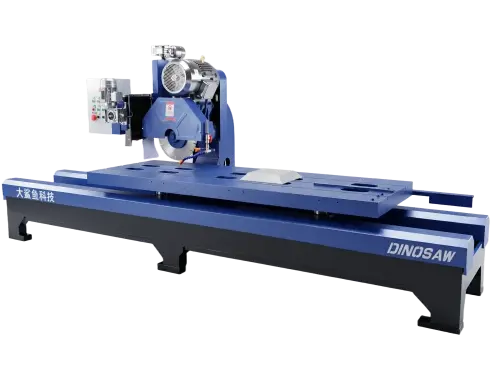

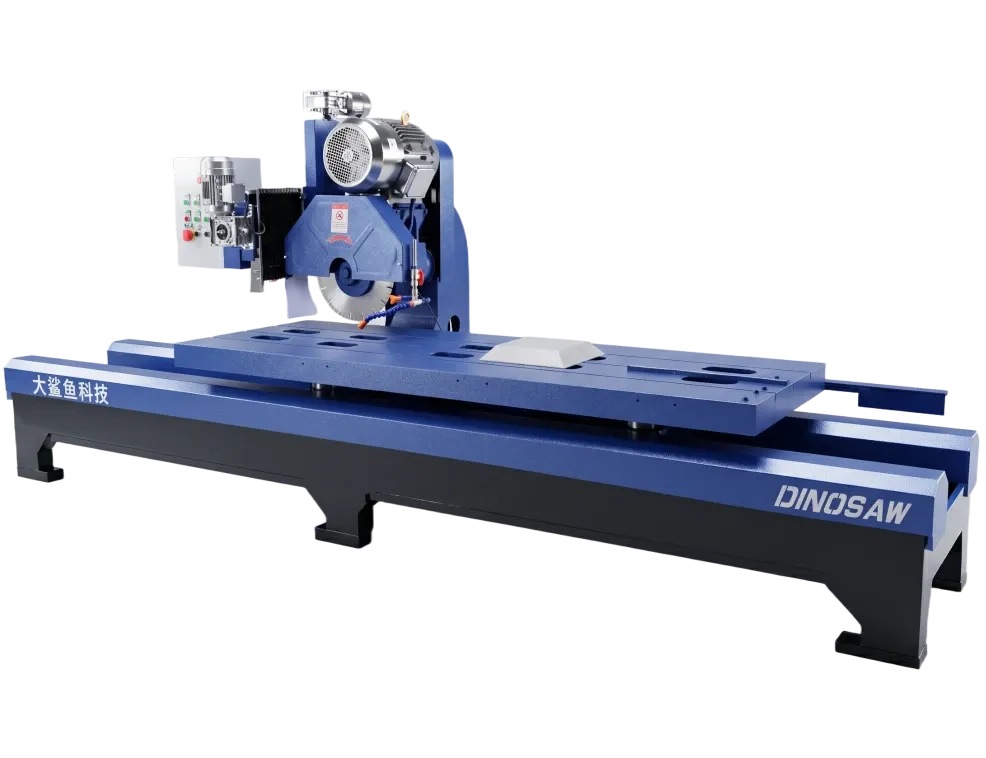

The SYQJ-600 manual stone cutting machine removes every electronic failure point from the cutting cycle — a tilting head cuts 45° chamfers, a cast iron frame holds stability, and the machine keeps working where power fluctuates and maintenance capacity is limited.

Real Cutting Performance & Key Metrics

Mechanical Control Platform

No PLC, servo drive or control card in the cutting control chain — fewer electronics to fail in dusty workshops or unstable power environments.

Precision Chamfering

The electric tilting cutting head angles to 45 degrees for precise chamfering on countertop edges, curbstones and splash guards.

Main Cutting Power

Up to 18.5 kW main motor (ZB configuration) powers through thick and hard stone without stalling.

Mechanical Control Simplicity

No CNC programming, PLC menu or servo setup: operators control feed, depth and angle directly, making the machine easy to learn and easy to keep running in workshops where specialist technicians are unavailable.

Oil-Immersed Guide Protection

Guide rails remain immersed in oil and protected from stone dust, keeping sliding surfaces lubricated and reducing wear in dirty cutting environments.

Compact Integrated Structure

The integrated body takes little workshop space, installs quickly and relocates more easily than a foundation-mounted cutting machine — practical for rented plants and growing workshops.
