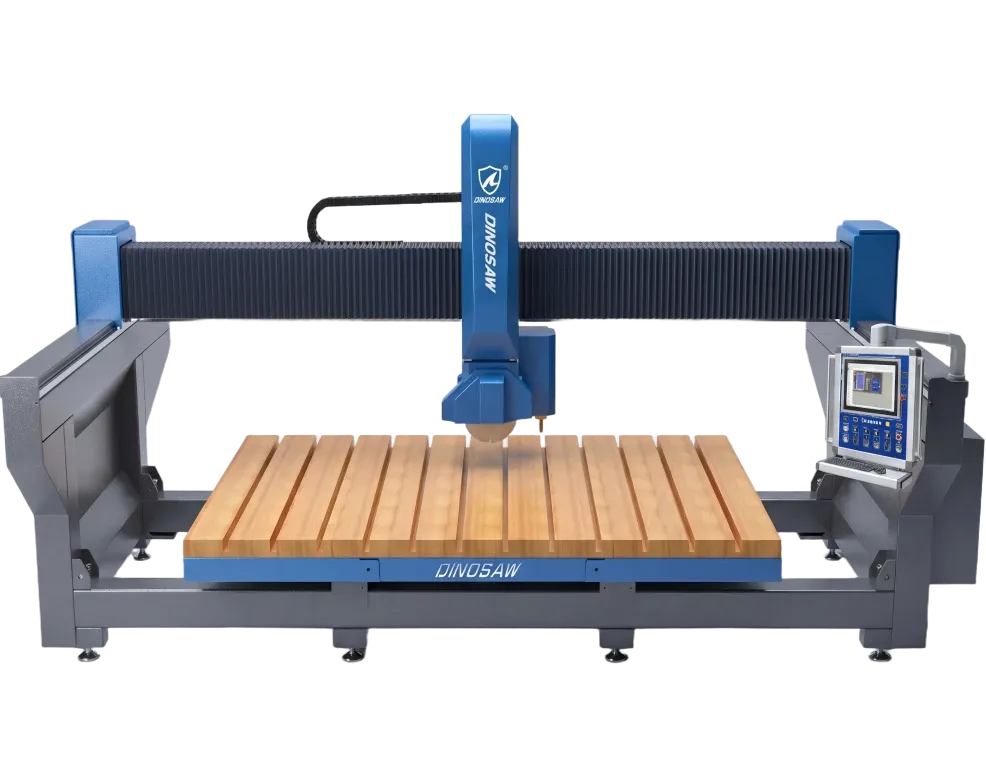

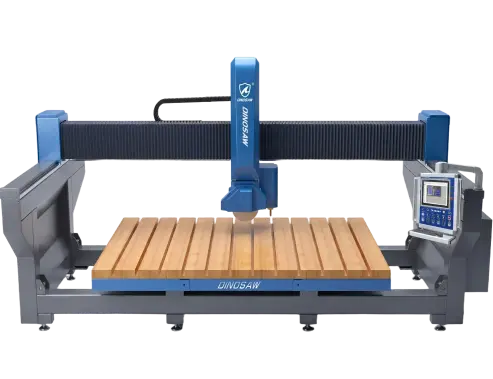

4+1 Axis Bridge Saw Cutting Machine

Name: 4+1 Axis Bridge Saw Cutting Machine
Brand: DINOSAW
SKU: DSQJ-400
Availability: InStock

DSQJ-400

The 4+1 Axis Bridge Saw integrates an engraving spindle for precision hole cutting and edge milling. Designed for sink and countertop fabrication with horizontal, vertical, rotational, and 45-degree bevel cutting capabilities including straight cuts, curved cuts, drilling operations. Perfect for granite, marble, quartz, sintered stone, and porcelain processing. The CNC system supports CAD import with one-click operation for automated continuous cutting, batch processing.

Compatible Materials & Products

Sink cutout and countertop fabrication where a 4+1 axis bridge saw handles profiling, milling and cutting in one setup.

Specs and options

Specifications customizable upon request.

Model	Unit	DSQJ-400
Blade diameter	mm	250 - 400
Max.cutting size	m	3.2x2.0x0.5
Worktable dimension	m	3.2x2.0
Blade rotate degree	/	0 - 360
Blade tilt degree	/	0 - 45
Worktable tilting degree	/	0 - 85
Worktable rotating degree	/	optional
Main motor	kw	15
Spindle motor	kw	7.5
Total motor	kw	24.5
Water consumption	m³/h	3.5
Weight	t	3.7
Overall dimensions	m	5.0x3.0x2.7

The DSQJ-400 adds a 7.5 kW milling spindle to a full bridge saw — sink holes, faucet openings and edge profiles happen in the same fixture as slab cutting, with CAD-import batch processing for countertop production.

Real Cutting Performance & Key Metrics

Max. Cutting Size

Covers standard slab formats up to 3.2 × 2.0 × 0.5 m for countertop and vanity programs.

Countertop Cutting Versatility

Horizontal, vertical, rotational and 45° bevel cuts plus spindle milling — straight cuts, curves and drilled holes without re-fixturing.

Integrated Milling Spindle

The milling spindle performs sink openings, holes and edge milling in the same setup as cutting — work that otherwise requires a second machine.

Integrated Milling Spindle

Moving a countertop from a bridge saw to a separate router creates a second setup, a second reference point and another alignment risk. The integrated 7.5 kW spindle performs sink holes, faucet openings and edge milling in the same fixture used for slab cutting.

4+1 Axis Blade Motion

Blade rotation over 360° with 0–45° tilt covers straight, curved and bevel cuts, so edge profiles are finished on the same machine.

Same-Reference Machining

Because milling and cutting share one fixture and one reference, hole positions stay true to the cut contour — the tolerance stack of unload-reload-align disappears.

FAQs

Common Questions About 4+1 Axis Bridge Saw Cutting Machine

Global Leader in CNC Machinery & Diamond Tools Manufacturing

Real Cutting Performance & Key Metrics

CE Certification

100+ Tech Patents

ISO 9001:2015

DINOSAW goes beyond merely complying with international engineering standards—we actively lead their formulation. As the principal drafter of key industry benchmarks for Stone Multi-Wire Saw Machines, CNC Wire Saw Machines, and Bridge Saws, we define the rules of precision manufacturing. Backed by ISO 9001, CE certification, and 100+ technology patents, our products guarantee exceptional durability and safety in the most demanding high-load environments.

Proven Expertise & Global Applications

75+

Countries Served Worldwide

20+

Industry machinery expertise

Trusted by clients in over 75 countries, DINOSAW delivers lifecycle quality traceability and specialized technical support across 20+ machinery sectors. From traditional mining and stone processing to high-precision manufacturing (semiconductors, quartz glass) and specialized fields like nuclear decommissioning, our comprehensive solutions consistently meet the world's most rigorous operational requirements.

Complete Production Solutions & Equipments

Choose equipment combinations for your product needs to establish efficient automated production lines and maximize profitability.

Adds textures, lettering, and decorative patterns to cut stone pieces. Enables complete memorial stone production workflow with reduced handling time and consistent quality.

Perfect upstream solution for initial slab preparation before precision cutting. The block cutting machine efficiently cuts large stone blocks into manageable slabs, feeding directly into the bridge saw workflow. This combination maximizes material utilization while maintaining consistent slab thickness for optimal bridge saw performance.

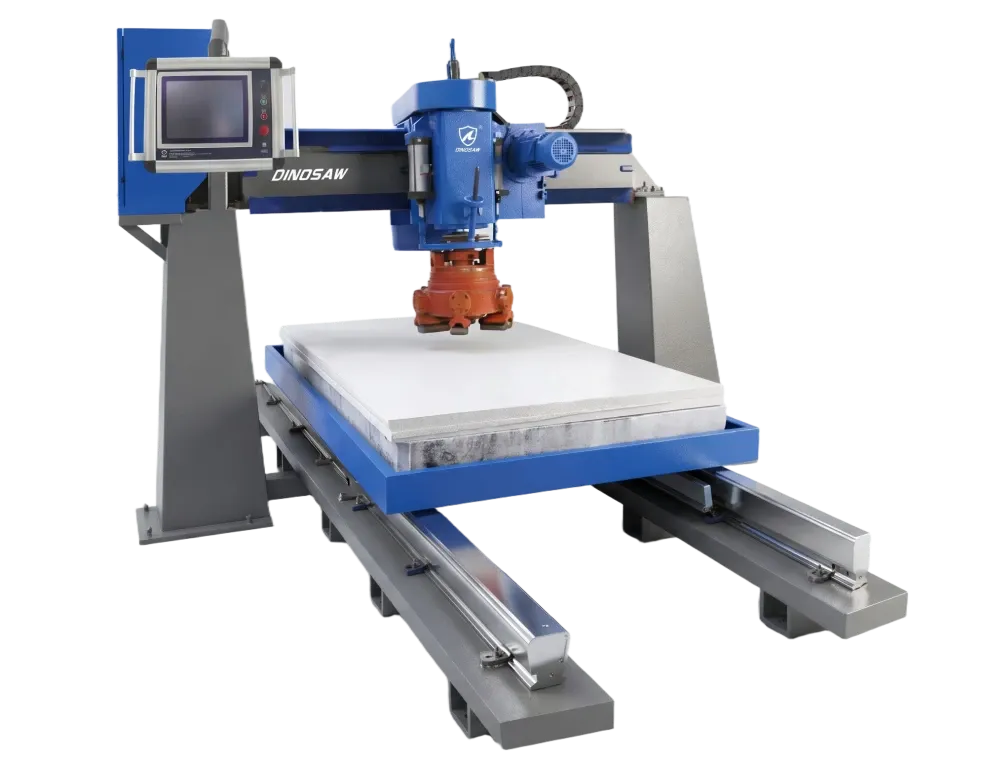

Automated polishing ensures consistent surface quality while reducing manual labor. When paired with the bridge saw, this creates a complete fabrication line from rough cutting to final polish, ideal for high-end countertop and architectural applications.
