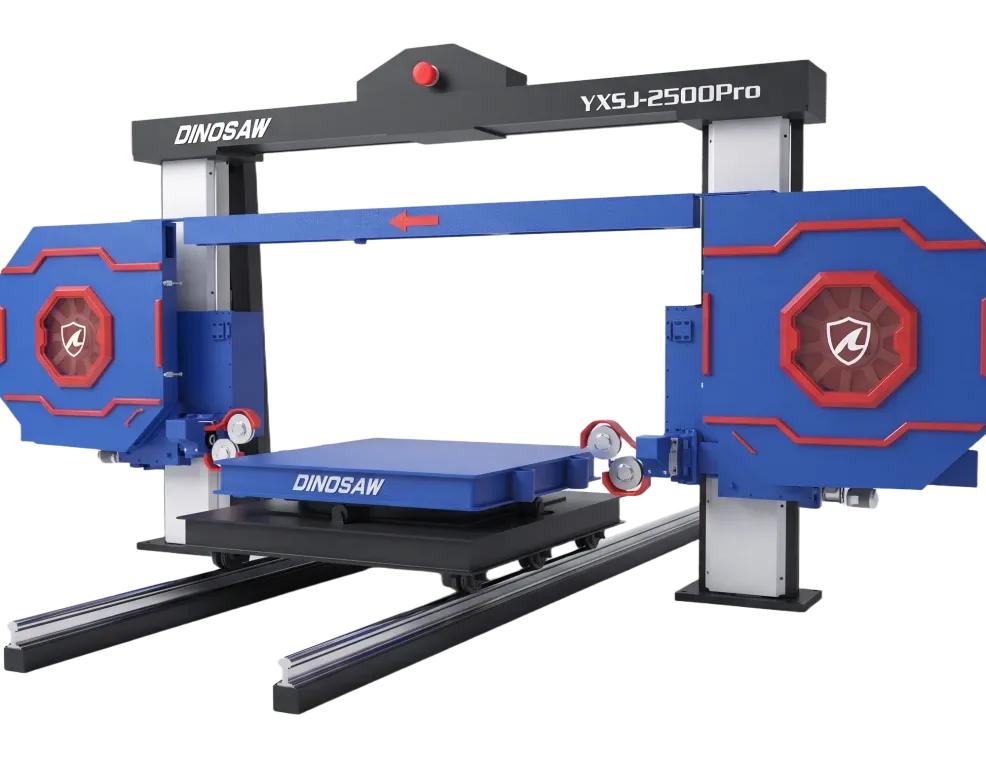

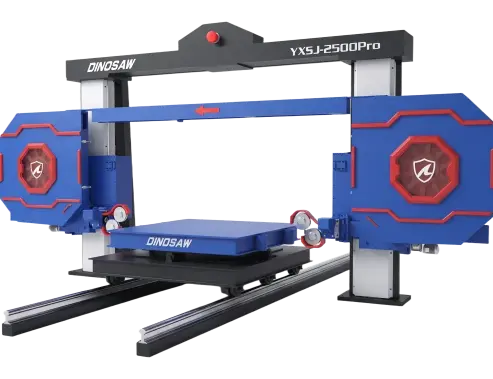

Diamond Wire Saw Cutting Machine for 3D Profiling & Slicing

A CNC diamond wire saw cutting machine is a precision stone cutting tool that uses a thin, flexible wire embedded with industrial diamond particles to cut through hard materials. The wire is guided by computer numerical control (CNC) systems along predetermined paths with multiple axis movements. As the diamond wire moves at high speed (typically 20-40 m/s), it gradually abrades through materials while water cooling systems maintain optimal cutting conditions and remove cutting debris.

The machine operates using a continuous loop of diamond wire that runs around a series of pulleys and guide wheels, with one end connected to a motor drive system. The CNC control system precisely positions the workpiece relative to the wire or moves the wire itself through computer-programmed cutting paths. This technology allows for cutting complex shapes with exceptional precision (±1mm) without the heat damage, vibration issues, or large kerf width associated with traditional blade cutting methods.

CNC diamond wire saw machines are exceptionally versatile and can cut through a wide range of hard materials including:

• Natural stones: granite, marble, limestone, sandstone, travertine, onyx, quartzite
• Engineered stones: quartz surfaces, sintered stones, terrazzo, concrete products
• Industrial materials: graphite, ceramics, glass, reinforced concrete, tungsten carbide
• Advanced materials: semiconductor materials, technical ceramics, carbon fiber composites

The diamond wire cutting technology is particularly effective for materials that are brittle, have varying densities, or are prone to thermal damage when cut using conventional methods. The water-cooled cutting process prevents overheating and maintains material integrity even in thermally sensitive materials. Additionally, the low-stress cutting action makes this technology ideal for materials with internal tensions that might crack under the higher-force impacts of blade cutting.

No, the diamond wire saw stone cutting machine is designed with user-friendliness as a priority:

• The intuitive touchscreen interface uses simple, graphical controls that operators can master quickly, unlike traditional CNC machines requiring complex programming knowledge
• No CAD programming is required for standard cutting operations
• Most operators can complete basic setup within 5 minutes after initial training, and a single operator can efficiently manage multiple machines simultaneously
• For complex shapes, our optional pattern library allows quick selection from pre-configured cutting paths

We provide comprehensive training for operators of all experience levels as part of our implementation package.

The DINOSAW CNC diamond wire saw cutting machine features an intuitive control system designed to balance sophisticated functionality with user-friendly operation. Key aspects of the control system include:

• User Interface: Touch-screen interface with visual programming options and multi-language support
• Programming Methods: Multiple options including direct drawing on-screen, importing CAD files, or using preset shape libraries
• Multi-Axis Control: Complex 3d cutting capabilities
• Adaptive Cutting: Intelligent systems that automatically adjust wire speed, tension, and feed rate based on material properties
• Remote Operation: Wireless control options allowing operators to monitor cutting from a safe distance

Operator expertise requirements are intentionally minimized through our user-centric design approach. New operators typically require only 1-2 days of training to become proficient with basic operations, compared to weeks or months with traditional G-code based CNC systems. The interface eliminates the need for complex programming knowledge, using intuitive visual tools instead of manual coding.

Our remote assistance capability enables direct support from DINOSAW technicians who can access the system (with permission) to troubleshoot issues or optimize settings without requiring on-site expertise.

Safety is a paramount concern in the design of DINOSAW CNC diamond wire saw cutting machines. Our systems incorporate multiple layers of protection to ensure operator safety and prevent equipment damage:

Physical Barriers: Enclosed cutting area with transparent impact-resistant shields and safety interlocks that prevent operation when guards are open

Emergency Systems: Multiple emergency stop buttons positioned at strategic locations and foot pedal emergency stops for hands-free activation

Wire Break Detection: Instant shutdown system that detects wire breakage or excessive tension within milliseconds

Overload Protection: Automatic systems that prevent motor overload, hydraulic pressure excess, or mechanical strain

Intelligent Monitoring: Continuous monitoring of critical parameters with automatic shutdown if unsafe conditions develop

Remote Operation: Wireless control options allowing operation from a safe distance during high-risk cutting operations

Safety Certification: Compliance with international safety standards including CE, ISO, and regional safety requirements

Beyond physical safety features, our machines include operational safeguards such as two-stage confirmation for critical operations, password-protected access to advanced settings, and visual/audible warnings before motion begins. The control system maintains detailed safety logs and requires acknowledgment of safety protocols during startup.

We also provide comprehensive safety training with each machine, including detailed manuals, safety demonstration videos, and in-person instruction on proper operating procedures. Regular safety updates are made available through our service network to address emerging safety considerations as technology evolves.

CNC diamond wire saw technology offers exceptional benefits across various industries and project types where precision cutting of hard materials is required:

Stone Fabrication:

• Kitchen and bathroom countertop manufacturers requiring complex shapes and cutouts
• Custom furniture producers creating stone tables, desks, and decorative elements
• Architectural element fabricators producing columns, balusters, and ornamental features

Monument Industry:

• Memorial and tombstone manufacturers requiring shaped monuments and custom designs
• Public art and sculpture studios working with stone and composite materials
• Historical restoration specialists recreating period architectural elements

Construction and Renovation:

• Specialty contractors handling precision modification of existing concrete structures
• Historic building restoration requiring minimal vibration cutting techniques
• Custom home builders creating bespoke architectural features

Industrial Applications:

• Graphite electrode manufacturers
• Advanced ceramics producers requiring precision cutting
• Semiconductor and electronics industry cutting specialized materials

Projects that particularly benefit from CNC diamond wire saw technology include those requiring complex curved shapes, thick material cutting, preservation of material integrity, and applications where minimal material waste is economically important. The technology is especially valuable for high-value materials where precision cutting directly impacts the final product value and quality.

CNC diamond wire saw technology continues to evolve rapidly, with several key innovations on the horizon that will further enhance capabilities and performance. DINOSAW remains at the forefront of these developments:

• Advanced Material Science: Next-generation diamond wires with nano-structured diamond particles and enhanced matrix compositions will increase cutting speed by up to 30% while extending wire life
• Artificial Intelligence Integration: Machine learning algorithms are being developed to dynamically optimize cutting parameters in real-time based on material variations, cutting patterns, and environmental conditions
• Automation and Robotics: Enhanced integration with robotic material handling systems for fully automated production lines capable of 24/7 operation with minimal human intervention
• Digital Twin Technology: Creating virtual replicas of physical cutting operations to simulate and optimize processes before actual cutting begins, reducing waste and improving outcomes
• Ultra-thin Wire Technology: Development of sub-1mm diamond wires that reduce kerf width by 30%, maximizing material yield for precious stone applications
• Augmented Reality Interfaces: AR systems that overlay cutting paths, material information, and operational guidance directly onto the work surface for enhanced operator precision
• Sustainable Innovations: Zero-waste water systems and energy-neutral operation through renewable power integration and advanced energy recovery

DINOSAW's research and development program actively pursues these technological frontiers while maintaining our focus on practical, reliable solutions that deliver measurable benefits to our customers. Our user-centric innovation approach ensures that advanced technologies are implemented in ways that enhance productivity and quality without compromising ease of use or maintenance.

As the industry evolves, we anticipate CNC diamond wire saw technology will continue expanding into new materials and applications, including advanced composites, engineered building materials, and specialized industrial components where precision cutting of hard materials is essential.
