Diamond Saw Blade for Granite

Name: Diamond Saw Blade for Granite
Brand: DINOSAW
SKU: 250mm-3000mm
Availability: InStock

250mm-3000mm

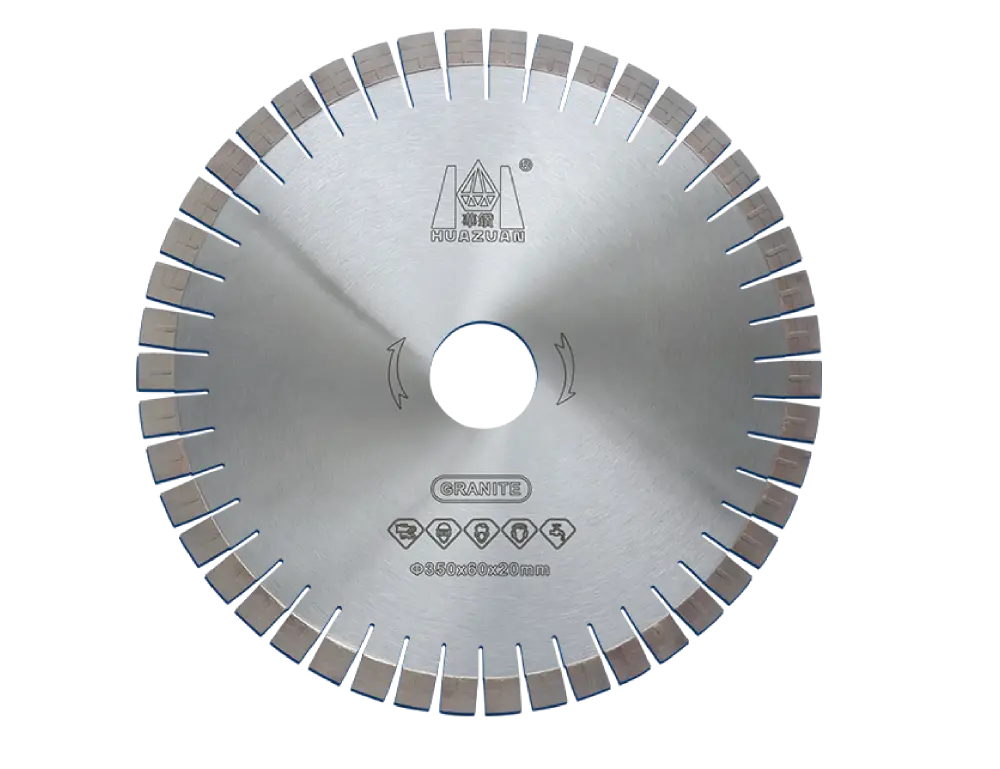

Our granite diamond saw blades are designed for all types of granite. Featuring various segment designs like M-shape or multi-layer, and available in standard or silent core options, these blades are built for versatility. The blade segments are securely attached using laser welded or hot-pressed technology for maximum durability. Engineered for a long life, these fast-cutting segments help you complete projects cost-effectively. The blades provide smooth, chip-free cuts that reduce material waste and secondary finishing.

Compatible Materials & Products

Precision Cutting for Natural Stone Slabs and Countertops

Specs and options

Specifications customizable upon request.

Diameter		Segment Specification (Length/Width/Height)			Teeth No.
Inches	mm	Length/mm	Thickness/mm	Height/mm	pcs
10"	250	40	3	15	17
12"	300	40	3	15	21
14"	350	40	3.2	15/20	24
16"	400	40	3.4	15/20	28
18"	450	40	4	15/20	32
20"	500	40	4.2	15/20	36
24"	600	40	4.8	15/20	42
28"	700	40	5.2	15/20	42
32"	800	40	5.6	15/20	46
36"	900	24	6/7	15/20	64
40"	1000	24	6.5/7.5	15/20	70
48"	1200	24	6.5/7.5	15/20	80
51"	1300	24	7.5/8	15/20	88
56"	1400	24	8.5/8.5	15/20	92
64"	1600	24	8.4/9.2	15/20	108
72"	1800	24	9.5/10.5	15/20	120
80"	2000	24	9.5/10.5	20/30	128
88"	2200	24	10.5/11.5	20/30	132
100"	2500	24	11.5/12.5	20/30	140
120"	3000	24	11.5/12.5	20/30	160

DINOSAW granite diamond saw blades are a hardness-matched blade system spanning bridge saws and multi-blade block cutters — 250 to 3000 mm, with M-shape and multi-layer segment configurations, silent core options and large-diameter core stability engineered per machine class.

Real Cutting Performance & Key Metrics

Full Diameter Range

Bridge saw blades at the small end, large block-cutting blades at the upper end — one blade family across the granite cutting floor.

Segment Height Options

Two segment heights match blade duty and re-grinding economics: taller segments serve heavy block cutting, standard heights cover bridge saw production.

Segment Configurations

Two segment architectures cover different granite programs: M-shape for free-cutting behavior, multi-layer for controlled wear in demanding abrasive stone.

Granite-Specific Formulation

Granite is not one cutting condition: diamond grade, concentration and bond hardness are selected around the stone's hardness and abrasiveness, so soft commercial granite and hard abrasive granite do not run on the same compromise formulation. DINOSAW matches the formulation to your granite class — sample evaluation settles the specification before production orders.

M-Shape vs. Multi-Layer Selection

M-shape segments prioritize free cutting and kerf opening; multi-layer designs distribute diamond and bond structure through the wear zone for controlled life in demanding programs. The choice follows the granite class and production targets — trial cuts on your stone confirm the configuration rather than a fixed formula.

Steel Core Flatness & Tension

The segment can only cut as straight as the steel core runs: core flatness and factory tensioning keep large-diameter blades tracking through long cuts instead of wandering, heating unevenly or loading the spindle — the foundation of cut quality on 2000–3000 mm blades.

FAQs

Common Questions About Diamond Granite Saw Blades

Global Leader in CNC Machinery & Diamond Tools Manufacturing

Real Cutting Performance & Key Metrics

CE Certification

100+ Tech Patents

ISO 9001:2015

DINOSAW goes beyond merely complying with international engineering standards—we actively lead their formulation. As the principal drafter of key industry benchmarks for Stone Multi-Wire Saw Machines, CNC Wire Saw Machines, and Bridge Saws, we define the rules of precision manufacturing. Backed by ISO 9001, CE certification, and 100+ technology patents, our products guarantee exceptional durability and safety in the most demanding high-load environments.

Proven Expertise & Global Applications

75+

Countries Served Worldwide

20+

Industry machinery expertise

Trusted by clients in over 75 countries, DINOSAW delivers lifecycle quality traceability and specialized technical support across 20+ machinery sectors. From traditional mining and stone processing to high-precision manufacturing (semiconductors, quartz glass) and specialized fields like nuclear decommissioning, our comprehensive solutions consistently meet the world's most rigorous operational requirements.

Complete Production Solutions & Equipments

Choose equipment combinations for your product needs to establish efficient automated production lines and maximize profitability.

Extend the life of your saw blade core with our replacement diamond segments for granite, suitable for blades from 400mm to 600mm and larger. These segments feature the same advanced diamond matrix formulation, ensuring your re-tipped blades perform like new. This is a key part of granite saw blade making.

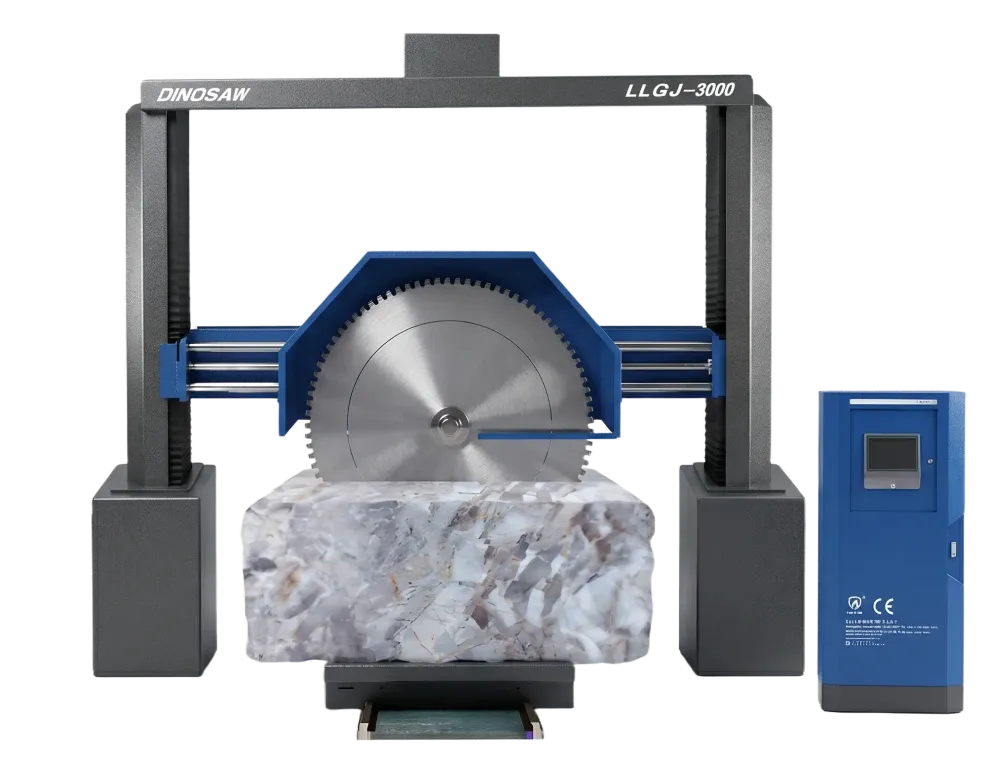

Pair our granite saw blades with this robust block cutter for primary slabbing. The machine is designed to handle large-diameter blades, providing the power and stability needed for straight, efficient cuts on granite blocks. Confirm blade diameter and arbor size specifications with machine data before use.

This CNC bridge saw is ideal for complex countertop fabrication, using our granite blades for precise straight and miter cuts. Its 5-axis capability allows for versatile cutting operations, maximizing the performance of blades with specific segment heights and bond types. Always match blade specs with machine guidelines.

Factory Direct Sales & Competitive Pricing

Buy directly from our factory to eliminate middleman markups. We provide processing plants with heavy-duty machines at factory-direct prices, helping you lower equipment costs and shorten your payback period.

We offer profitable wholesale programs for global distributors. For specialized applications, our engineering team provides OEM/ODM customization—adjusting machine dimensions, motor power, and CNC parameters to fit your exact material workflow.
