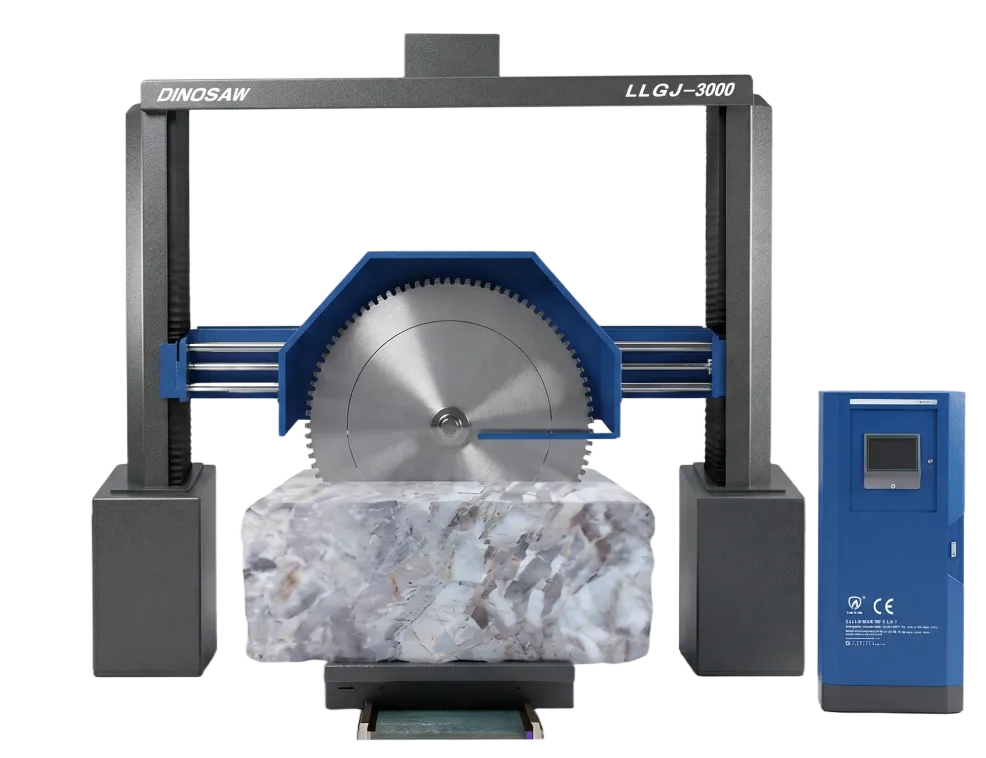

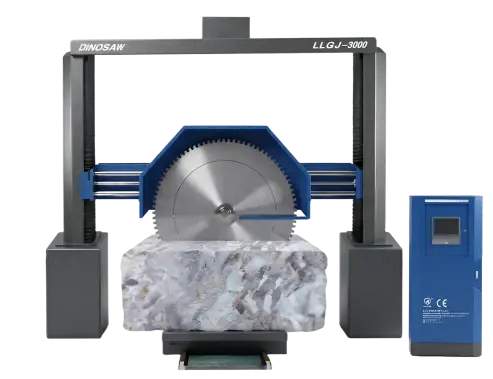

Gantry Stone Block Cutting Machine for Granite, Marble & Bluestone

Name: Gantry Stone Block Cutting Machine for Granite, Marble & Bluestone
Brand: DINOSAW
SKU: LLQJ-2200/2500/3000
Availability: InStock

LLQJ-2200/2500/3000

Gantry stone block cutting machine has strong crossbeam structure with heavy steel frame and hydraulic lifting system. PLC automation controls multi-blade setup for even slab thickness. Good design ensures stable cutting with less shaking for steady work. This flexible equipment cuts granite, marble, limestone, sandstone, travertine, bluestone, basalt, slate, and quartzite for many uses. Quarries and stone factories use this technology for tombstone cutting, monument production, kerb stone making, and standard slab production.

Compatible Materials & Products

Versatile Stone Block Cutting for Premium Slab Products

Specs and options

Specifications customizable upon request.

Model	Unit	LLQJ - 2200	LLQJ - 2500	LLQJ - 3000
Max. diameter of blade	mm	2200	2500	3000
Max. No. of blades	pc	3	1	1
Recommended Blade Combination	mm	2200 1600 940	2500	3000
Recommend saw blade thickness	mm	6.5	8.0	8.0
Main motor power	kw	30	30	37
Table dimensions (L x W)	mm	2000x2000	2000x2000	2000x2000
Max. cutting size (L x W x H)	mm	3000x2000x950	3000x2000x1100	3400x2000x1350
Overall dimensions (L x W x H)	mm	6600x6000x4800	6600x6000x4800	7000x4700x6000
Water consumption	m³/h	10	10	10
Approximate weight	t	9	9	12

The LLQJ gantry cutting machine turns blocks into slabs with a heavy crossbeam, PLC multi-blade control and variable-speed cutting — cutting labor needs by about 60% while keeping thickness even across the whole block.

Real Cutting Performance & Key Metrics

PLC Automation

PLC automation controls cutting cycles, feed and repeated passes, reducing labor needs by about 60% against manual operation.

Even Slab Thickness

Multi-blade setups space blades evenly across the block for consistent slab thickness in every pass.

Variable-Speed Cutting

A frequency converter tunes cutting speed per stone hardness — faster on limestone and marble, controlled on abrasive granite, basalt and quartzite.

Heavy Gantry Crossbeam

The heavy steel gantry distributes cutting load across a wide frame, reducing vibration during long block cuts and keeping slab thickness stable through repeated production cycles.

PLC Multi-Blade Control

PLC control manages cutting sequences, feed and repeated passes for multi-blade programs — reducing operator dependence and keeping every cycle consistent.

Variable-Speed Cutting

The frequency converter matches feed and cutting speed to stone hardness — faster on limestone and marble, controlled on abrasive granite, basalt and quartzite.
