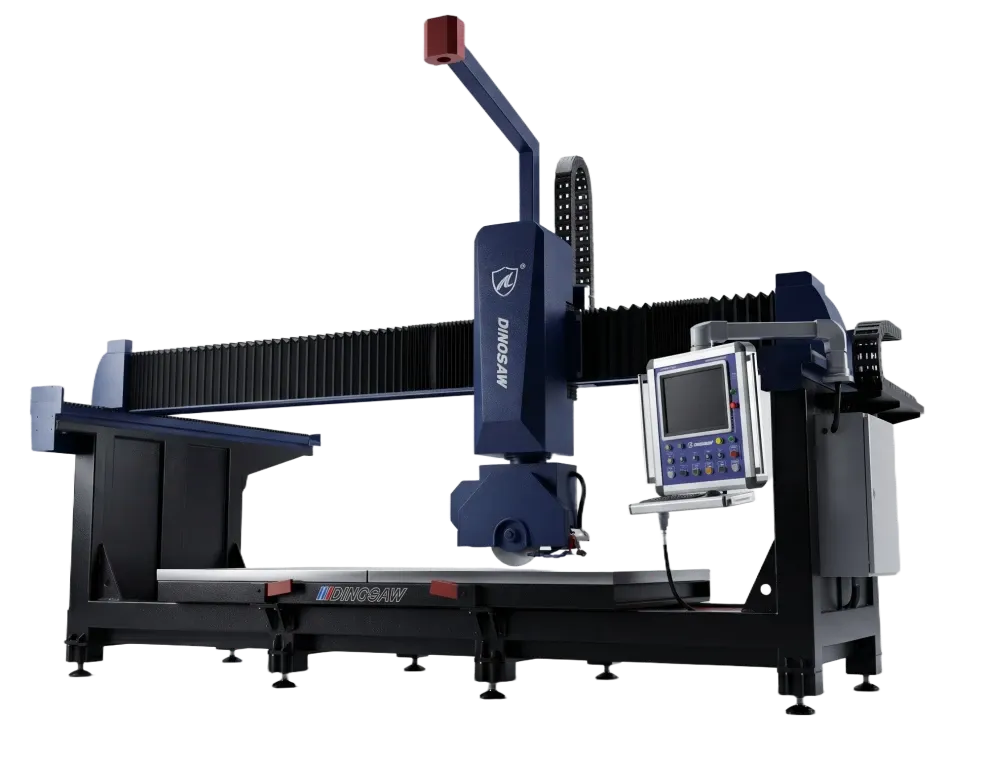

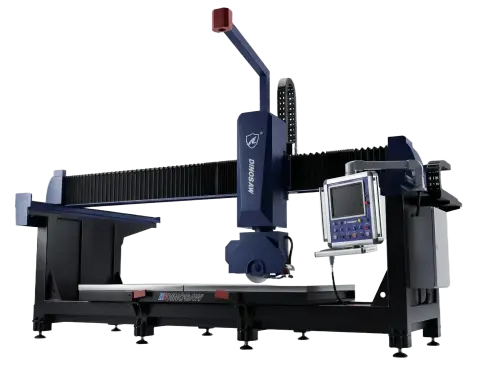

5-Axis CNC Bridge Saw

Name: 5-Axis CNC Bridge Saw
Brand: DINOSAW
SKU: WZQJ-5N
Availability: InStock

WZQJ-5N

DINOSAW 5-Axis CNC Bridge Saw achieves ±0.05mm precision cutting with DDX control system. Features straight, angled, curved, and 3D cutting capabilities, plus drilling and edge polishing. Direct CAD file import supports DXF, DWG formats. Processes granite, marble, quartz, ceramic, porcelain, terrazzo, and sintered stone for vanity tops, basins, sculptures, countertops, and sinks. Integrated camera system reduces material waste by 30% through optimized nesting.

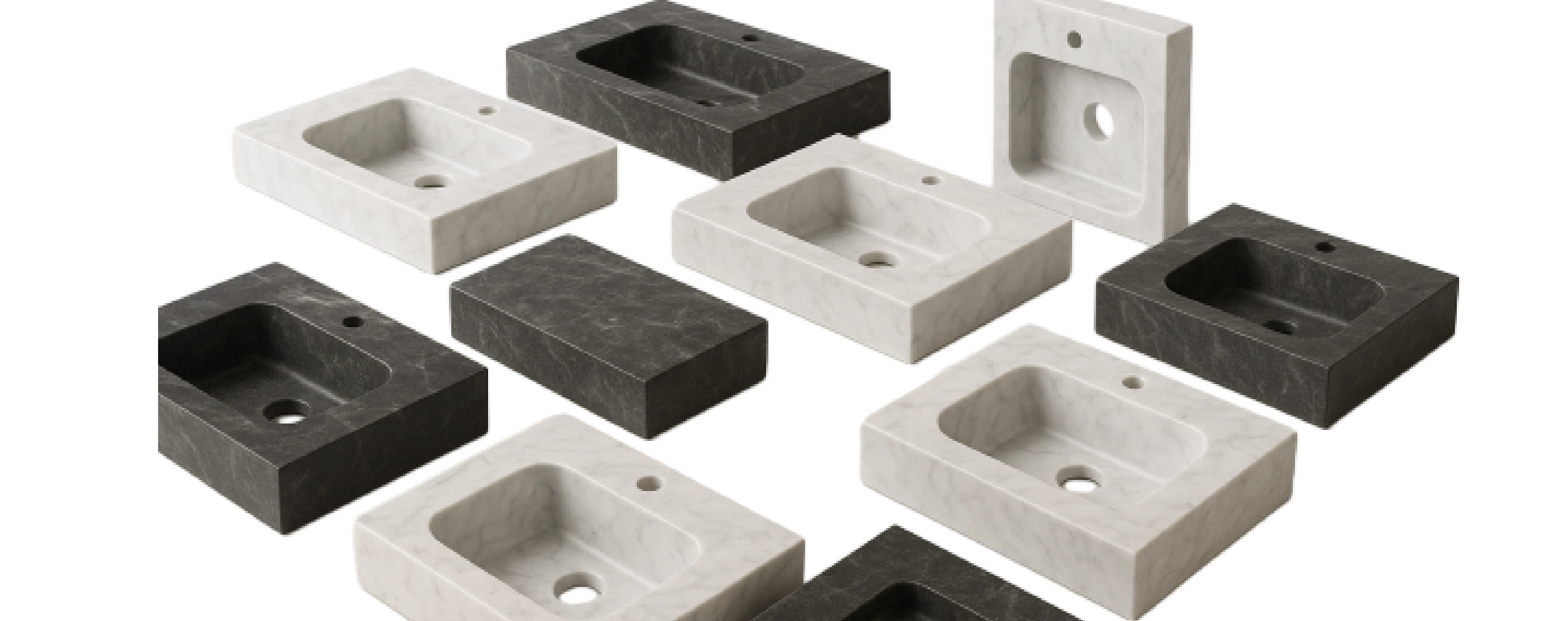

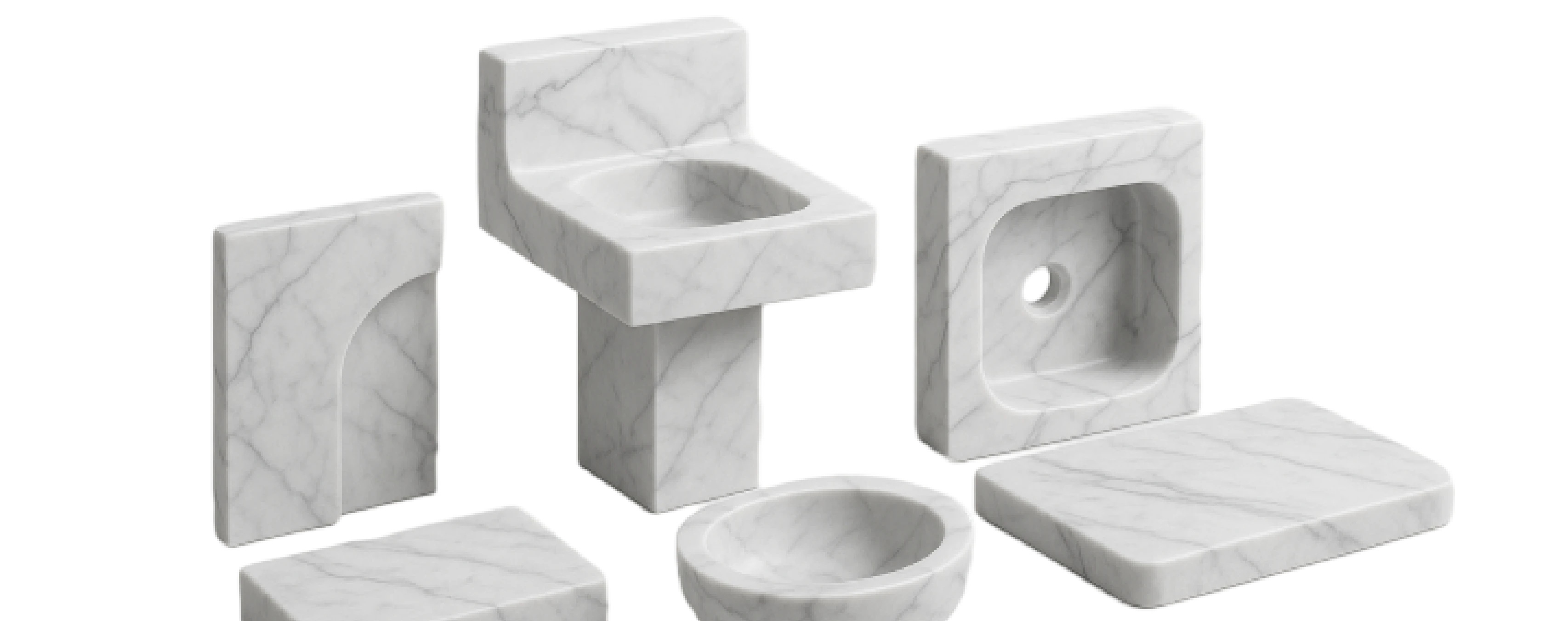

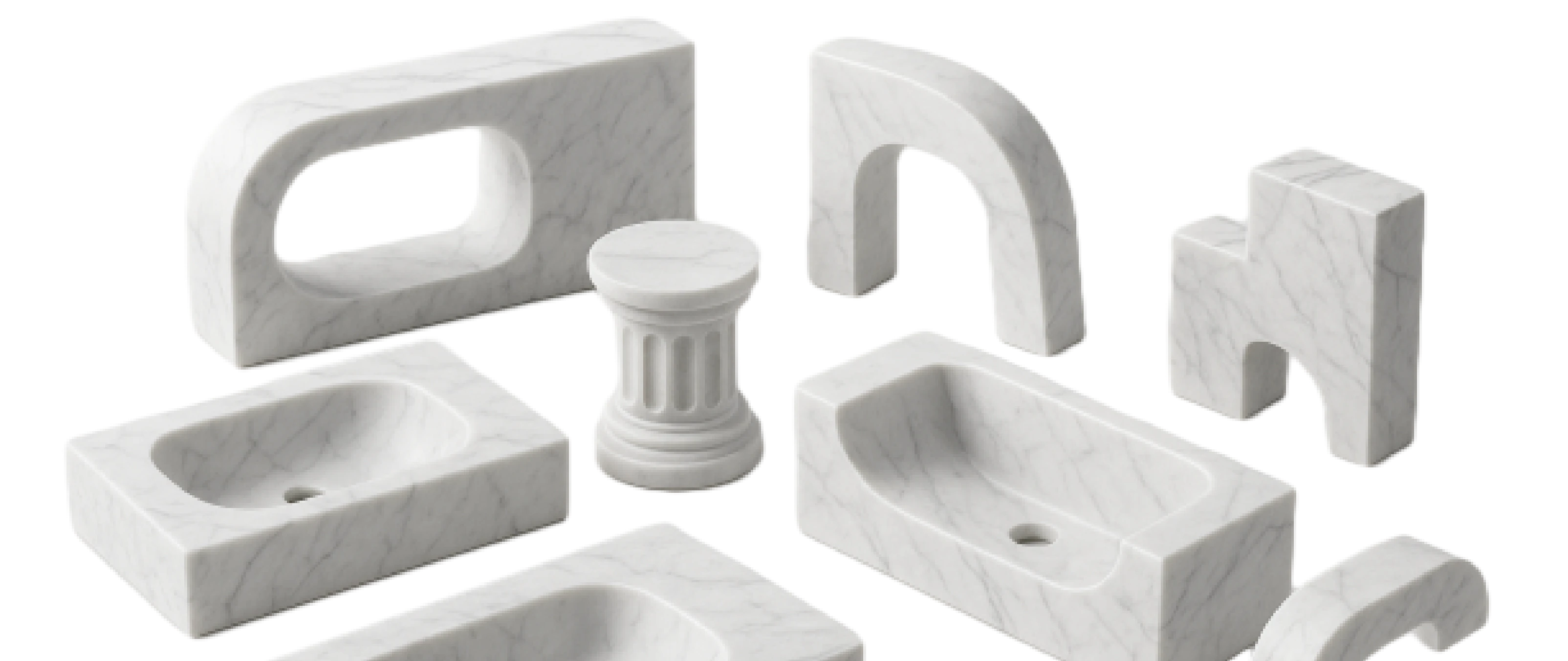

Compatible Materials & Products

Transform Any Stone Into Premium Products

Specs and options

Specifications customizable upon request.

Model	Unit	WZQJ - 5N
Lateral X stroke	m	3.2
Longitudinal Y stroke	m	2.0
The Z axis saw blade vertical stroke	m	0.45
Saw blade diameter	m	0.6
Spindle motor capacity	kw	18.5
Fixed table	m	3.2x2.0

We can customize 5-axis bridge saws equipped with 800mm diameter blades, specifically designed for 3D sculpture cutting applications.

The WZQJ-5N is a high-end five-axis stone fabrication platform: ±0.05 mm path-optimized precision, DDX camera nesting that cuts slab waste by 15–20%, and a drawing-to-toolpath workflow from DXF import to Auto CAM — with vacuum handling and an independent milling spindle available as options.

Real Cutting Performance & Key Metrics

Five-Axis Cutting Precision

DDX-controlled toolpath optimization holds ±0.05 mm on sink cutouts and complex contour profiles.

Automatic Nesting

Camera capture and DDX nesting optimize part placement before cutting, improving slab utilization on countertop and shaped-part programs.

Drawing-to-Toolpath Workflow

Import customer DXF files directly and let EasySTONE NC generate the machining path automatically, reducing manual programming between jobs.

Five-Axis Stone Machining

X/Y/Z linear axes plus A/C rotary axes control the blade from multiple angles, covering sink cutouts, bevels, curved contours and complex 3D stone profiles in one machining platform.

Dual CNC System Options

Choose the control system around the production task: DINOSAW's in-house platform focuses on streamlined countertop workflows, parameter templates, production-line integration and customization, while DDX EasySTONE NC adds mature nesting, DXF/Auto CAM, simulation and complex 3D machining.

DDX Automatic Nesting & Camera Planning

The camera captures the slab and DDX optimizes part placement before cutting, typically reducing waste by around 15–20% on nesting-intensive jobs.
