Automatic Stone Drilling Machines for Stone Core Drill

Name: Automatic Stone Drilling Machines for Stone Core Drill
Brand: DINOSAW
SKU: LMZK-600 / ZDZK-300
Availability: InStock

LMZK-600 / ZDZK-300

DINOSAW stone drilling machines include gantry and vertical models with PLC control systems. These machines drill holes up to 600mm in diameter and depths up to 900mm. Equipped with 22kW high-power motors and variable frequency drives, they adjust drilling speed based on material hardness. Used for processing granite, marble, blue limestone, travertine, and engineered stone in factory settings. These machines produce rough-shaped stone products including columns, balusters, bollards, vases, bathtubs, urns, memorial products, stone benches, fish tanks, planters, and lanterns.

Compatible Materials & Products

Factory Stone Processing Solutions with 600mm Drilling Capacity

Specs and options

Specifications customizable upon request.

DINOSAW automatic stone drilling machine

The DINOSAW stone core drilling range produces complete cylindrical blanks — Ø15–600 mm cores to 900 mm deep for vases, urns, bathtubs and vessel bodies — with a factory-volume gantry LMZK-600 and a compact vertical ZDZK-300 for small shops.

Real Drilling Performance & Key Metrics

Large Core Capacity

The LMZK-600 drills cores to 600 mm diameter — one-piece cylindrical blanks for large vases, bathtubs and monument components without splitting and gluing.

Deep Core Drilling

900 mm maximum drilling depth covers tall urns, column segments and deep vessel blanks in a single clamping.

LMZK Gantry Power

The LMZK-600's 22 kW main motor keeps feed rates productive in hard granite and blue limestone at full diameter and depth.

Full-Cylinder Core Extraction

A hollow diamond core bit removes a complete cylinder from the stone in one operation, creating solid vase, urn or column stock without assembling segmented pieces — no glue seams, no weakness planes, no watertightness risk in the finished vessel.

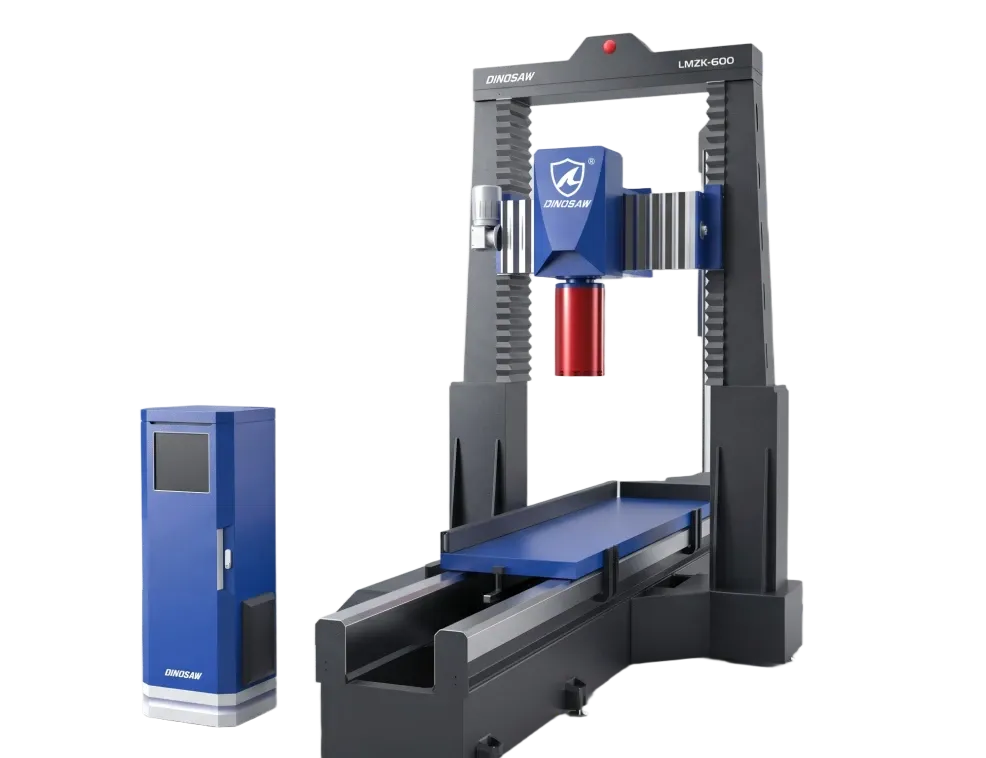

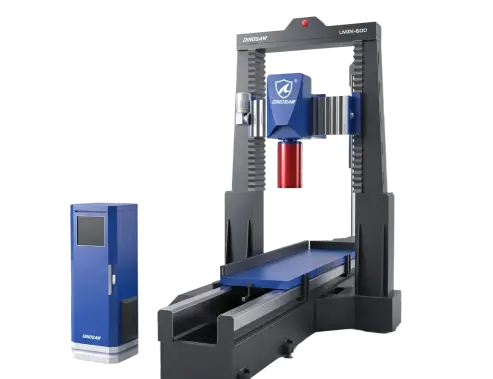

LMZK Gantry for Large Cores

The 4.9 t gantry frame holds the drilling head and block stable through Ø600 mm, 900 mm-deep cores: alignment error compounds with depth, and the rigidity is what keeps core walls straight and breakage rates low at production volume.

ZDZK Compact Vertical Layout

The ZDZK-300 vertical layout concentrates Ø300 mm drilling into 1.2 tonnes and 1300 × 800 mm of floor — monument shops and small factories core blanks without a gantry line, at an investment scaled to moderate volumes.

FAQs

Common Questions About DINOSAW Stone Drilling Machines

Global Leader in CNC Machinery & Diamond Tools Manufacturing

Real Drilling Performance & Key Metrics

CE Certification

100+ Tech Patents

ISO 9001:2015

DINOSAW goes beyond merely complying with international engineering standards—we actively lead their formulation. As the principal drafter of key industry benchmarks for Stone Multi-Wire Saw Machines, CNC Wire Saw Machines, and Bridge Saws, we define the rules of precision manufacturing. Backed by ISO 9001, CE certification, and 100+ technology patents, our products guarantee exceptional durability and safety in the most demanding high-load environments.

Proven Expertise & Global Applications

75+

Countries Served Worldwide

20+

Industry machinery expertise

Trusted by clients in over 75 countries, DINOSAW delivers lifecycle quality traceability and specialized technical support across 20+ machinery sectors. From traditional mining and stone processing to high-precision manufacturing (semiconductors, quartz glass) and specialized fields like nuclear decommissioning, our comprehensive solutions consistently meet the world's most rigorous operational requirements.

Complete Production Solutions & Equipments

Choose equipment combinations for your product needs to establish efficient automated production lines and maximize profitability.

This essential first step in stone processing cuts large raw blocks into manageable sizes before drilling operations. With precise hydraulic positioning and diamond blades, it creates accurately sized blocks that become the foundation for all subsequent core drilling work.

Perfect for creating complex outlines in large stone blocks before drilling operations. This wire saw creates precise contours for irregular products like urns, benches, and sculptural elements. The diamond wire allows cutting in any direction with minimal kerf loss, preparing blocks for core drilling operations.

This lathe creates cylindrical exteriors for products before core drilling. Used for making balusters, columns, vases, and planters, it cuts outer forms to exact measurements. After CNC turning, products move to drilling machines where central cores are created.

Factory Direct Sales & Competitive Pricing

Buy directly from our factory to eliminate middleman markups. We provide processing plants with heavy-duty machines at factory-direct prices, helping you lower equipment costs and shorten your payback period.

We offer profitable wholesale programs for global distributors. For specialized applications, our engineering team provides OEM/ODM customization—adjusting machine dimensions, motor power, and CNC parameters to fit your exact material workflow.
