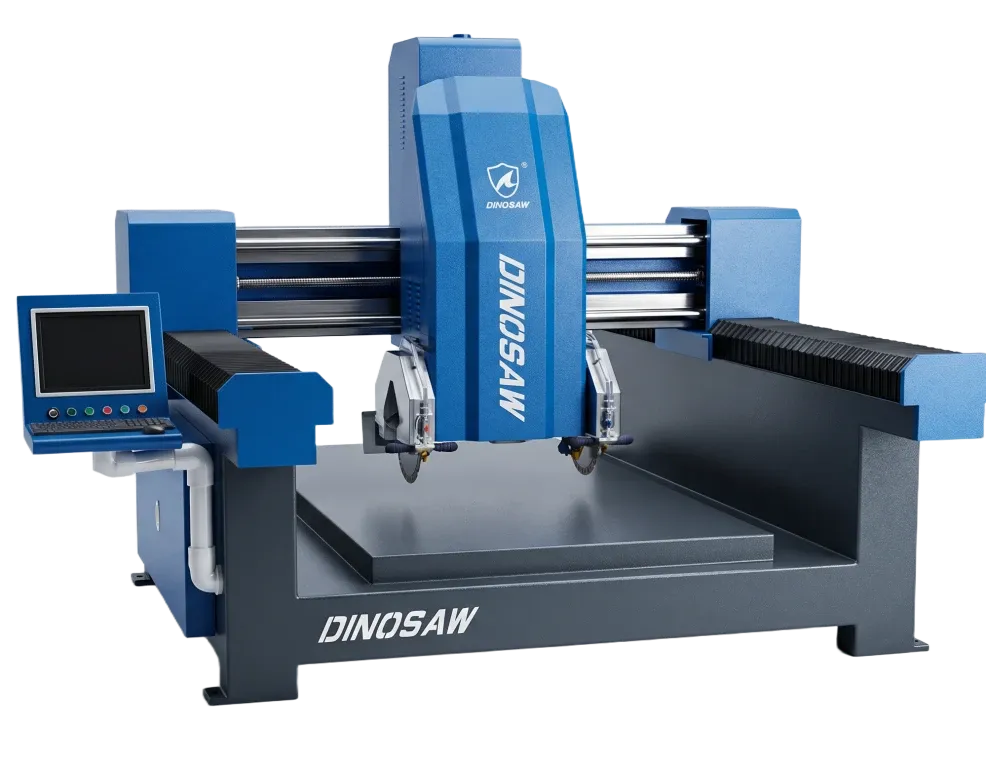

Integrated CNC stone profiling machine

Name: Integrated CNC stone profiling machine
Brand: DINOSAW
SKU: SKFX-1630/1635/1835
Availability: InStock

SKFX-1630/1635/1835

The Dinosaw CNC Stone Profiling Machine is a high-precision stone cutting and profiling device specifically designed for stone processing factories. This machine enables automatic grinding and continuous operation, directly importing design files to handle various complex stone profiling tasks. It is widely used in natural stone architectural decoration, tombstone production, and stone railing processing.

Compatible Materials & Products

Linear molding production: window sills, door surrounds, skirting, coping, kerbstone profiles and architectural lines.

Specs and options

Specifications customizable upon request.

Specification	Integrated SKFX-1630/1635/1835	Bridge Single-Beam SKFX-3300	Bridge Double-Beam SKFX-3500
Machine size (mm)	3200×4900×2200	3550×4850 (highly customized)	4500×4900 (highly customized)
Platform size (mm)	1800×3200 (customizable)	—	2500×3300
Machine travel (mm)	1100×3300×350	1200×3300×420	1200×3300×420
Stone thickness (mm)	100–1000 (feeding can be customized)
Spindle power (kW)	15	18.5	22
Blade spacing (mm)	850	850	1200 (customizable)
Blade diameter (mm)	300–600	300–600	500–800
Control system / Run command	Wecon CNC · G code · AC 380V/50Hz · Machining accuracy ±0.05 mm
Machine weight (t)	3.5	7	8

The SKFX parameter-driven stone molding machine turns profile dimensions into automatic cutting paths: the operator enters X length, Z height and R radius, the system calculates blade compensation and previews the shape in 3D, and standard saw blades cut the molding — no CNC programming, no dedicated shape tools.

Real Profiling Performance & Key Metrics

Profile Accuracy

Full-servo motion holds complex molding cross-sections within ±0.05 mm across repeat production — five times better than the ±0.25 mm industry standard.

Parameterized Profile Creation

Operators enter line segments, X/Z dimensions and R radii; the software generates the toolpath automatically — ordinary workers create new profiles without a CAD/CAM specialist.

Tooling Cost

Standard saw blades replace dedicated profile cutters for changing decorative line shapes, cutting tooling cost by more than 50%.

Parameterized Profile Creation

Instead of drawing every profile in CAM, the operator enters the segment dimensions — X length, Z height and R radius — and the system builds the cross-section automatically. Custom sections arrive as DXF imports, so both standard lines and client-specific profiles have a direct path to production.

Automatic Toolpath Compensation

The control calculates blade compensation and cutting passes automatically from the profile geometry, removing the manual tool-offset work that normally depends on an experienced CAD/CAM operator.

3D Preview Before Cutting

The generated profile and compensated toolpath are previewed in 3D before machining, allowing the operator to verify the shape on screen before the blade enters the stone — errors are caught in preview, not in the workpiece.
