Monoblock Bridge Saw CNC Stone Cutter

Name: Monoblock Bridge Saw CNC Stone Cutter
Brand: DINOSAW
SKU: YTQJ-600
Availability: InStock

YTQJ-600

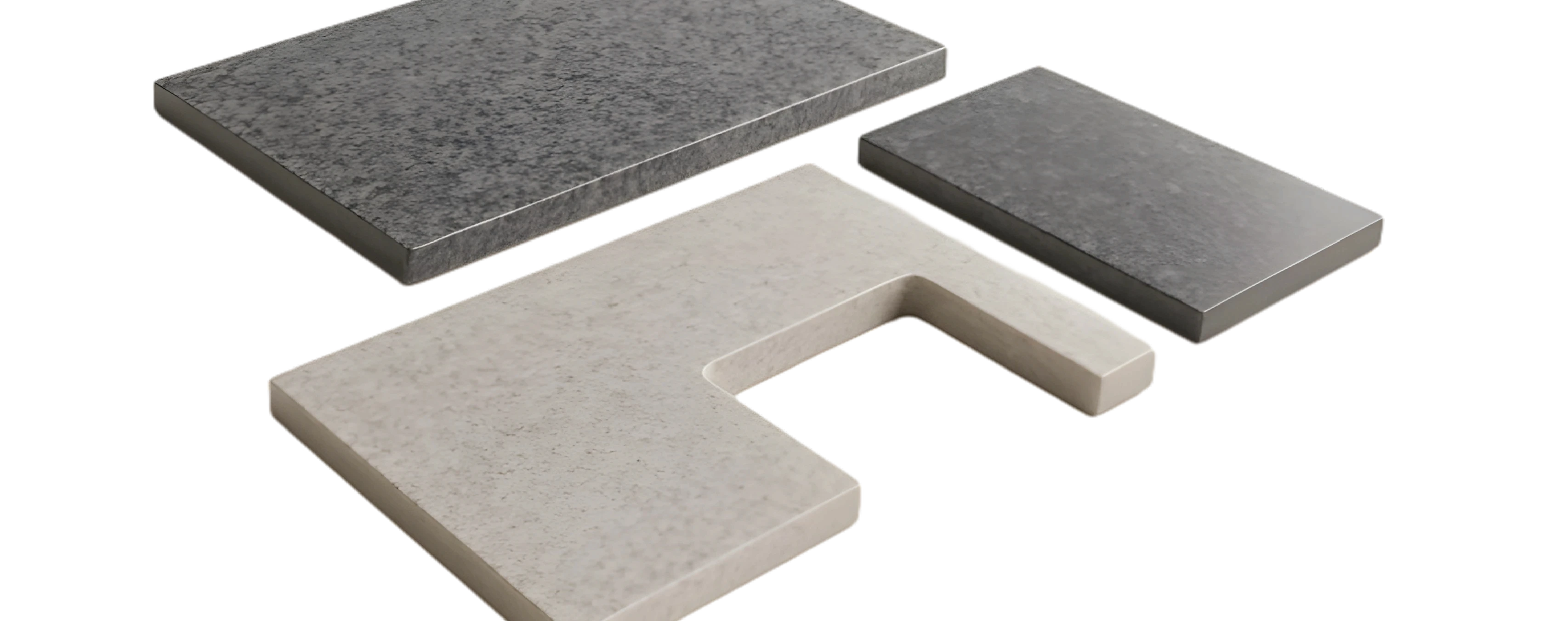

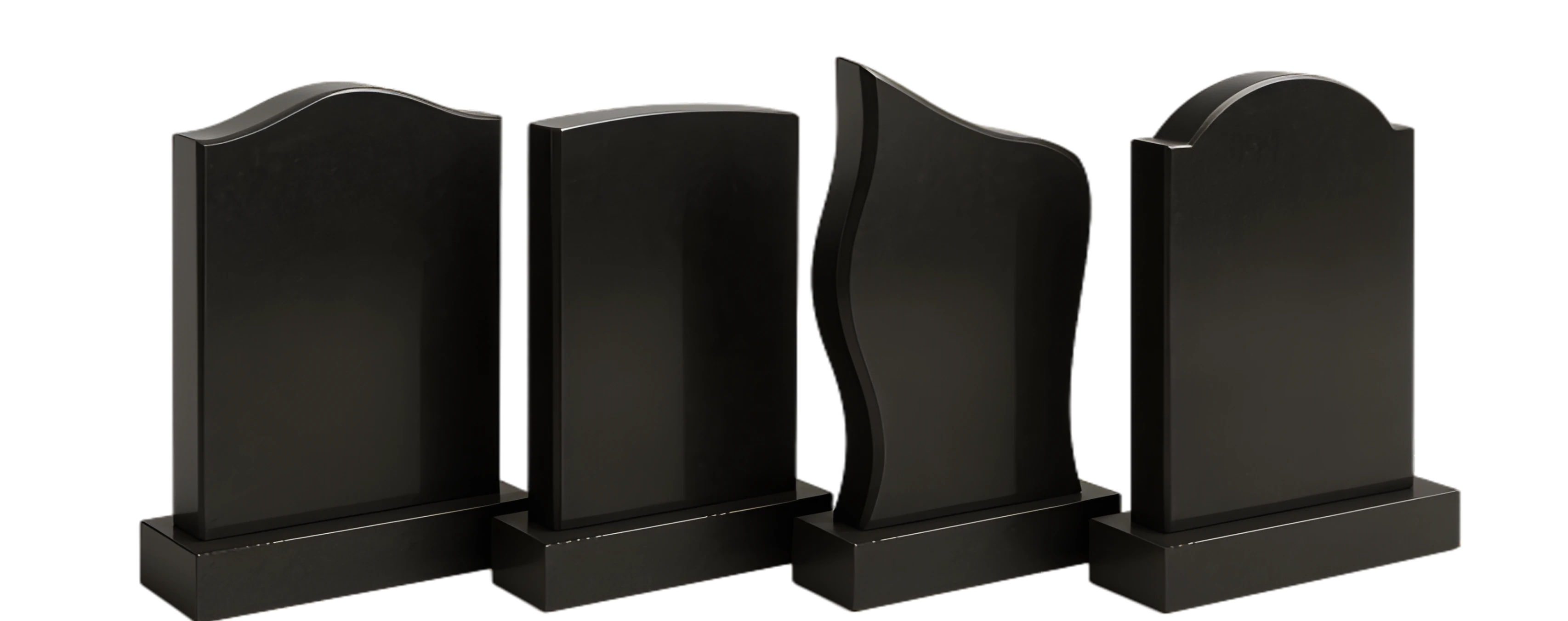

The YTQJ-600 monoblock bridge saw features advanced CNC control system and human-machine interface, combined with ultra-high precision rotary encoder positioning. This CNC-controlled stone cutting machine offers 3, 4, or 5-axis operation with optional milling tool configuration, delivering exceptional cutting efficiency and precision for demanding stone fabrication applications. Perfect for processing granite, marble, and engineered stone into kitchen countertops, bathroom vanities, monuments, and architectural elements.

Compatible Materials & Products

Precision Cutting Solutions for Natural Stone & Engineered Materials

Specs and options

Specifications customizable upon request.

Model	Unit	YTQJ - 600
Blade diameter	mm	350 - 600
Max. Working size (L×W×H)	mm	3200×2000×180
Worktable size	mm	3200×2000
Max.lifting travel	mm	230
Max. Horizontal running travel	mm	3200
Water consumption	m³/h	3
Main motor	kw	18.5
Overall dimension (L×W×H)	mm	5800×2700×2250
Weight	t	5.5
Worktable tilting degree (optional)	n°	0 - 85°
Blade rotated angle (optional)	n°	90/180/270/360°
Blade tilted angle (optional)	n°	0 - 45°

The YTQJ-600 monoblock bridge saw packs CNC cutting into a single-piece body: no foundation construction, encoder positioning at ±0.5 mm, and a choice of 3, 4 or 5-axis configurations with an optional milling tool.

Real Cutting Performance & Key Metrics

Working Size

Covers standard slab formats for countertops, vanities and monuments up to 180 mm thick.

Encoder Positioning

A servo motor system with ultra-high-precision rotary encoder positioning holds ±0.5 mm for slab cutting programs.

Configurable Motion

Three axes cover straight cutting; four adds angled and bevel work; five expands contours — configured at order time.

Monoblock Structure

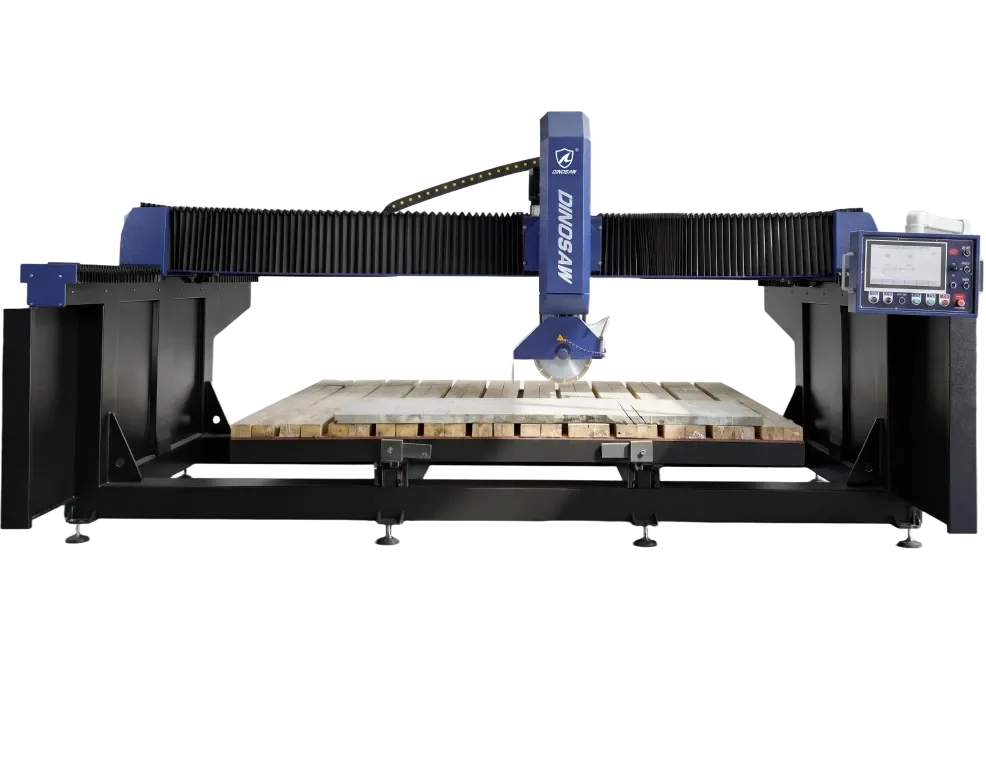

Traditional bridge machines require civil foundation work before installation. The YTQJ-600 arrives as one integrated 5.5-ton body, sets on a level floor and needs only fixing and leveling before commissioning — ideal for rented workshops, factory expansions and fast project delivery.

Encoder Positioning System

Ultra-high-precision rotary encoder positioning feeds actual position back to the CNC every cycle, holding ±0.5 mm without manual measurement.

Selectable Axis Configuration

Three axes cover straight slab cutting; four-axis configuration adds angled and bevel work; five-axis configuration expands contour capability. Choose the axis count around your actual order mix instead of paying for motion you do not use.

FAQs

Common Questions About Monoblock Bridge Saw Stone Cutting Machines

Global Leader in CNC Machinery & Diamond Tools Manufacturing

Real Cutting Performance & Key Metrics

CE Certification

100+ Tech Patents

ISO 9001:2015

DINOSAW goes beyond merely complying with international engineering standards—we actively lead their formulation. As the principal drafter of key industry benchmarks for Stone Multi-Wire Saw Machines, CNC Wire Saw Machines, and Bridge Saws, we define the rules of precision manufacturing. Backed by ISO 9001, CE certification, and 100+ technology patents, our products guarantee exceptional durability and safety in the most demanding high-load environments.

Proven Expertise & Global Applications

75+

Countries Served Worldwide

20+

Industry machinery expertise

Trusted by clients in over 75 countries, DINOSAW delivers lifecycle quality traceability and specialized technical support across 20+ machinery sectors. From traditional mining and stone processing to high-precision manufacturing (semiconductors, quartz glass) and specialized fields like nuclear decommissioning, our comprehensive solutions consistently meet the world's most rigorous operational requirements.

Complete Production Solutions & Equipments

Choose equipment combinations for your product needs to establish efficient automated production lines and maximize profitability.

Precision carving and artistic processing capabilities. Perfect for monument lettering, decorative patterns, and intricate stone artwork. Complements bridge saw operations perfectly - bridge saw cuts basic shapes, engraving machine adds fine details and artistic elements.

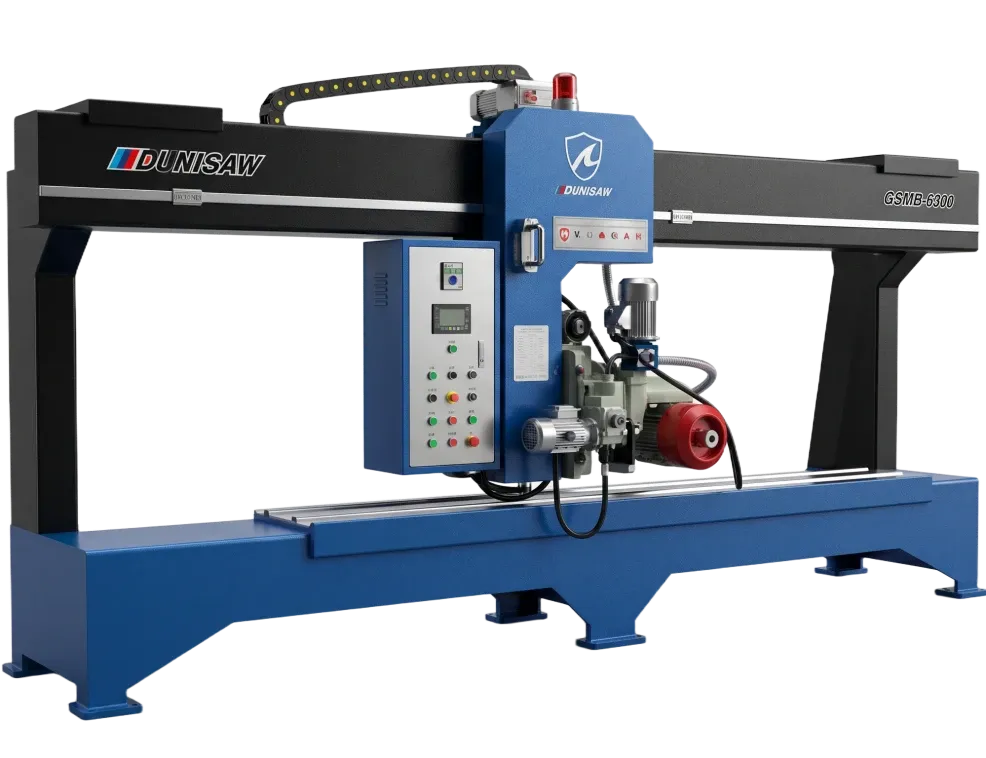

Automated edge profiling and polishing. Creates decorative edges and bevels. Complements bridge saw cutting perfectly. Enhances final product value substantially.
