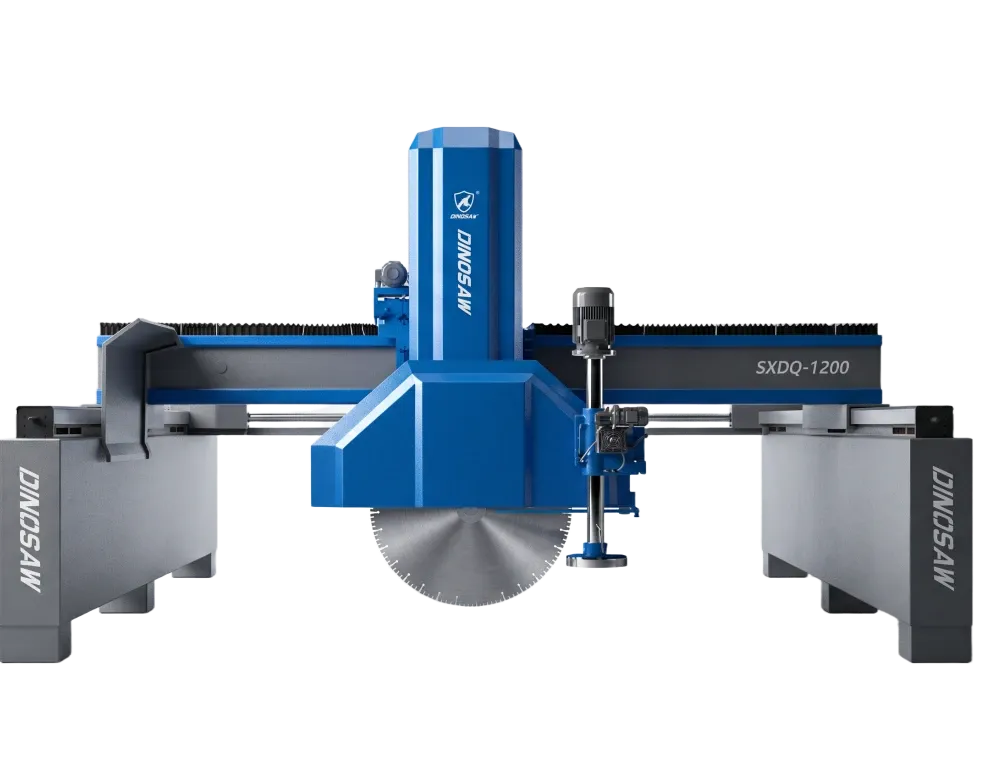

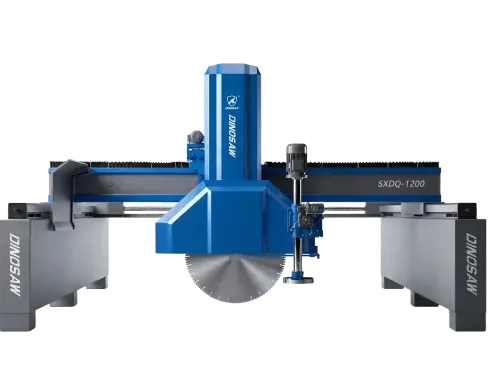

Stone Block Cutter with Horizontal Blade

Name: Stone Block Cutter with Horizontal Blade
Brand: DINOSAW
SKU: SXDQ-1200/1400/1600
Availability: InStock

SXDQ-1200/1400/1600

DINOSAW Stone Block Cutter combines vertical and horizontal cutting with PLC control and hydraulic feed. This dual-blade system cuts raw stone blocks into dimensional slabs, kerb stones, and architectural elements with high precision and efficiency. Designed for processing granite, marble, and natural stone blocks into standard products. The horizontal blade works with vertical blades to cut complete slabs while keeping clean block foundations. This eliminates manual splitting and reduces labor needs significantly.

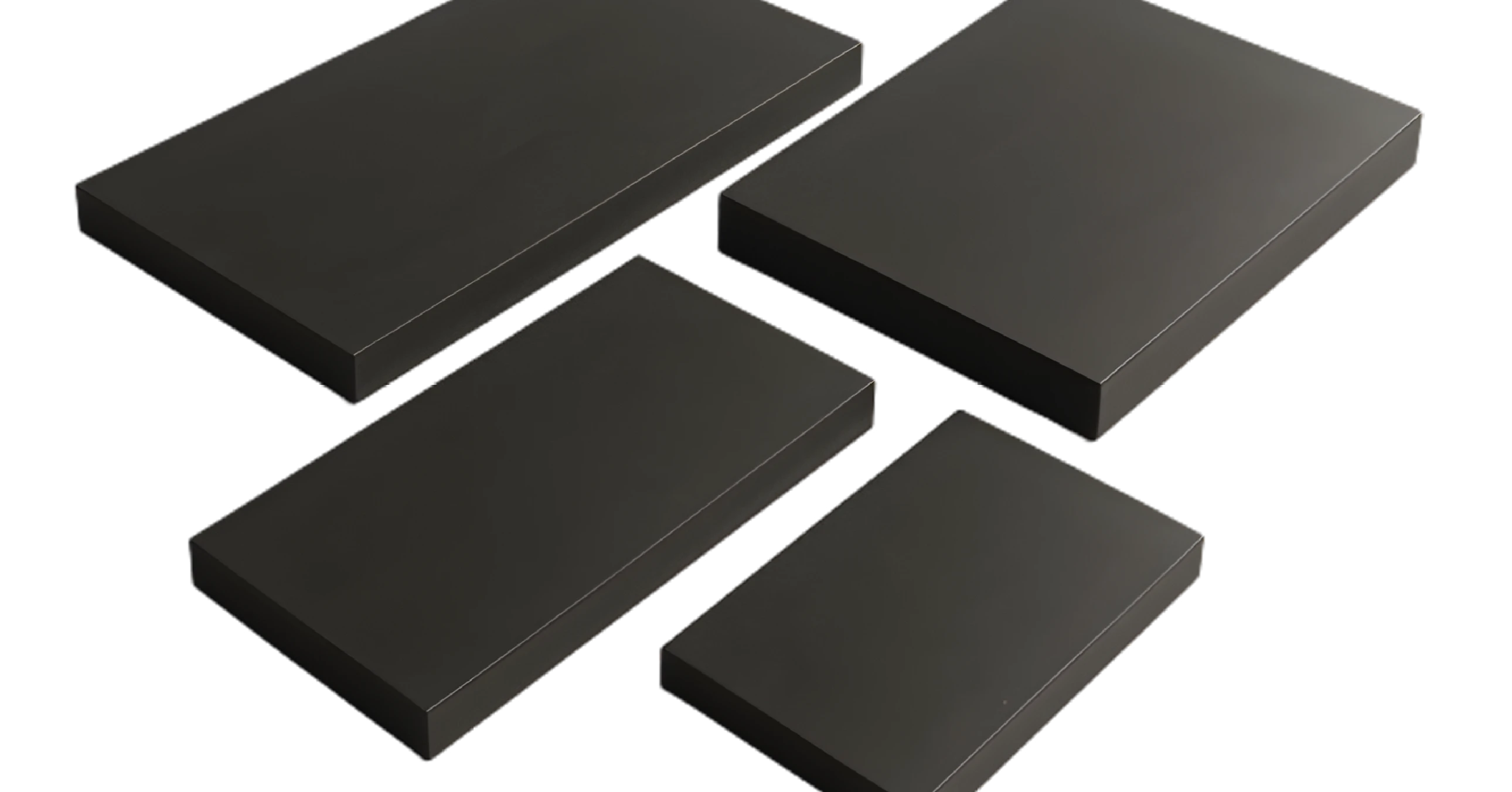

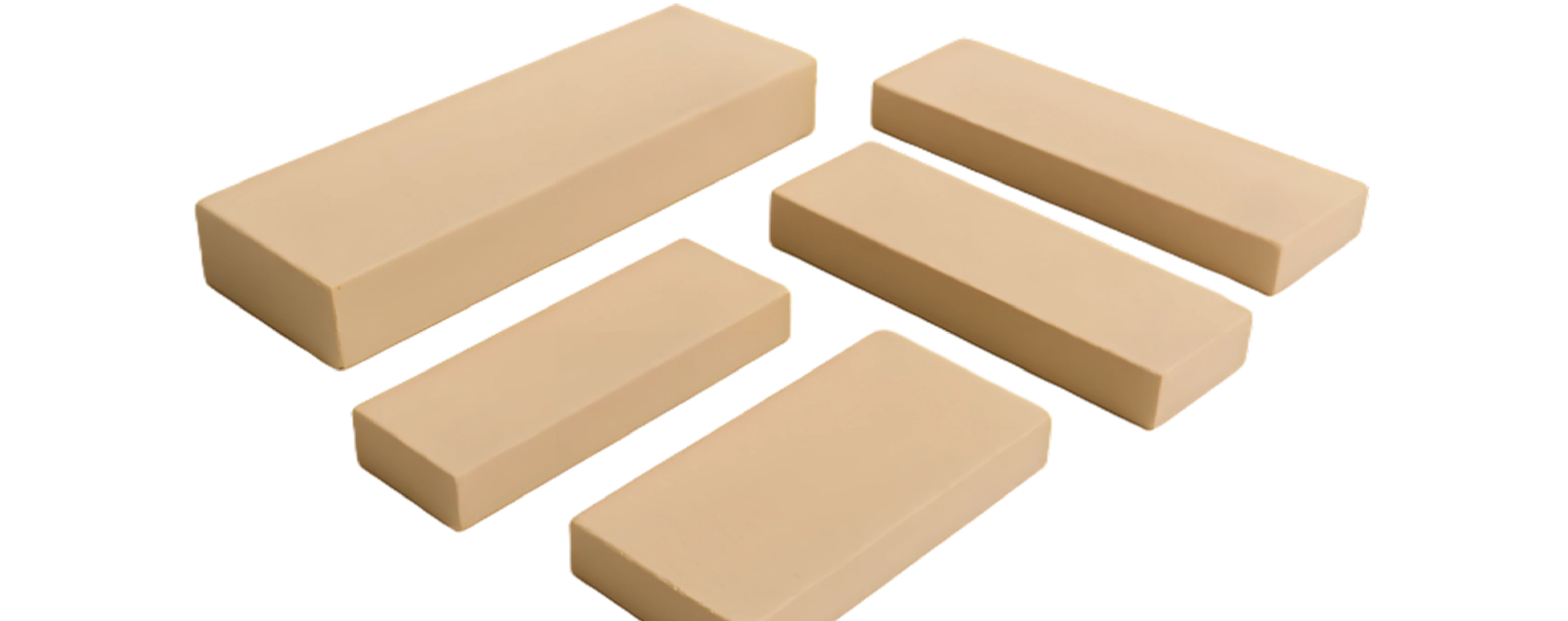

Compatible Materials & Products

Professional Stone Block Cutting and Trimming

Specs and options

Specifications customizable upon request.

Model	Unit	SXDQ - 1200	SXDQ - 1600
Crossbeam length	mm	7260	7500
Diameter of blade	mm	1200	1600
Max. cutting size (L×W)	mm	3800×2100	3400×2100
Max. vertical travel	mm	1350	1350
Main motor power	kw	55/75	55/75
Diameter of horizontal blade	mm	400 - 600	400 - 600
Vertical stroke of horizontal cutting column	mm	850	850
Main motor power for horizontal blade	kw	11	11
Overall dimensions (L×W×H)	mm	7500×4350×6500	7500×4350×6500
Water consumption	m³/h	20	20
Approximate weight	t	9	9.5

The SXDQ pairs a vertical block cutter with a horizontal blade: slabs separate from the block automatically, the block base stays flat for the next round, and the manual splitting step disappears from the workflow.

Real Cutting Performance & Key Metrics

Dual-Blade Cutting

Vertical face cutting and horizontal undercut work in one programmed cycle, separating slabs directly from the block.

Max. Block Size

Covers large block formats on the 7260–7500 mm crossbeam.

Horizontal Blade Range

The horizontal blade undercuts the block base on every slab, replacing manual splitting on every pass.

Dual-Blade Coordination

A vertical-only block cutter leaves each slab connected at the bottom. The SXDQ coordinates the vertical blade with a 400–600 mm horizontal blade, undercutting the base during the same production cycle so finished slabs separate automatically.

Clean Block Foundation

Breaking slabs away manually damages the slab back and leaves an uneven block base. Horizontal cutting leaves a flat, clean foundation for the next production round, reducing waste and eliminating foundation rework.

PLC Program Sequences

Store cutting sequences for slabs, kerb stones and monument blanks, then recall the program instead of resetting feed and cutting logic for every order.
