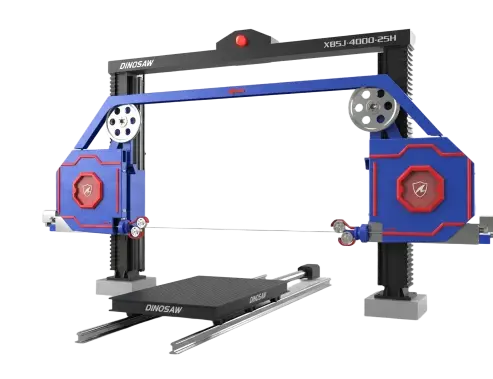

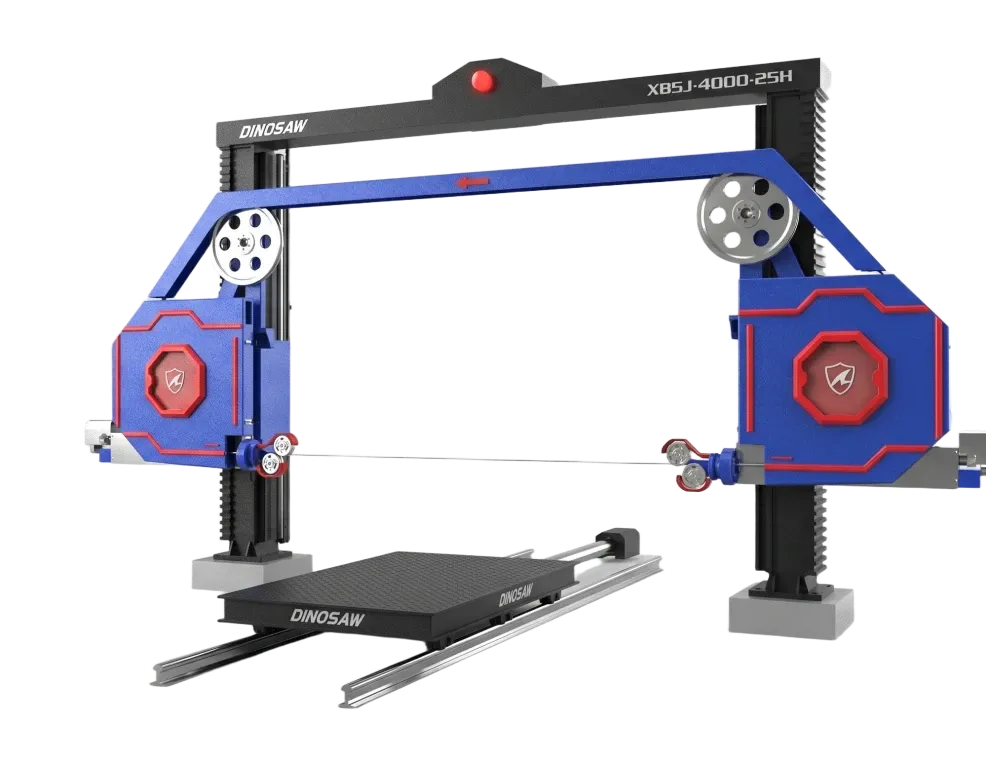

Diamond Wire Saw Machine for Stone Block Squaring

Name: Diamond Wire Saw Machine for Stone Block Squaring
Brand: DINOSAW
SKU: XBSJ-3000/3500/4000
Availability: InStock

XBSJ-3000/3500/4000

The DINOSAW Block Squaring Wire Saw Machine is a high-precision diamond wire saw for stone designed for the six-sided squaring and accurate trimming of natural stone blocks. Engineered to transform irregular quarry blocks into perfect geometric cuboids, this stone block cutting machine effectively processes granite, marble, limestone, concrete, and graphite. It serves as the most critical pre-processing equipment for thin multi-wire saw lines, achieving a peerless 1mm industrial flatness across a 4000mm stroke to ensure a perfect entry plane that safeguards sensitive diamond wires and maximizes total material yield.

Compatible Materials & Products

Cutting granite, marble & stone for slabs up to 680mm

Specs and options

Specifications customizable upon request.

Model	Unit	XBSJ-3000-25H	XBSJ-3500-25H	XBSJ-4000-25H	XBSJ-5000-25H
Max working dimensions	m	3.0x3.0x2.0	3.5x3.5x2.0	4.0x4.x2.3	5x3.3x2.3
Wire diameter	mm	7.6 - 11.5	7.6 - 11.5	7.6 - 11.5	7.6 - 11.5
Worktable size	mm	2.0x2.0	2.0x2.0	2.0x2.0	/
Table rotating degree(Option)	n°	360°	360°	360°	/
Main motor power	kw	15	15	15	15
Water consumption	m³/h	5	6	6	6
Overall dimensions	m	7.7x8.2x5.1	7.7x8.7x5.1	7.7x9.2x5.4	7.7x9.2x5.4
Approximate weight	t	10.8	11.5	12	16.5

*Can be customized as per requirement

The XBSJ family covers both ends of block preparation: heavy six-side squaring of quarry blocks up to 5.0 × 3.3 × 2.3 m at ±1 mm flatness, and the XBSJ-3000-22H lightweight edge-trimming platform at 1–2 m²/h for slab finishing.

Real Cutting Performance & Key Metrics

Flatness over 4000 mm

Servo motor with hydraulic tensioning maintains constant wire pressure, holding ±1 mm industrial flatness across the full stroke.

Marble Cutting

An industrial permanent magnet motor achieves up to 2 m²/h cutting speed on marble in the heavy-duty series.

Heavy-Duty Work Size

Four heavy models (XBSJ-3000 to XBSJ-5000) cover working dimensions from 3.0 × 3.0 × 2.0 m up to 5.0 × 3.3 × 2.3 m.

Six-Side Squaring System

Irregular quarry blocks lose yield at every downstream cut. Six-face squaring creates a geometric cuboid with flat entry surfaces before slab production begins — the quality that decides multi-wire saw yield.

Servo-Hydraulic Wire Tension

A servo motor with hydraulic tensioning holds constant wire pressure through the cut, which is what keeps the ±1 mm flatness over a 4000 mm stroke.

Permanent Magnet Drive

The 15 kW industrial permanent magnet motor sustains up to 2 m²/h on marble with lower energy draw than asynchronous drives.
