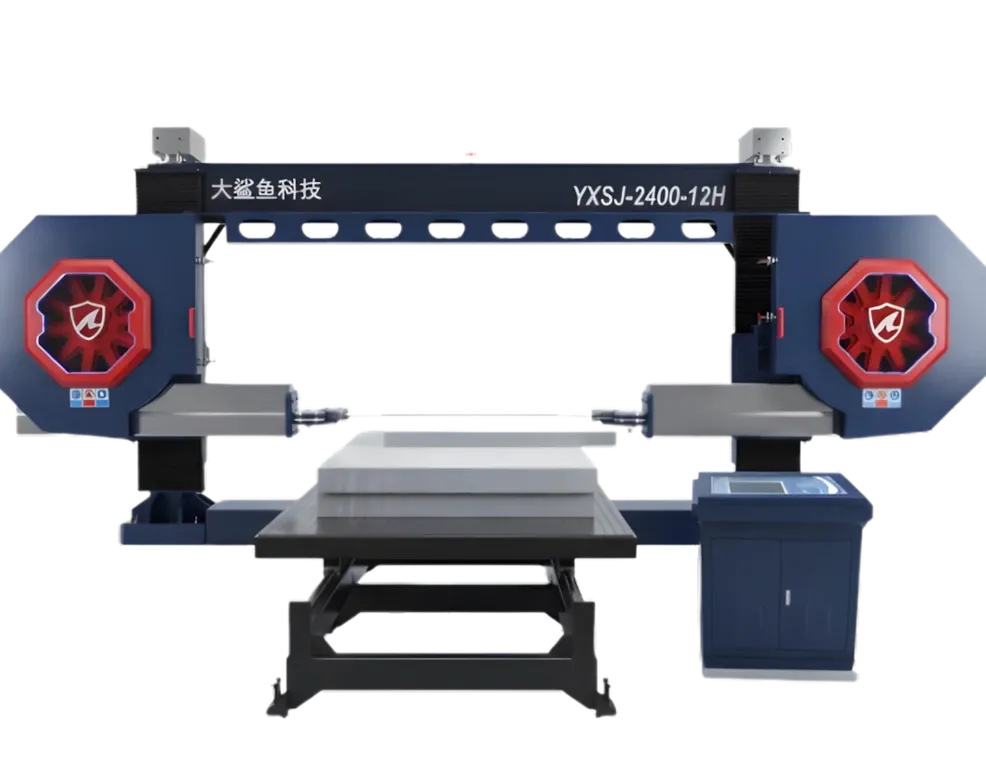

CNC Diamond Wire Saw Cutting Machine for Foamed Ceramics

This machine is used to cut lightweight building materials, including:
foamed ceramics, foam concrete, cement-based lightweight blocks, EPS, and GRC.

These materials are commonly used in:

• Architectural decoration

• Interior and exterior wall systems

• Prefabricated building components

The machine is not intended for natural stone such as granite or marble, and is specifically designed for low-density, brittle building materials that require clean cuts without edge damage.

This CNC wire saw is widely used to produce finished building components such as:

• Door frames and window trims

• Ceilings and partition boards

• Background walls and cladding panels

• Decorative architectural elements

• Insulation pipes and special-shaped lightweight components

These are products where:

• Surface quality matters

• Edge chipping must be avoided

• Secondary polishing is not desirable

In real factories, the machine is often placed directly before installation or finishing, because the cut surface is already smooth enough for use.

Yes.
This machine is designed specifically for AAC blocks, foam concrete, lightweight wall panels, and similar materials.

In these applications, traditional blade cutting often causes:

• Edge breakage

• Dust problems

• Inconsistent dimensions

With a Dinosaw CNC diamond wire saw, the wire cutting process produces:

• Smooth cutting surfaces

• Minimal material loss

• Stable dimensions across repeated cuts

This makes it suitable for both standard wall panels and customized lightweight building components.

The cutting accuracy is ±1 mm.

This level of accuracy is sufficient for:

• Prefabricated wall panels

• Door and window components

• Decorative building elements that require tight dimensional control

In practical use, ±1 mm accuracy means:

• Panels fit without excessive on-site adjustment

• Edges remain straight and clean

• Secondary grinding or polishing is usually unnecessary

This machine can cut lightweight building materials up to the following maximum sizes, depending on the selected model:

• YXSJ-1800-12H: up to 3.0 × 1.8 × 1.05 m

• YXSJ-2400-13H: up to 3.0 × 2.4 × 1.2 m

In practical terms, this means the machine can process:

• Large AAC blocks and foam concrete blocks

• Full-size lightweight wall panels

• Thick prefabricated building components that are difficult to cut with blade saws

The cutting thickness is defined by the maximum material height:

• 1.05 m for YXSJ-1800-12H

• 1.2 m for YXSJ-2400-13H

Customers typically choose:

• 1800-12H for standard panel and block sizes

• 2400-13H when wider or thicker components are required

If your material dimensions exceed these limits, the correct approach is to select a larger model or request a customized configuration based on your actual block or panel size.

Yes.
This machine supports batch cutting by placing multiple lightweight blocks or panels side by side within the maximum working dimensions of the selected model.

In real production, factories commonly:

• Stack AAC blocks or foam concrete blocks in parallel

• Cut multiple wall panels in one run

• Keep dimensions consistent across batches

Batch cutting is one of the main advantages of wire cutting for lightweight materials, especially compared with single-blade saws.

The main difference is what the machines are capable of doing, not just cut quality.

Blade saws are mainly designed for straight cuts.
They work well for cutting blocks or panels into simple rectangular shapes, but they struggle when the product requires:

• Curves

• Decorative profiles

• Architectural lines or shaped components

In real factories, complex lightweight products are traditionally made by:

• Cutting roughly with a bridge saw

• Then shaping with diamond grinding wheels

This process has clear limitations:

• Grinding wheels remove material instead of cutting it

• A large amount of material is lost as dust

• The final shape depends heavily on operator skill

• Efficiency is low for repeated or complex designs

A CNC diamond wire saw works differently.

Because the wire cuts along a controlled path, it can:

• Cut curved and complex shapes directly

• Produce decorative lines and architectural components in one process

• Keep the remaining material intact and reusable

Compared with blade + grinding methods, wire cutting offers:

• Higher efficiency for complex shapes

• Better surface quality with less secondary work

• Much lower material waste, since the material is cut instead of ground away

For lightweight decorative components and shaped building materials, this functional difference is the main reason factories switch to wire saws.

Yes.
This machine is widely used by small and medium-sized factories producing lightweight building components.

It is suitable when:

• Production focuses on wall panels, blocks, or decorative elements

• Flexibility and cut quality matter more than extreme output volume

• Space and power conditions do not allow very large cutting lines

For these factories, a CNC wire saw offers a balanced solution between capacity, precision, and investment cost.

The machine can cut custom shapes and profiles, not just straight blocks.

Typical shapes include:

• Grooves and recesses

• Curved or chamfered edges

• Irregular decorative profiles

With CNC control, cutting paths can be adjusted to match architectural and design requirements, making it suitable for both structural and decorative lightweight components.

This machine solves several common problems in lightweight building material production:

• Edge breakage caused by blade cutting

• Inconsistent dimensions across batches

• High material waste and rework

• Dust and vibration affecting workshop conditions

By using diamond wire cutting, factories achieve cleaner cuts, higher yield, and more stable production quality, especially for AAC, foam concrete, and foamed ceramic products.
