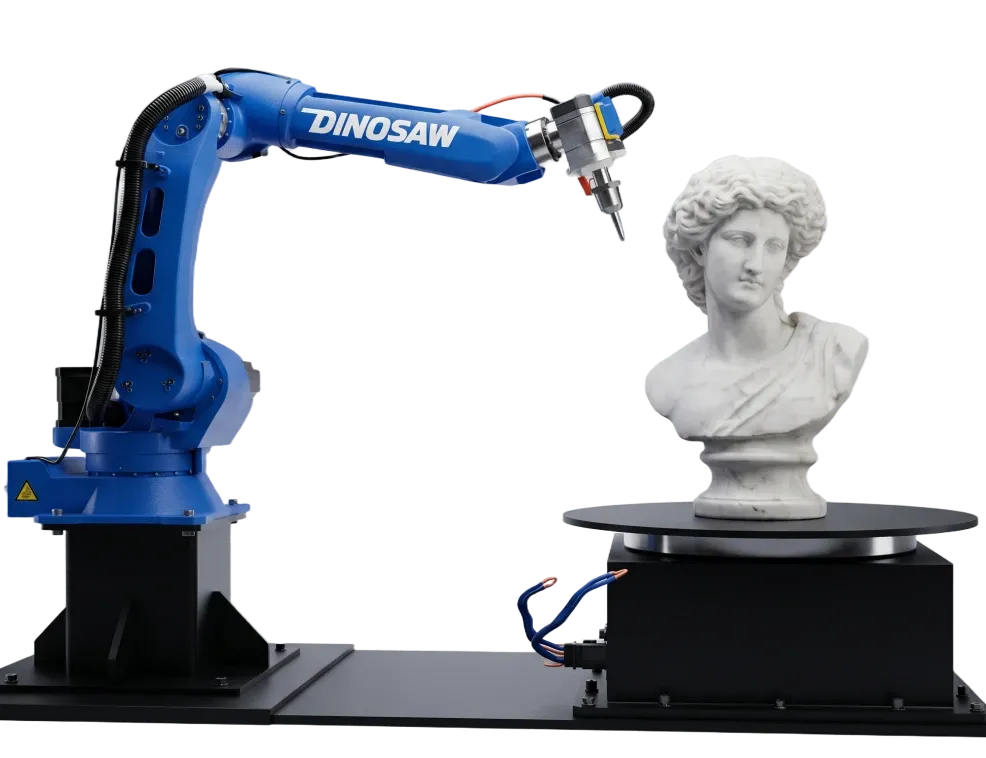

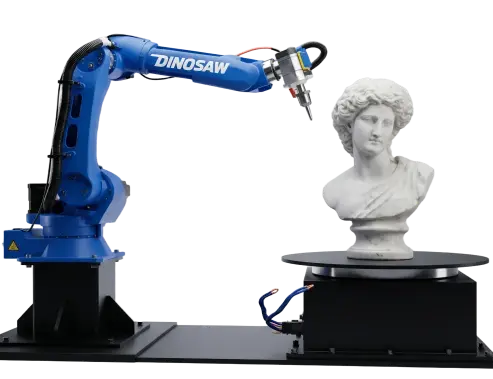

7-Axis CNC Stone Carving Robotic Arm Machine

This 7-axis robotic arm is used for 3D stone carving, free-form cutting, and complex shape processing that cannot be handled efficiently by traditional CNC machines.

In real stone workshops, it is mainly applied to jobs where:

• The shape is curved, sculpted, or fully three-dimensional

• The tool needs to approach the stone from many different angles

• Manual carving would be slow, inconsistent, or very labor-intensive

Typical uses include sculpture carving, artistic reliefs, curved architectural elements, and custom stone artworks.

This robotic arm is typically used for non-standard, high-complexity stone products, rather than flat or repetitive items.

Common products include:

• Stone sculptures and statues

• Artistic relief panels

• Curved columns and decorative elements

• Custom architectural stone features

These products usually have complex surfaces and changing tool angles, which are difficult or impossible to machine on standard 3-axis or 5-axis CNC stone machines.

The robotic arm can work with a wide range of stone materials, including:

Marble、Limestone、Sandstone、Travertine、Granite、Engineered stone and more.

In practice:

• Softer stones allow faster carving and finer details

• Harder stones like granite are commonly used for shaping, carving, and surface modeling rather than deep bulk cutting

Tool selection and cutting strategy are adjusted based on the material.

The main reason is freedom of movement.

Traditional CNC machines are limited by fixed axes and tool directions. A 7-axis robot can:

• Change tool orientation continuously

• Reach undercuts and deep curves

• Machine complex surfaces in one setup

This reduces manual finishing and allows designs that are extremely difficult or impractical on conventional CNC systems.

It can be used for both custom projects and production work, but the way it is used is very different.

For custom or small-batch projects, the key factor is programming.
Each new product or design requires a new program to match the geometry, tool path, and cutting strategy. This means there is:

• A learning curve

• Setup and programming time for each new job

For workshops with engineers or operators who already have robot programming experience, this is not a problem. For others, it represents a real operational cost that needs to be considered.

For batch or production work, the robotic arm shows a different advantage.
Once the program is finalized, the same tool path can be reused to:

• Produce large quantities of identical stone products

• Maintain consistent shape and quality

• Run continuously with high repeatability

In production scenarios, one-time programming enables fast, stable mass output, making the robotic arm highly suitable for automated carving and cutting lines.

In short, this machine works for both custom and production use, but it delivers the highest efficiency and value when the programming effort can be reused across multiple parts.

Once the program is finalized, this robotic arm delivers highly stable and repeatable results.

The robot offers a position repeat accuracy of ±0.05°, which is critical for:

• Repeating the same sculpture or carving design

• Maintaining consistent contours across multiple pieces

• Reducing manual correction after machining

In production, this level of repeatability ensures that once the first piece is approved, the following pieces will match it closely in shape and detail.

The robotic arm has a maximum working radius of 1721 mm, which defines the effective machining envelope.

This means it can comfortably handle:

• Medium to large stone blocks for sculpture and carving

• Large decorative elements and architectural components

• Complex 3D forms that require wide tool reach and flexible angles

The wide working radius allows the robot to approach the stone from multiple directions without repositioning the workpiece frequently.

The robot’s six rotating axes, each with a wide motion range, allow the tool to reach almost any angle around the stone.

For example:

• Axis rotation ranges up to ±300° on Axis 6

• Multiple axes operate at high rotational speeds

In real carving work, this allows:

• Undercuts and deep curved surfaces

• Smooth transitions between complex contours

• Continuous machining without stopping to reset the stone

This flexibility is what makes a 7-axis robot suitable for true 3D stone carving, not just surface machining.

Yes.
The robotic arm is designed for continuous industrial operation.

Key parameters that support this include:

• IP54 protection, suitable for dusty stone workshop environments

• A working temperature range of 0–45°C, covering normal factory conditions

• High axis speeds that support efficient motion without sacrificing control

These features allow the robot to run reliably in real stone processing workshops, not just controlled lab conditions.

While the robotic arm offers excellent flexibility, there are practical limits to consider:

• Each new design requires programming and simulation time

• Very simple, flat, or repetitive cutting tasks may be faster on traditional CNC machines

• The effective working area is defined by the 1721 mm radius, so very large single blocks may require repositioning

Understanding these limits helps ensure the robotic arm is used where it delivers the most value: complex 3D shapes, repeatable designs, and high-value stone products.
