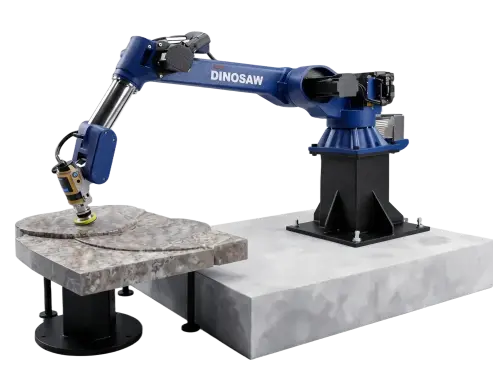

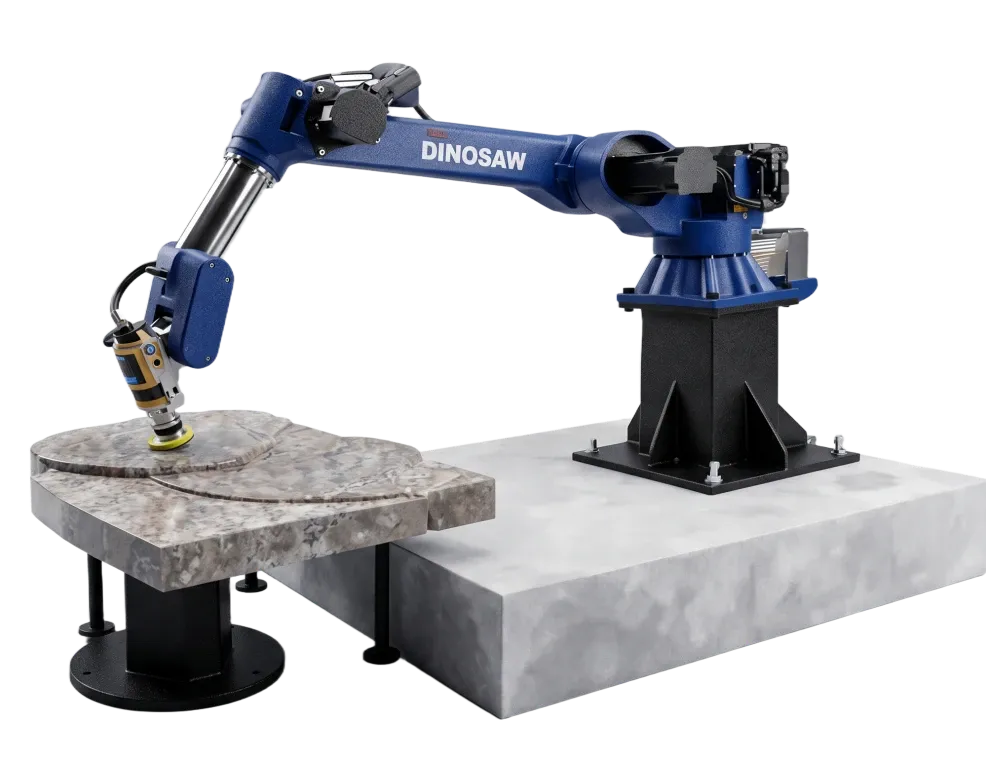

6 Axis Robot Arm for Stone Polishing & Grinding

Name: 6 Axis Robot Arm for Stone Polishing & Grinding
Brand: DINOSAW
SKU: JXS3670
Availability: InStock

JXS3670

DINOSAW 6 axis robot arm delivers precise stone polishing and grinding with. Features 6-axis complete mobility for complex surface finishing, edge polishing, and sculptural detailing.This automated stone polishing robot processes diverse materials including granite, marble, limestone, sandstone, quartz, slate, travertine, and engineered stone. Applications span tombstones, kitchen countertops, bathroom vanities, sculptures, and decorative elements across all stone fabrication projects.

Compatible Materials & Products

Robotic polishing of shaped stone: tombstones, sinks, countertops and sculptural surfaces with constant contact pressure.

Specs and options

Specifications customizable upon request.

Equipment model	JXS3670
Max working radius	1721MM
axis 1 speed	187°/s
Axis 2 speed	148°/s
axis 3 speed	169°/s
axis 4 speed	234°/s
axis 5 speed	225°/s
axis 6 speed	225°/s
max operation area axis 1	±160°
max operation area axis 2	150° ~ -90°
max operation area axis 3	80° ~ -100°
max operation area axis 4	±150°
max operation area axis 5	±110°
max operation area axis 6	±300°
protective specification	IP54
position repeat accuracy	±0.05°
working temperature	0~45°C

The JXS3670 six-axis robotic polishing cell replaces manual grinding and polishing on shaped stone — curved tombstone tops, sink bowls and sculptural surfaces finish with controlled contact pressure and stored toolpaths, freeing skilled polishers from repetitive hand work.

Real Polishing Performance & Key Metrics

Shaped Surface Access

Six axes orient the polishing head to curved, beveled and irregular surfaces that flat-bed polishers cannot follow directly — the arm works the surface, not just the plane.

Controlled Contact

Polishing force is controlled through the programmed path: the finish does not depend on how hard an operator presses at different times of the shift.

Working Radius

A 1721 mm maximum working radius covers tombstones, vanity tops and mid-size sculptures within one arm envelope.

6-Axis Surface Following

The arm continuously changes tool orientation to stay aligned with curved, beveled and irregular surfaces: sink bowls, shaped monument tops and sculptural contours are polished along the surface geometry instead of approximated by a flat head.

Constant Contact Pressure

Contact pressure is controlled through the programmed path: every piece in the batch sees the same force at the same surface points, so finish variation from operator fatigue leaves the process — the human factor moves to setup and inspection.

Stored Surface Programs

Each product's surface path is a stored program: batch production recalls the exact path, pressure and sequence per piece, and repeat orders months later reproduce the original finish without re-teaching the geometry.

FAQs

Common Questions About 6 Axis Robot Arm for Stone Polishing

Global Leader in CNC Machinery & Diamond Tools Manufacturing

Real Polishing Performance & Key Metrics

CE Certification

100+ Tech Patents

ISO 9001:2015

DINOSAW goes beyond merely complying with international engineering standards—we actively lead their formulation. As the principal drafter of key industry benchmarks for Stone Multi-Wire Saw Machines, CNC Wire Saw Machines, and Bridge Saws, we define the rules of precision manufacturing. Backed by ISO 9001, CE certification, and 100+ technology patents, our products guarantee exceptional durability and safety in the most demanding high-load environments.

Proven Expertise & Global Applications

75+

Countries Served Worldwide

20+

Industry machinery expertise

Trusted by clients in over 75 countries, DINOSAW delivers lifecycle quality traceability and specialized technical support across 20+ machinery sectors. From traditional mining and stone processing to high-precision manufacturing (semiconductors, quartz glass) and specialized fields like nuclear decommissioning, our comprehensive solutions consistently meet the world's most rigorous operational requirements.

Complete Production Solutions & Equipments

Choose equipment combinations for your product needs to establish efficient automated production lines and maximize profitability.

Wire saw cuts precise sculpture shapes, then 6 axis robot arm provides final polishing. Ideal workflow for artistic stone production requiring geometric accuracy and smooth surfaces.

6 axis robot arm polishes surfaces first, then 7-axis engraving robot adds detailed carving. Complete workflow for sculptures, monuments, and tombstones.

Bridge saw cuts countertops and sink openings to finished dimensions, then 6 axis robot arm provides final polishing. One-stop solution for kitchen and bathroom fabrication.
