Single Column Compact Stone Block Cutter

Name: Single Column Compact Stone Block Cutter
Brand: DINOSAW
SKU: DBZQ-1600/1800
Availability: InStock

DBZQ-1600/1800

The Stone Block Cutter uses diamond blades on a single column design. Stone moves on a trolley without foundations or edge beams, saving space and costs. PLC system enables automatic cutting with preset depths, offering simple operation and smooth results. Cuts granite, marble, travertine, limestone and other natural stones. Ideal for block cutting and slab production in factories of any size.

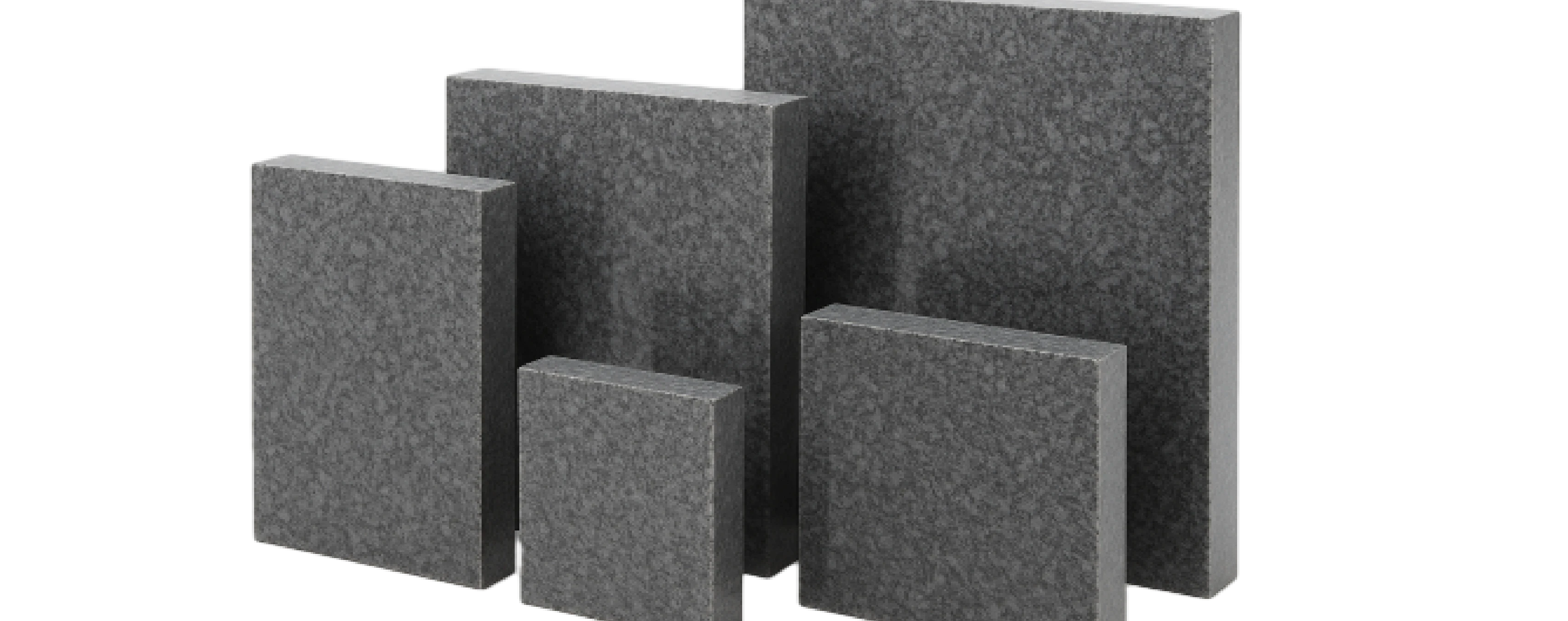

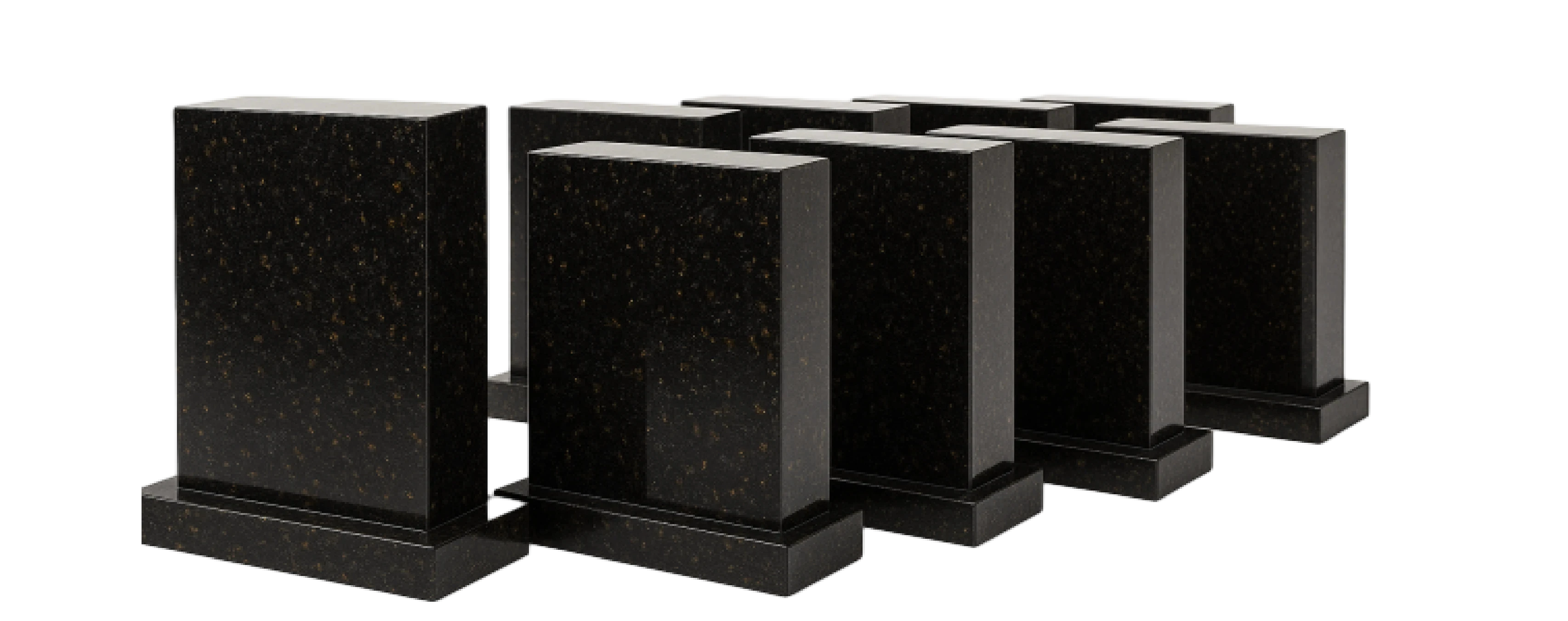

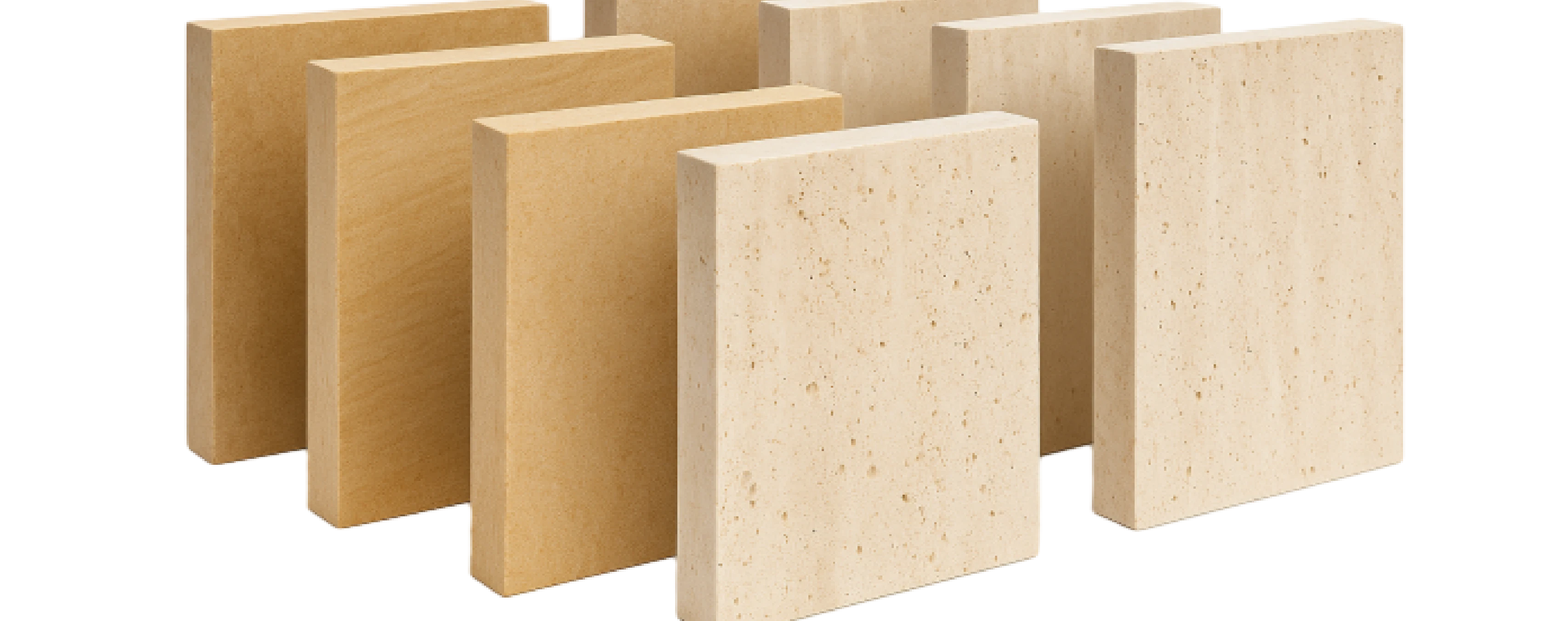

Compatible Materials & Products

Versatile Stone Block Cutting for Industrial Applications

Specs and options

Specifications customizable upon request.

Model	Unit	DBZQ - 1600	DBZQ - 1800
Max.diameter of blade	mm	Φ1600	Φ1800
Max.No.of blades	pcs	2	1
Recommended blade combination	mm	Φ1600 + Φ940	Φ1800
Main motor power	kw	22	22
General power	kw	25.15	25.15
Max processing sizes	mm	3000x1200x650	3000x1200x750
Max lifting stroke	mm	900	900
Overall dimensions (LxWxH)	mm	6000x2900x3300	6000x2900x3300
Water consumption	m³/h	6	6
Total weight	t	3	3

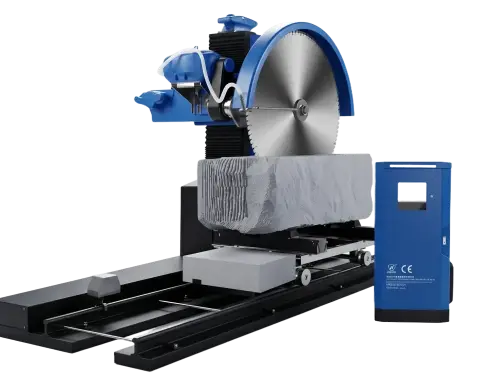

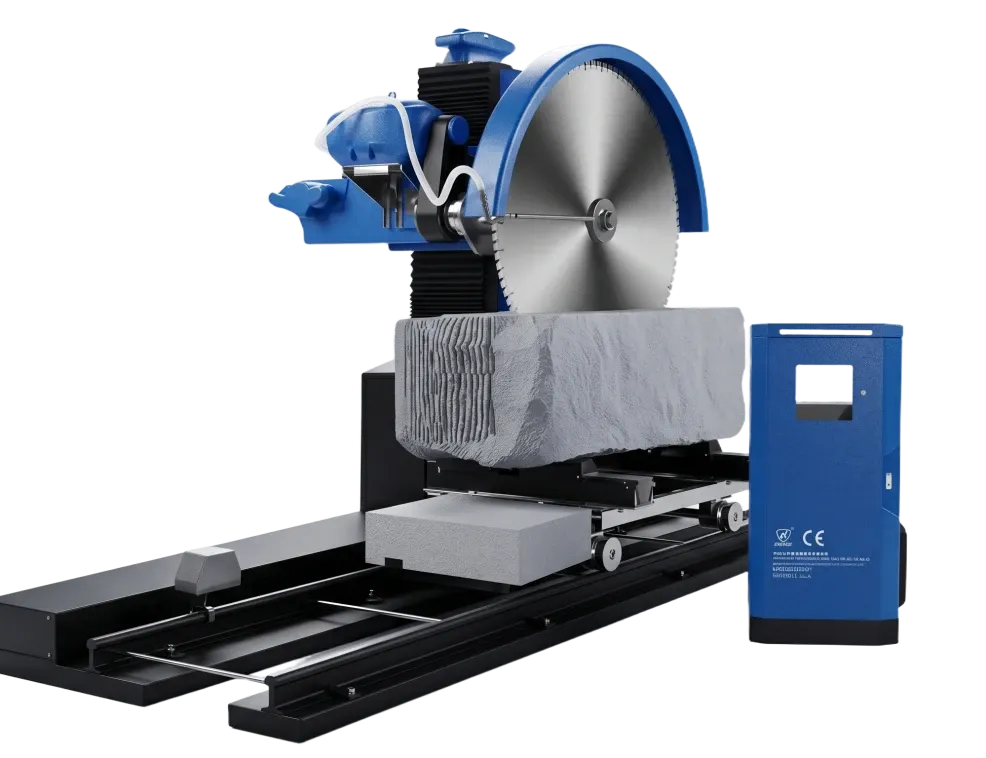

The DBZQ single-column block cutter runs a diamond blade on one column with the stone moving on a trolley — no foundation construction, PLC-preset cutting depths, and a two-stage variable-speed headstock that keeps blade action even through the cut.

Real Cutting Performance & Key Metrics

Level-Floor Installation

The trolley table moves stone without foundation beams or civil works — installation on a level workshop floor, saving construction cost and time.

Blades in One Setup

The DBZQ-1600 runs a twin-blade Φ1600 + Φ940 combination for doubled output; the DBZQ-1800 runs a single Φ1800 blade for larger sections.

Lifting Stroke

A 900 mm lifting stroke covers processing heights up to 650 mm (DBZQ-1600) or 750 mm (DBZQ-1800) within the 3000 × 1200 mm envelope.

Twin-Blade Option

The DBZQ-1600 carries Φ1600 + Φ940 blades in one setup, creating two cutting planes per pass for standardized blocks and panels — roughly doubling output per block against single-blade cycles.

Two-Stage Variable-Speed Headstock

Two gear ranges match blade speed to stone hardness, keeping cutting stable on hard granite while maintaining efficient speed on marble and limestone — and the even cutting action extends blade life.

Trolley Block Movement

The stone moves through the cutting zone on a trolley instead of sitting on a foundation-mounted bed, eliminating edge beams and reducing installation complexity.
