Hydraulic Stone Cropper for Marble, Granite & Concrete

Name: Hydraulic Stone Cropper for Marble, Granite & Concrete
Brand: DINOSAW
SKU: PSJ-20/320T
Availability: InStock

PSJ-20/320T

DINOSAW stone cropper combines hydraulic precision with industrial durability for efficient stone splitting. Hightonnage splitting force (20-350 tons) ensures clean breaks across granite, marble, and concrete with customizable blade systems and automated conveyor integration. Perfect for producing curb stones, wall claddings, paving slabs, and architectural elements. Our machines boost production efficiency 3X faster than traditional methods while maintaining natural textures.

Hydraulic Stone Splitting Applications

Hydraulic splitting of natural split-face products: veneer, wall stone, pavers, curbstones and retaining wall blocks.

Specs and options

Specifications customizable upon request.

Model no.	PSJ - 20T	PSJ - 40T	PSJ - 70T	PSJ - 160T	PSJ - 320T
Splitting Pressure	20T	40T	70T	160T	320t
Max Splitting Width	160mm	240mm	400mm	500mm	1200mm
Max Splitting Height	180mm	320mm	350mm	550mm	800mm
Blade Adaptation	10*7mm	15*10mm	20*10mm	30*15mm	36*20mm
Rated Power	7.5KW	11KW	11KW	15KW	22KW
Rated Voltage	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Electric Current	15A	22.6A	22.6A	30A	42.5A
Main Cylinder Data	Φ110/Φ80 - 200	Φ160/Φ110 - 340	Φ200/Φ140 - 360	Φ280/Φ200 - 600	Φ400/Φ280 - 850
Oil Advance Speed	96mm/s	167mm/s	108mm/s	76.6mm/s	40mm/s
Overall Size (L×W×H/mm)	1145×1000×2030	1260×1000×2300	1500×1200×2520	1970×1200×3300	2370×1500×3840
Weight	2300KG	2900KG	3200KG	5300KG	8000KG

The PSJ hydraulic stone cropper converts stone blocks and slabs into natural split-face products with five force classes from 20 to 320 tons — clean fractures, no saw kerf, and a quick-change blade system that returns to production in minutes.

Real Splitting Performance & Key Metrics

Five Force Classes

PSJ-20T to PSJ-320T covers splitting widths from 160 mm to 1200 mm and heights from 180 mm to 800 mm — one platform, five production scales.

Kerf-Free Splitting

Stone fractures along its grain instead of being sawn, so material is not lost as blade kerf.

Energy-Efficient Hydraulics

Variable-speed pumps and pressure optimization cut power consumption by about 25% against constant-pressure hydraulic designs.

Natural Fracture Mechanism

A hardened splitting blade concentrates hydraulic force into the stone until it separates along its natural grain — the result is a genuine split-face texture with no saw kerf and no need to artificially texture a sawn surface afterward.

Five Force Classes

The 20, 40, 70, 160 and 320-ton classes match product cross-section and stone hardness instead of oversizing the hydraulic system for every job — thin veneer runs on the PSJ-20T, full-size blocks on the PSJ-320T.

Quick-Change Blade System

The quick-change system replaces splitting blades tool-free in about five minutes, minimizing downtime between product sizes — no wrenches or fixtures required.

FAQs

Common Questions About DINOSAW Stone Cropper

Global Leader in CNC Machinery & Diamond Tools Manufacturing

Real Splitting Performance & Key Metrics

CE Certification

100+ Tech Patents

ISO 9001:2015

DINOSAW goes beyond merely complying with international engineering standards—we actively lead their formulation. As the principal drafter of key industry benchmarks for Stone Multi-Wire Saw Machines, CNC Wire Saw Machines, and Bridge Saws, we define the rules of precision manufacturing. Backed by ISO 9001, CE certification, and 100+ technology patents, our products guarantee exceptional durability and safety in the most demanding high-load environments.

Proven Expertise & Global Applications

75+

Countries Served Worldwide

20+

Industry machinery expertise

Trusted by clients in over 75 countries, DINOSAW delivers lifecycle quality traceability and specialized technical support across 20+ machinery sectors. From traditional mining and stone processing to high-precision manufacturing (semiconductors, quartz glass) and specialized fields like nuclear decommissioning, our comprehensive solutions consistently meet the world's most rigorous operational requirements.

Complete Production Solutions & Equipments

Choose equipment combinations for your product needs to establish efficient automated production lines and maximize profitability.

Belt-driven dual blade system extracts precise stone blocks from quarries with minimal waste. Four enclosed guide pillars ensure stability for heavy-duty cutting. Chrome-plated components withstand harsh quarry environments perfectly.

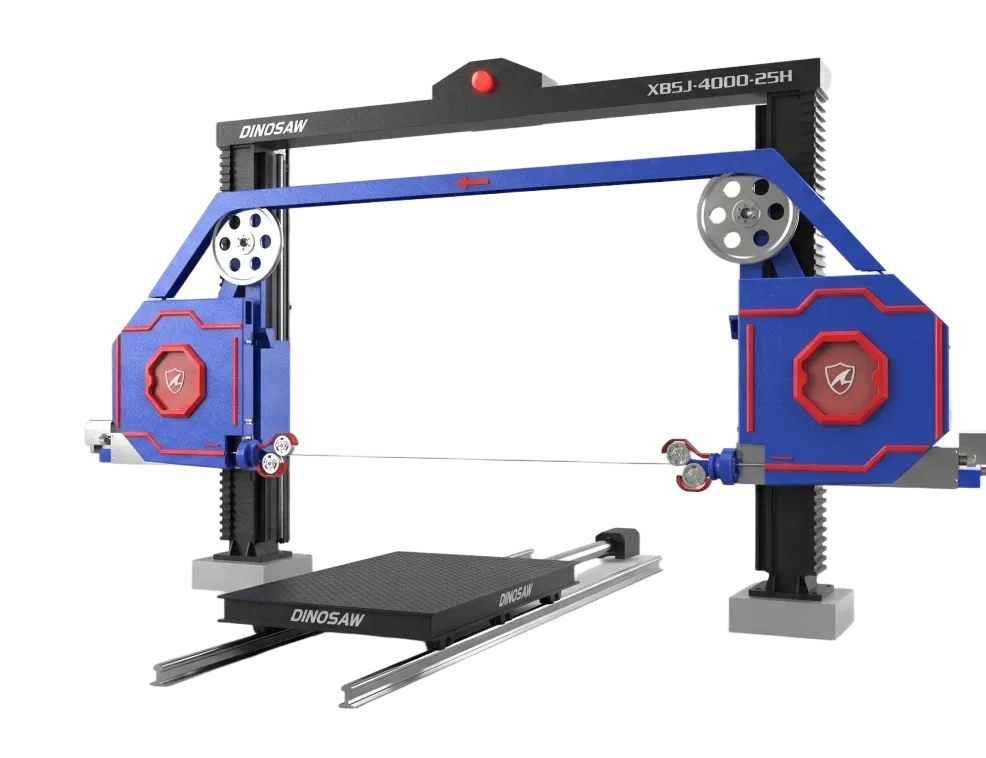

Diamond wire technology precisely cuts quarried blocks to optimal sizes for stone cropper feeding. Edge trimming and dimensional adjustment prepare materials perfectly for efficient splitting operations with minimal waste generation.

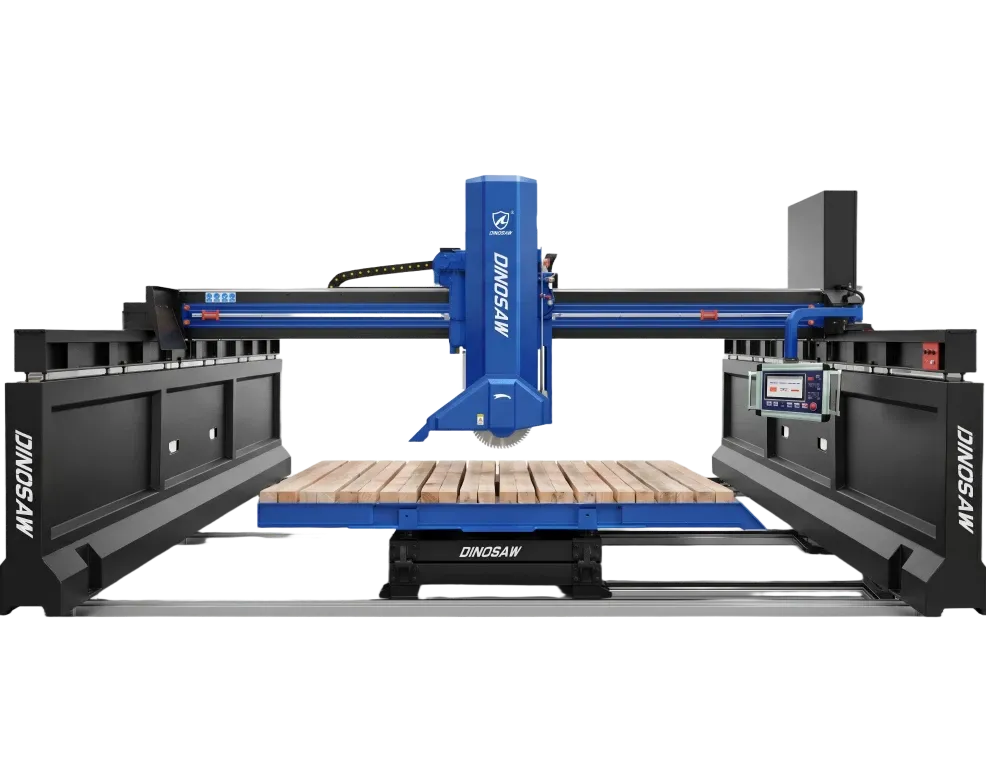

High-speed bridge cutting prepares small wall cladding stones. Compact design handles limited-size materials efficiently before stone cropper splitting. Ideal for rapid processing of exterior stone veneer projects.

Factory Direct Sales & Competitive Pricing

Buy directly from our factory to eliminate middleman markups. We provide processing plants with heavy-duty machines at factory-direct prices, helping you lower equipment costs and shorten your payback period.

We offer profitable wholesale programs for global distributors. For specialized applications, our engineering team provides OEM/ODM customization—adjusting machine dimensions, motor power, and CNC parameters to fit your exact material workflow.
