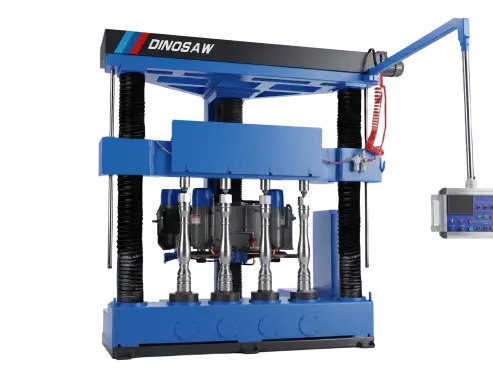

Vertical 4-Workpiece Baluster Profiling Machine

Name: Vertical 4-Workpiece Baluster Profiling Machine
Brand: DINOSAW
SKU: LGFX-LS4
Availability: InStock

LGFX-LS4

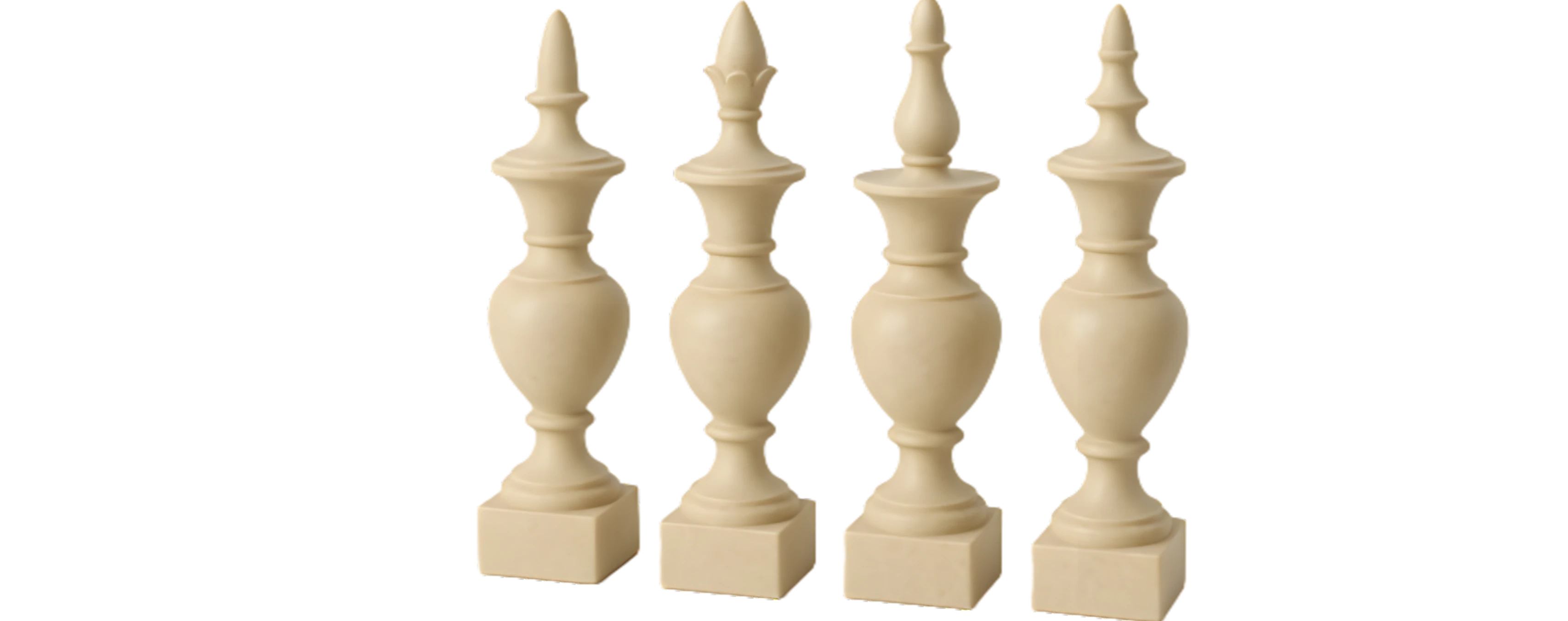

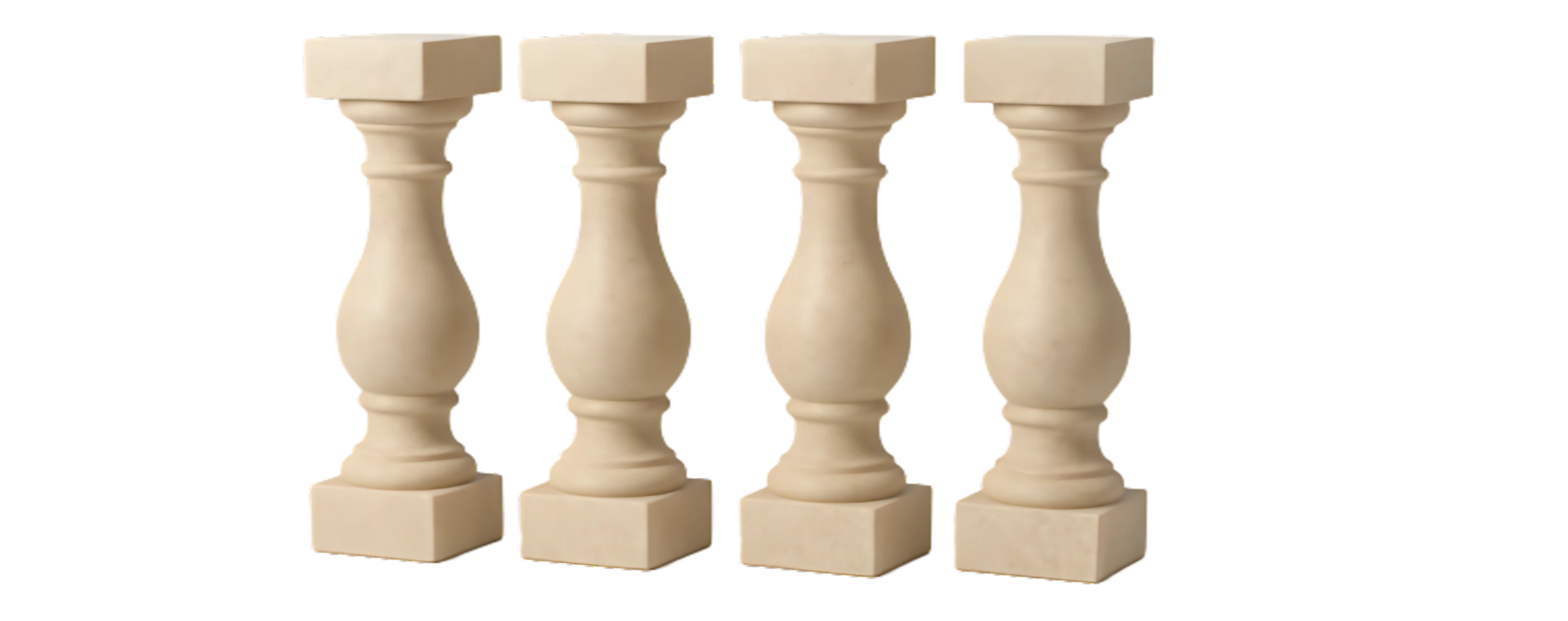

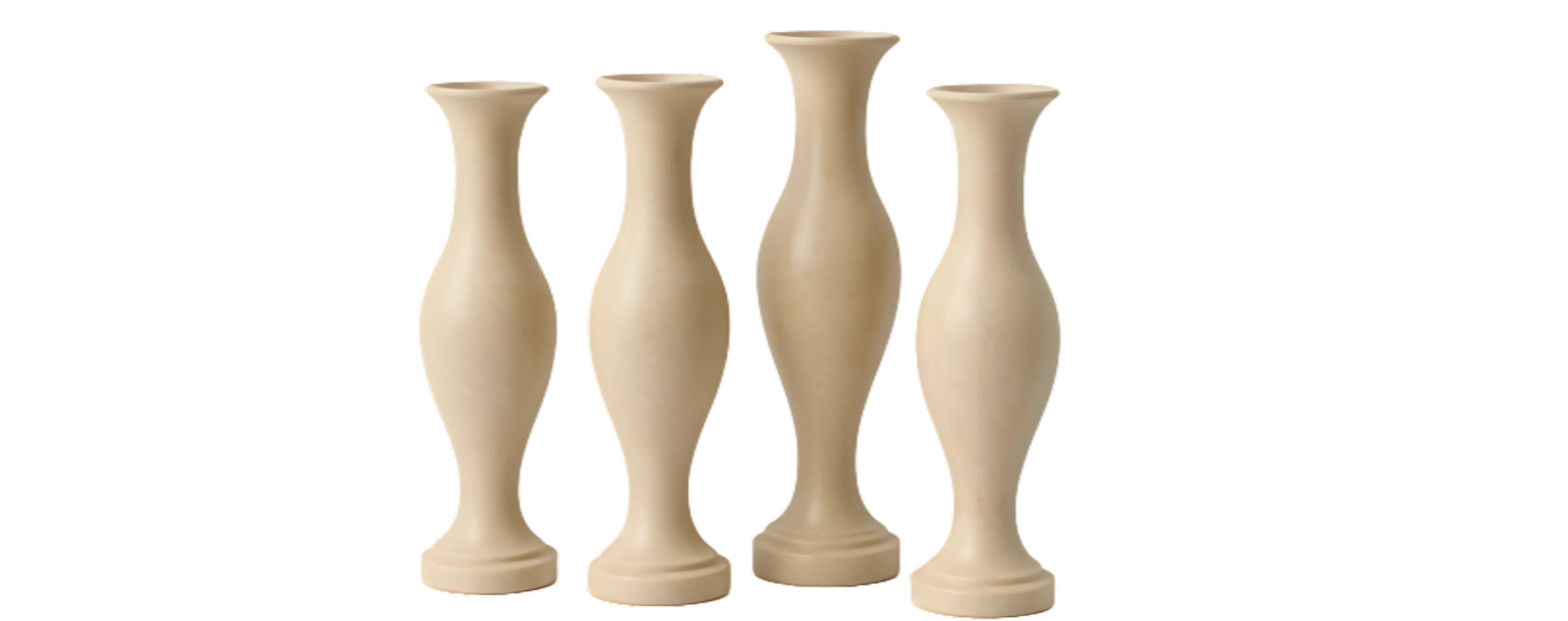

This vertical stone profiling machine processes ornamental elements with 4-workpiece simultaneous capability. After parameter setup, one operator can manage multiple machines, significantly boosting production efficiency. The machine handles granite, marble, limestone, sandstone, travertine, engineered stone, terrazzo and concrete. It transforms these materials into decorative elements including stair balusters, handrail, fence spindles, vases, decorative pillars and fountain risers.

Compatible Materials & Products

Volume production of identical balusters, railing elements and small turned stone pieces in four-workpiece cycles.

Specs and options

Specifications customizable upon request.

Model	Unit	LGFX - LS4
Cutting length	mm	200 - 1200 (Export type 1000)
Max.cutting diameter	mm	300/2pcs、220/4pcs
Max.diameter of blade	mm	440/470
Main motor power	kw	11/2 pcs
Total power	kw	29.37
Water consumption	m³/h	3
Approximate weight	t	4.2
Overall dimensions(LxWxH)	m	2.4x2.2x2.75 (Export type)

The LGFX-LS4 vertical baluster profiling machine turns single-piece turning into batch production: four workstations process up to eight identical balusters per cycle in an isosceles-trapezoid frame that distributes cutting force evenly — the volume configuration for repeated baluster and railing orders.

Real Profiling Performance & Key Metrics

Per Cycle

Multi-workpiece cycles turn repeated baluster orders into batch production: several blanks load, cut and unload together, multiplying per-shift output on identical products.

Twin Spindle Power

Two 11 kW spindles (29.37 kW total) keep every station cutting at production feed rates through marble, granite, travertine and concrete.

Compact Production Footprint

The vertical multi-station layout concentrates batch production into 2.4 × 2.2 m of floor — a production cell that fits where a horizontal line would not.

Multi-Workpiece Vertical Layout

Four workstations process multiple blanks in the same cycle, turning repeated baluster orders into batch production instead of one-piece-at-a-time turning — the per-piece labor cost drops by design, not by working faster.

Isosceles-Trapezoid Frame

The isosceles-trapezoid frame distributes cutting reaction symmetrically across all stations, preventing one side of the machine from carrying more load and reducing surface ripple across the batch — the vibration asymmetry that plagues unbalanced multi-head designs.

PLC or CNC Control Choice

Factories running one repeat profile can choose PLC for simple one-click cycles; customers with more product variation can retain full CNC. Control complexity is matched to the business model instead of forcing every buyer into the same system.

FAQs

Common Questions About DINOSAW Baluster Profiling Machines

Global Leader in CNC Machinery & Diamond Tools Manufacturing

Real Profiling Performance & Key Metrics

CE Certification

100+ Tech Patents

ISO 9001:2015

DINOSAW goes beyond merely complying with international engineering standards—we actively lead their formulation. As the principal drafter of key industry benchmarks for Stone Multi-Wire Saw Machines, CNC Wire Saw Machines, and Bridge Saws, we define the rules of precision manufacturing. Backed by ISO 9001, CE certification, and 100+ technology patents, our products guarantee exceptional durability and safety in the most demanding high-load environments.

Proven Expertise & Global Applications

75+

Countries Served Worldwide

20+

Industry machinery expertise

Trusted by clients in over 75 countries, DINOSAW delivers lifecycle quality traceability and specialized technical support across 20+ machinery sectors. From traditional mining and stone processing to high-precision manufacturing (semiconductors, quartz glass) and specialized fields like nuclear decommissioning, our comprehensive solutions consistently meet the world's most rigorous operational requirements.

Complete Production Solutions & Equipments

Choose equipment combinations for your product needs to establish efficient automated production lines and maximize profitability.

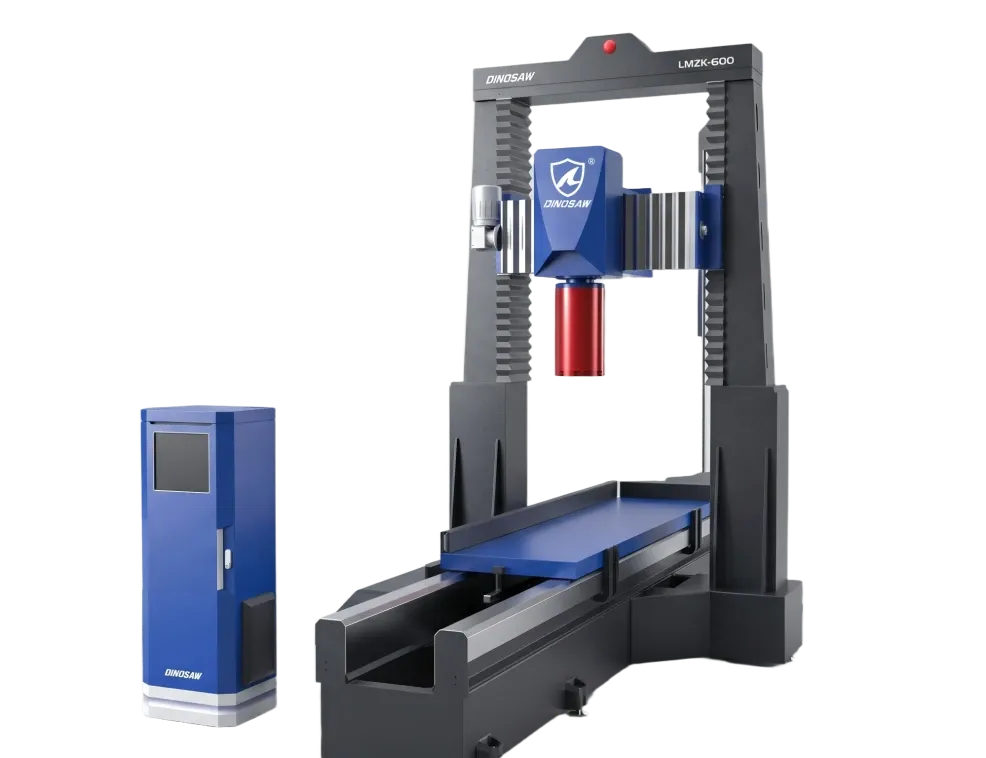

First step in baluster production workflow. Extracts cylindrical stone blanks from raw blocks with minimal waste. Positioning system ensures accurate dimensions and consistent quality before profiling. Works with granite, marble, and limestone.

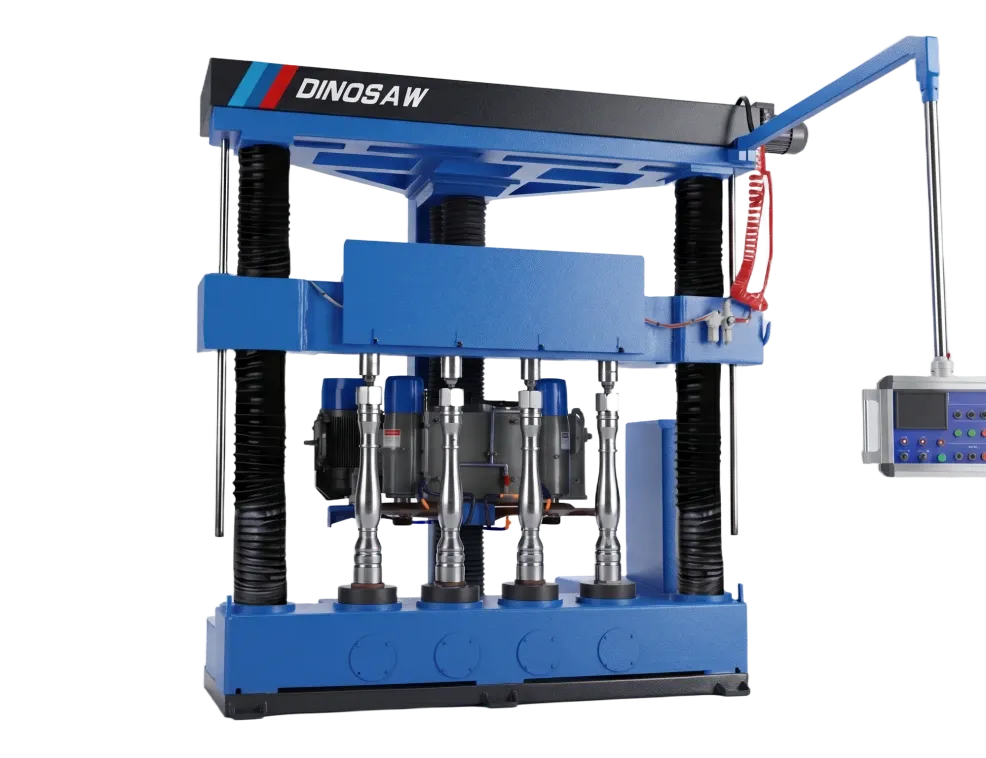

Creates detailed decorative balusters with consistent quality. Multi-head design carves multiple identical pieces simultaneously, ensuring perfect set matching. Reproduces complex floral and geometric patterns with precision.

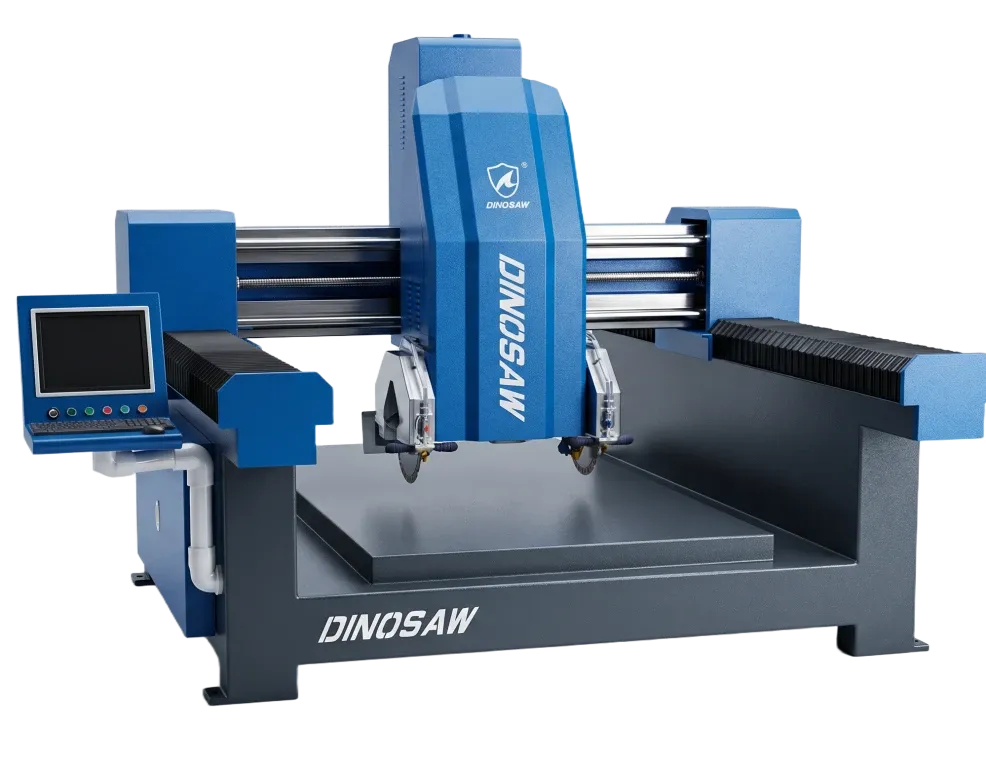

Produces square balusters, decorative borders and window frames in a single setup. Combines cutting and grinding functions, eliminating manual refinishing. CNC control ensures dimensional accuracy while integrated grinding delivers installation-ready surfaces.
